Toyota Prius

2000-05 → 2003-08 · chassis NHW11 · catalogue 222210 · Europe

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

15 part groups · 2 illustrations

Illustrations

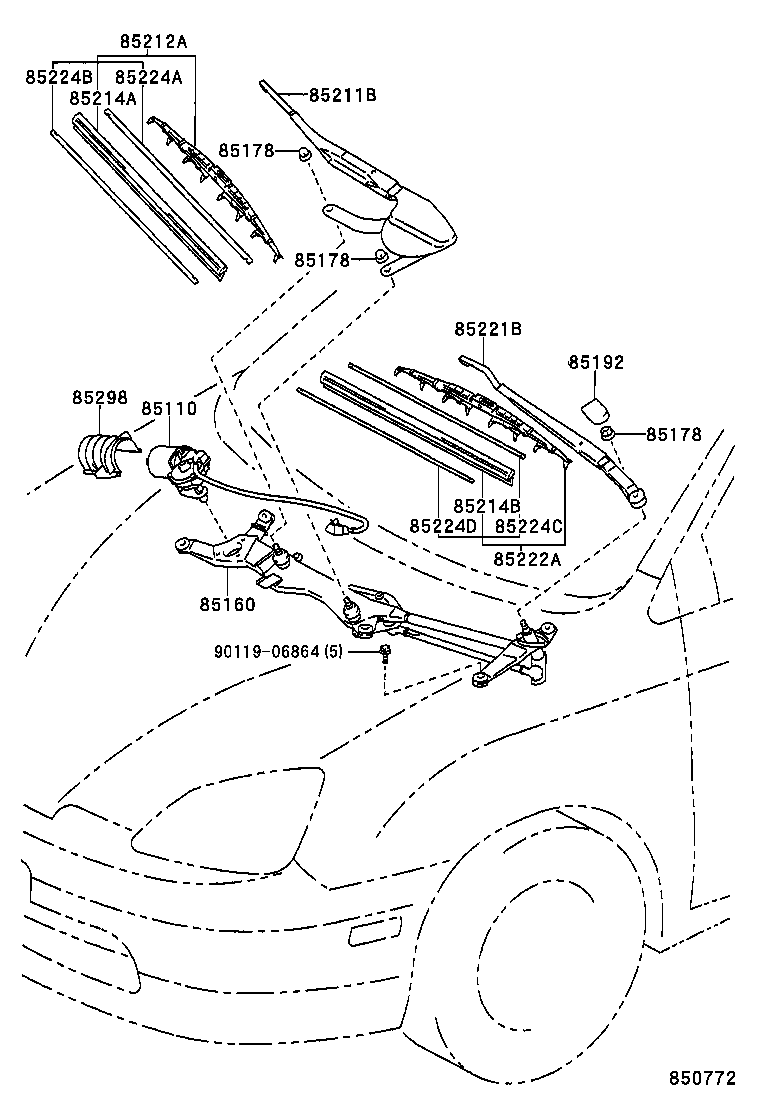

Figure 850771 850771 2000-05 → — Figure 850772 850772 2000-05 → —

Part groups

PNCDescription
85110 Motor Assy, Windshield Wiper
85160 Link Assy, Windshield Wiper
85178 Nut (FOR FRONT WIPER ARM SETTING)
85192 Cover, Windshield Wiper Arm
85211B Arm, Front Wiper, RH
85212A Blade, FR Wiper, RH
85214A Rubber, Wiper, RH
85214B Rubber, Wiper, LH
85221B Arm, Front Wiper, LH
85222A Blade, FR Wiper, LH
85224A Plate, Wiper Rubber Backing, NO.1
85224B Plate, Wiper Rubber Backing, NO.2
85224C Plate, Wiper Rubber Backing, NO.3
85224D Plate, Wiper Rubber Backing, NO.4
85298 Cover, Wiper Motor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
