Toyota Prius
2000-05 → 2003-08 · chassis NHW11 · catalogue 222210 · Europe
Discontinued model
Data version 2004-01

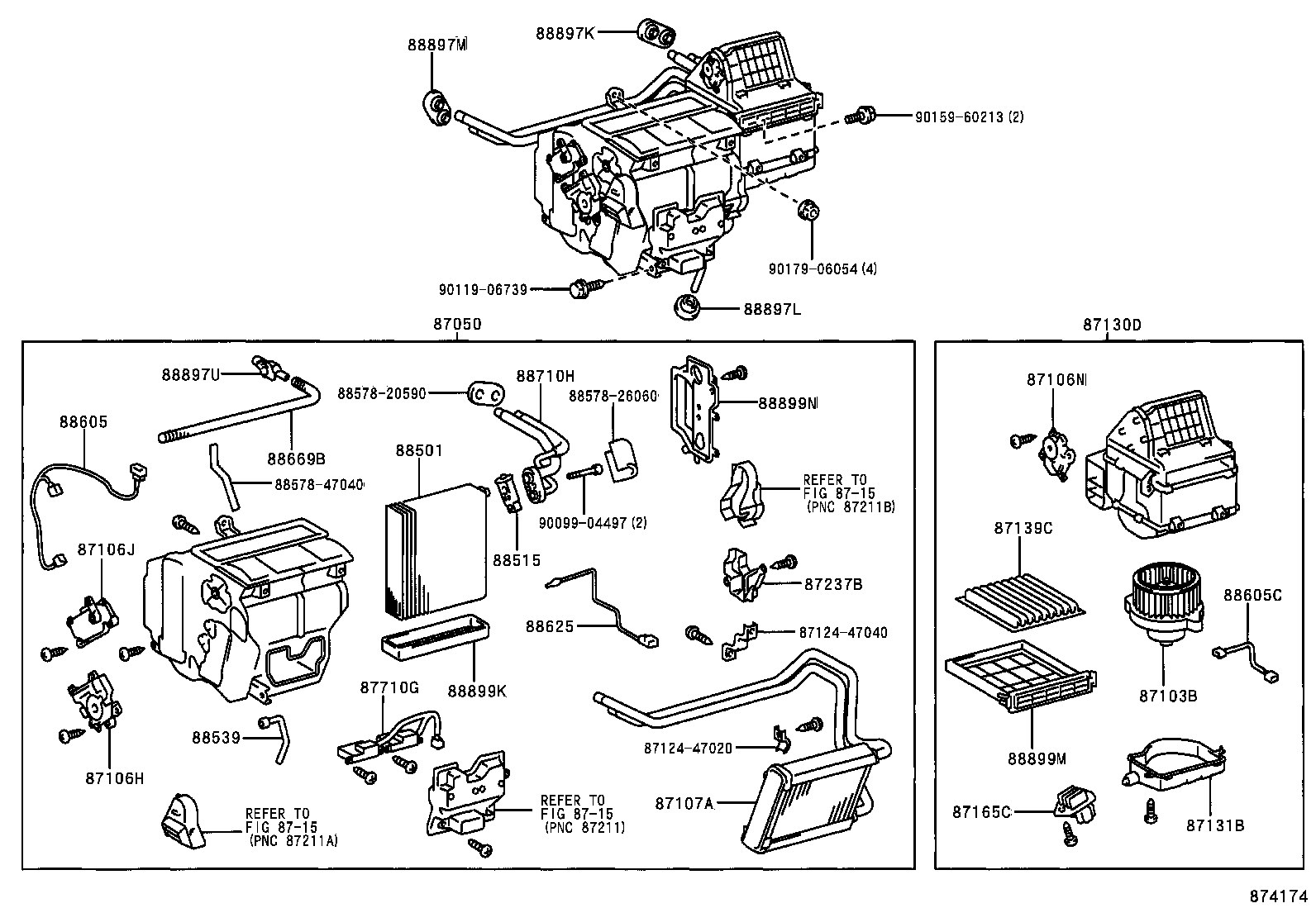

Heating & Air Conditioning - Cooler Unit
27 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87050 | Radiator Assy, Air Conditioner |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87106H | Servo Sub-assy, Damper(FOR AIRMIX) |
| 87106J | Servo Sub-assy, Damper(FOR MODE) |
| 87106N | Servo Sub-assy, Damper(FOR RECIRCULATION) |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87130D | Blower Assy |
| 87131B | Case, Heater Blower |
| 87139C | Filter, Clean Air |
| 87165C | Control, Blower Motor |
| 87237B | Cover, Heater Piping |
| 87710G | Quick Heater Assy |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88515 | Valve, Cooler Expansion |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88605 | Harness Sub-assy, Cooler Wiring, NO.1 |
| 88605C | Harness Sub-assy, Cooler Wiring, NO.2 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88669B | Hose, Cooler Air |
| 88710H | Tube & Accessory Assy, Air Conditioner |
| 88897K | Grommet, (FOR COOLER PIPE) |
| 88897L | Grommet (FOR DRAIN HOSE) |
| 88897M | Grommet (FOR HEATER PIPE) |
| 88897U | Pipe, Aspirator |
| 88899K | Plate, Cover |
| 88899M | Plate, Cover(FOR AIR FILTER) |
| 88899N | Plate, Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
