Toyota Prius

2000-05 → 2003-08 · chassis NHW11 · catalogue 222210 · Europe

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

25 part groups · 3 illustrations

Illustrations

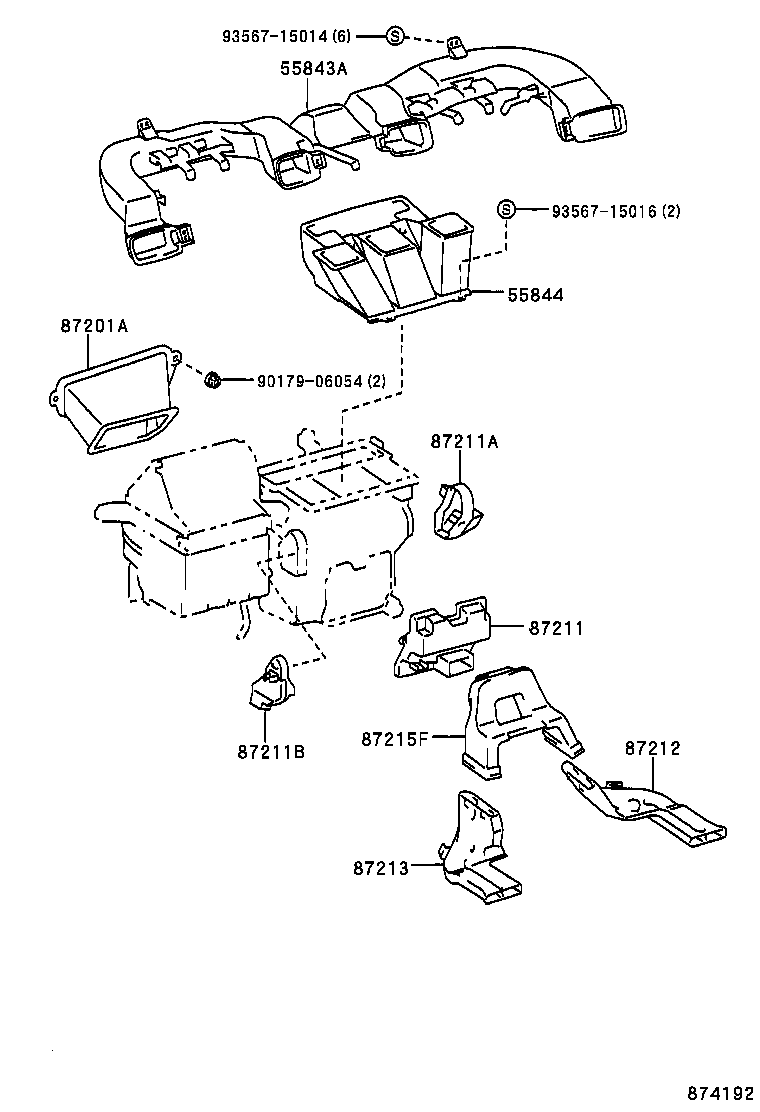

Figure 874197 874197 2000-05 → — Figure 874192 874192 2000-05 → — Figure 872273A 872273A 2000-05 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55905A Knob, Heater Control
55905M Knob Sub-assy, Control
55912A Housing, Heater Control
55930 Control Assy, Center Cluster Module
55935A Circuit, Center Cluster Module
55936D Blub, Center Cluster Module Switch
55937C Knob, Center Cluster Module
55937D Knob, Center Cluster Module, NO.1
55937E Knob, Center Cluster Module, NO.2
55937F Knob, Center Cluster Module, NO.3
55938C Lens, Center Cluster Module
81942A Sheet, Heater Control Name, NO.1
87201A Duct Sub-assy, Air
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215F Duct, Air, Rear NO.3
88625H Thermistor, Cooler (SOLAR SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88650B Amplifier Assy, Airconditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
