Toyota Prius

2003-08 → 2009-03 · chassis NHW20 · catalogue 222220 · Europe

Supported model Data version 2009-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

9 part groups · 2 illustrations

Illustrations

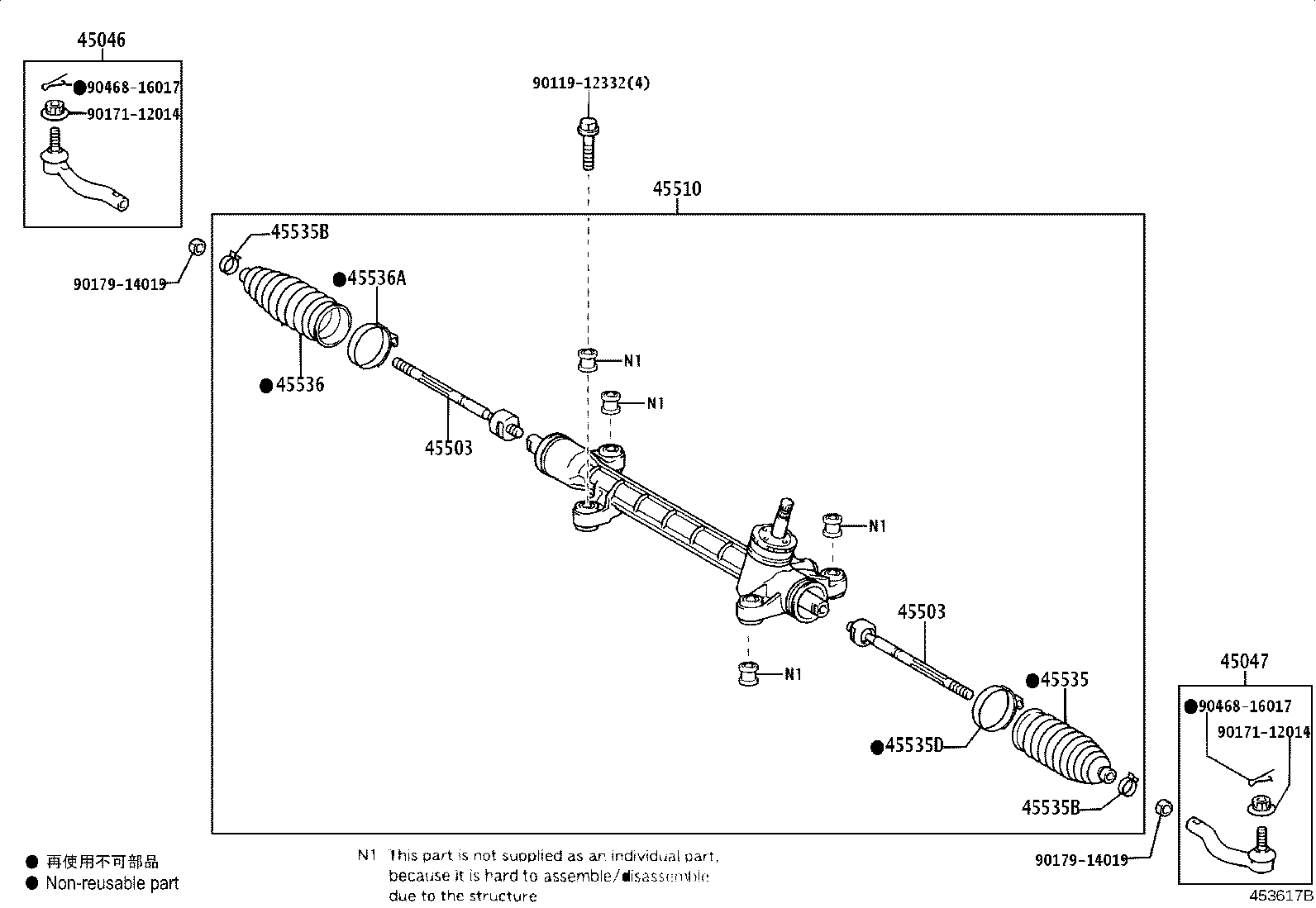

Figure 453616B 453616B 2003-08 → — Figure 453617B 453617B 2003-08 → —

Part groups

PNCDescription
45046 End Sub-assy, Tie Rod, RH
45047 End Sub-assy, Tie Rod, LH
45503 End Sub-assy, Steering Rack
45510 Gear Assy, Steering
45535 Boot, Steering Rack, NO.1
45535B Clip(FOR STEERING RACK BOOT)
45535D Clamp(FOR STEERING RACK BOOT NO.1)
45536 Boot, Steering Rack, NO.2
45536A Clamp(FOR STEERING RACK BOOT NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
