Toyota Prius
2003-08 → 2009-03 · chassis NHW20 · catalogue 222220 · Europe
Supported model
Data version 2009-10

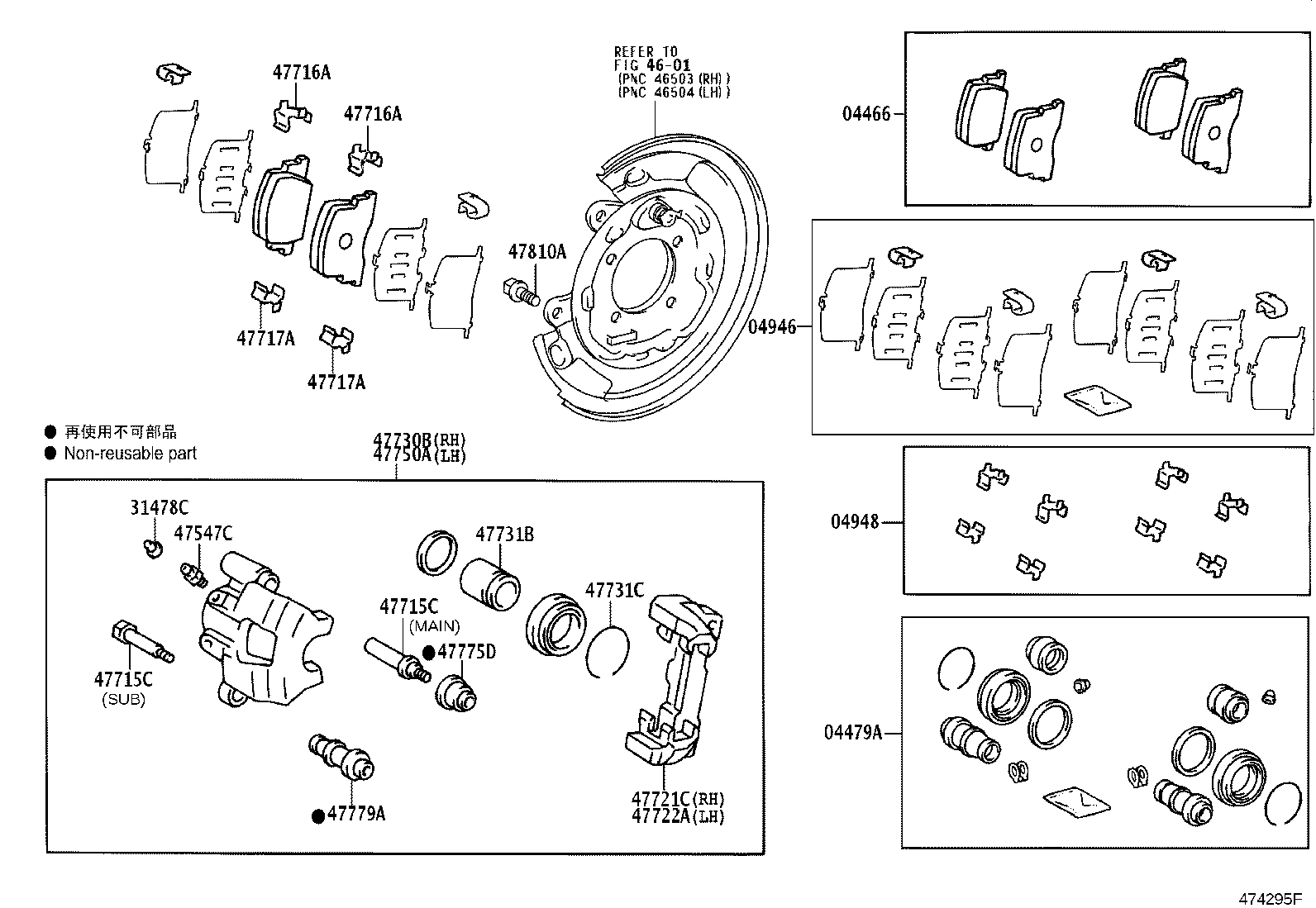

Rear Disc Brake Caliper & Dust Cover
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04466 | Pad Kit, Disc Brake, Rear |
| 04479A | Cylinder Kit, Disc Brake, Rear |
| 04946 | Shim Kit, Anti Squeal(FOR REAR DISC BRAKE) |
| 04948 | Fitting Kit, Disc Brake, Rear |
| 31478C | Cap, Bleeder Plug(FOR REAR DISC BRAKE) |
| 47547C | Plug, Bleeder(FOR REAR DISC BRAKE) |
| 47715C | Pin, Cylinder Slide(FOR REAR DISC BRAKE) |
| 47716A | Plate, Pad Support, NO.1(FOR REAR DISC BRAKE) |
| 47717A | Plate, Pad Support, NO.2(FOR REAR DISC BRAKE) |
| 47721C | Mounting, Rear Disc Brake Cylinder, RH |
| 47721E | Collar(FOR REAR DISC BRAKE CYLINDER MOUNTING) |
| 47722A | Mounting, Rear Disc Brake Cylinder, LH |
| 47730B | Cylinder Assy, Rear Disc Brake, RH |
| 47731B | Piston, Rear Disc Brake |
| 47731C | Ring, Set(FOR REAR DISC BRAKE PISTON) |
| 47743B | Spring, Anti-rattle, NO.2(FOR REAR DISC BRAKE) |
| 47748D | Spring, Anti-rattle, NO.1(FOR REAR DISC BRAKE) |
| 47748E | Pin, W/Hole(FOR REAR DISC BRAKE) |
| 47748F | Clip(FOR REAR DISC BRAKE) |
| 47750A | Cylinder Assy, Disc Brake, Rear LH |
| 47775D | Boot, Bush Dust(FOR REAR DISC BRAKE) |
| 47779A | Bush, Cylinder Slide, NO.2(FOR REAR DISC BRAKE) |
| 47810A | Bolt, Hexagon(FOR REAR CALIPER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
