Toyota Prius

2003-08 → 2009-03 · chassis NHW20 · catalogue 222220 · Europe

Supported model Data version 2009-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

21 part groups · 2 illustrations

Illustrations

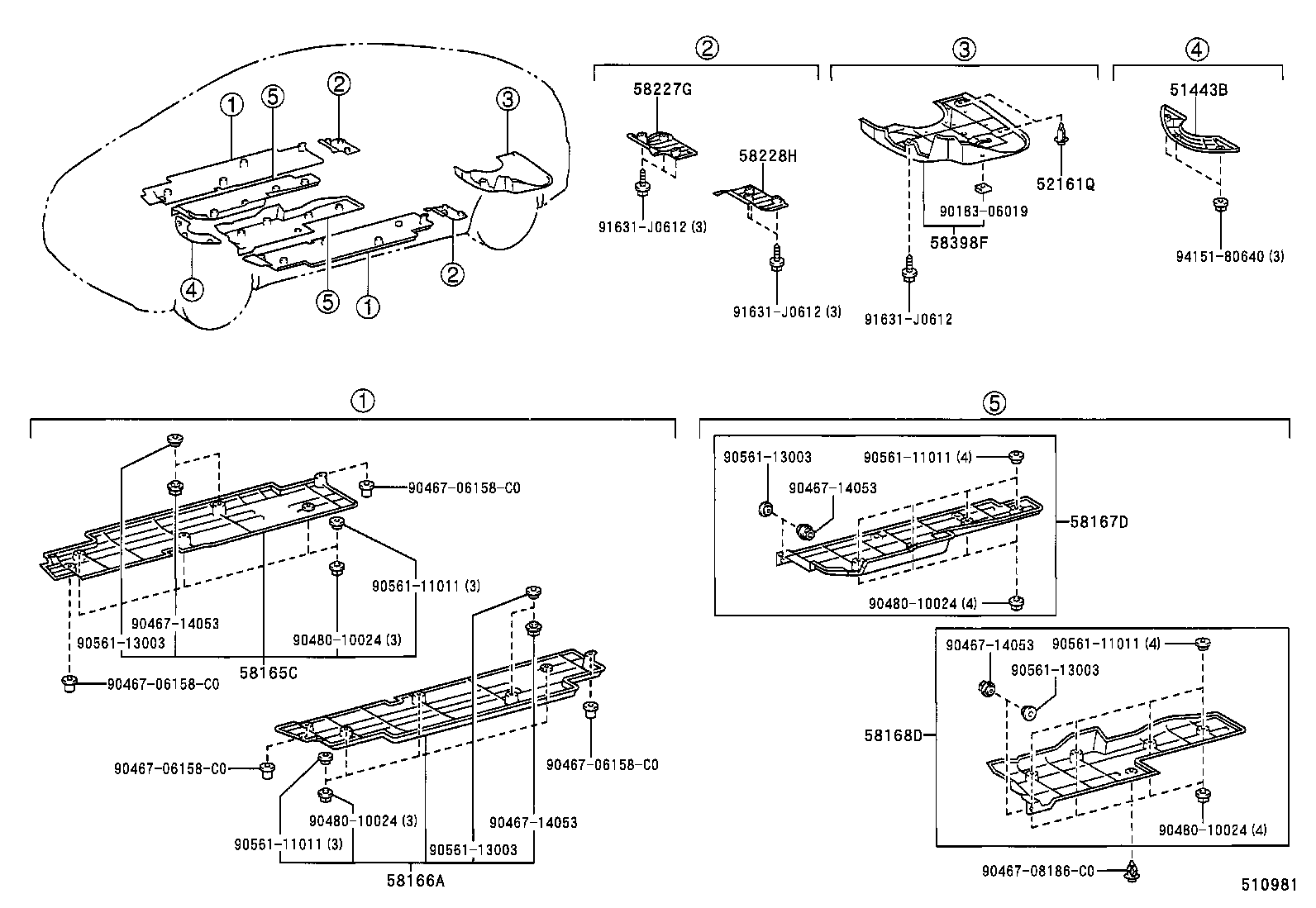

Figure 510951J 510951J 2003-08 → — Figure 510981 510981 2003-08 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51441C Cover, Engine Under, RH
51441M Nut
51442C Cover, Engine Under, LH
51443B Cover, Engine Under, NO.3
51447D Cover, Engine Under, NO.4 Center
51451D Screw, NO.1
51451E Screw, NO.2
51451J Bolt, NO.1
51451K Grommet, Screw, NO.1
51454 Clip
51967B Hook, Transport, Rear RH
51968B Hook, Transport, Rear LH
52161Q Piece, Front Bumper
58165C Cover, Front Floor, RH
58166A Cover, Front Floor, LH
58167D Cover, Front Floor, Center RH
58168D Cover, Front Floor, Center LH
58227G Plate, Floor Panel Side, RH
58228H Plate, Floor Panel Side, LH
58398F Cover, Floor Under, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
