Toyota Prius

2003-08 → 2009-03 · chassis NHW20 · catalogue 222220 · Europe

Supported model Data version 2009-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

28 part groups · 2 illustrations

Illustrations

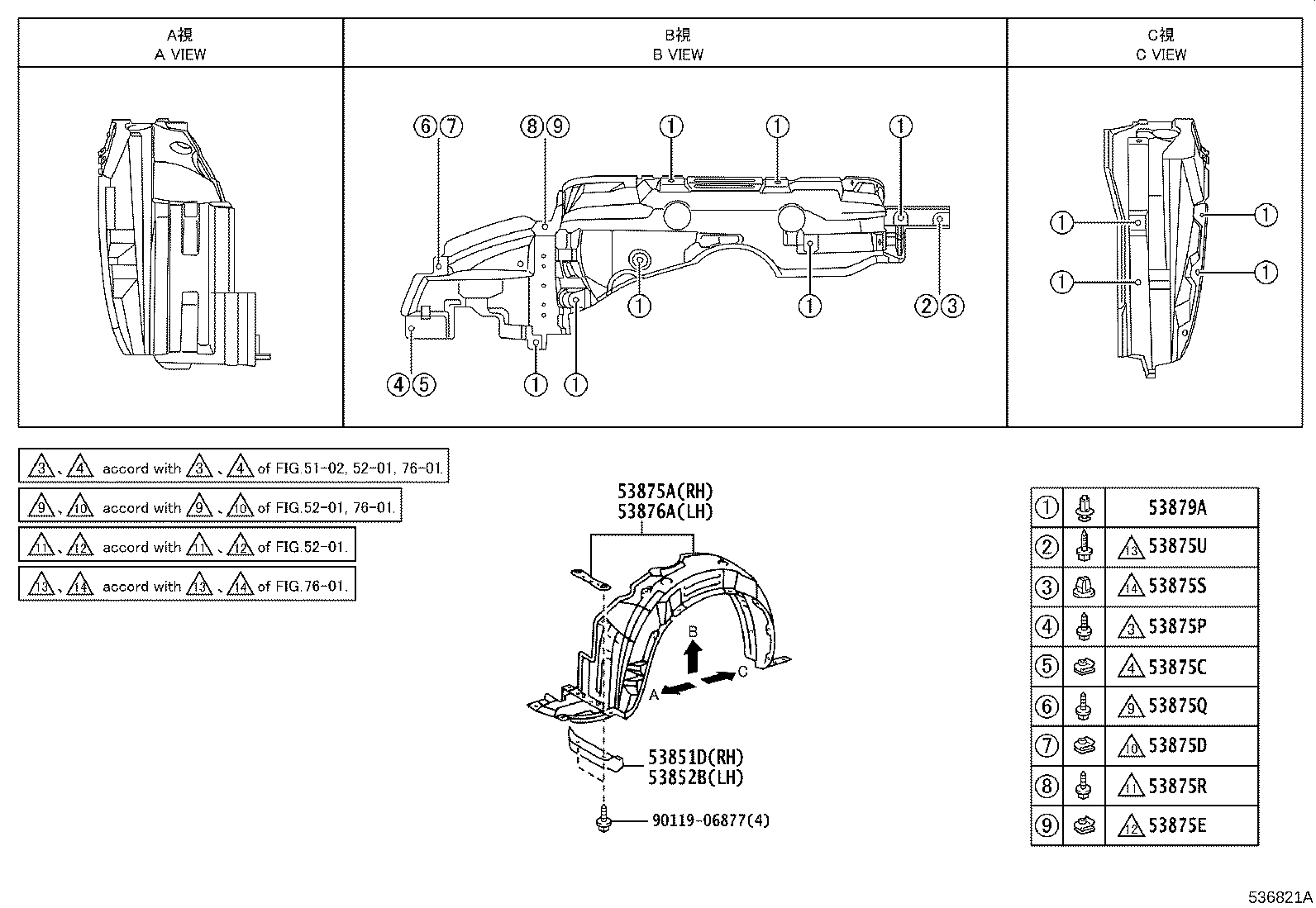

Figure 532499F 532499F 2003-08 → — Figure 536821A 536821A 2003-08 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53337B Bracket, Hood Stay
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53383 Seal, Hood TO Cowl Top
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53827B Protector, Front Fender Side Panel
53828B Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53866 Seal, Front Fender TO Cowl Side, RH
53867 Seal, Front Fender TO Cowl Side, LH
53867A Retainer, Front Fender
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875D Clip, Front Fender Liner, NO.2
53875E Clip, Front Fender Liner, NO.3
53875P Screw, NO.1
53875Q Screw, NO.2
53875R Screw, NO.3
53875S Grommet, NO.1
53875U Screw, NO.4
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53882F Seal, Front Fender
55739G Stopper, Hood
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
