Toyota Prius
2003-08 → 2009-03 · chassis NHW20 · catalogue 222220 · Europe
Supported model
Data version 2009-10
Instrument Panel & Glove Compartment
43 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|

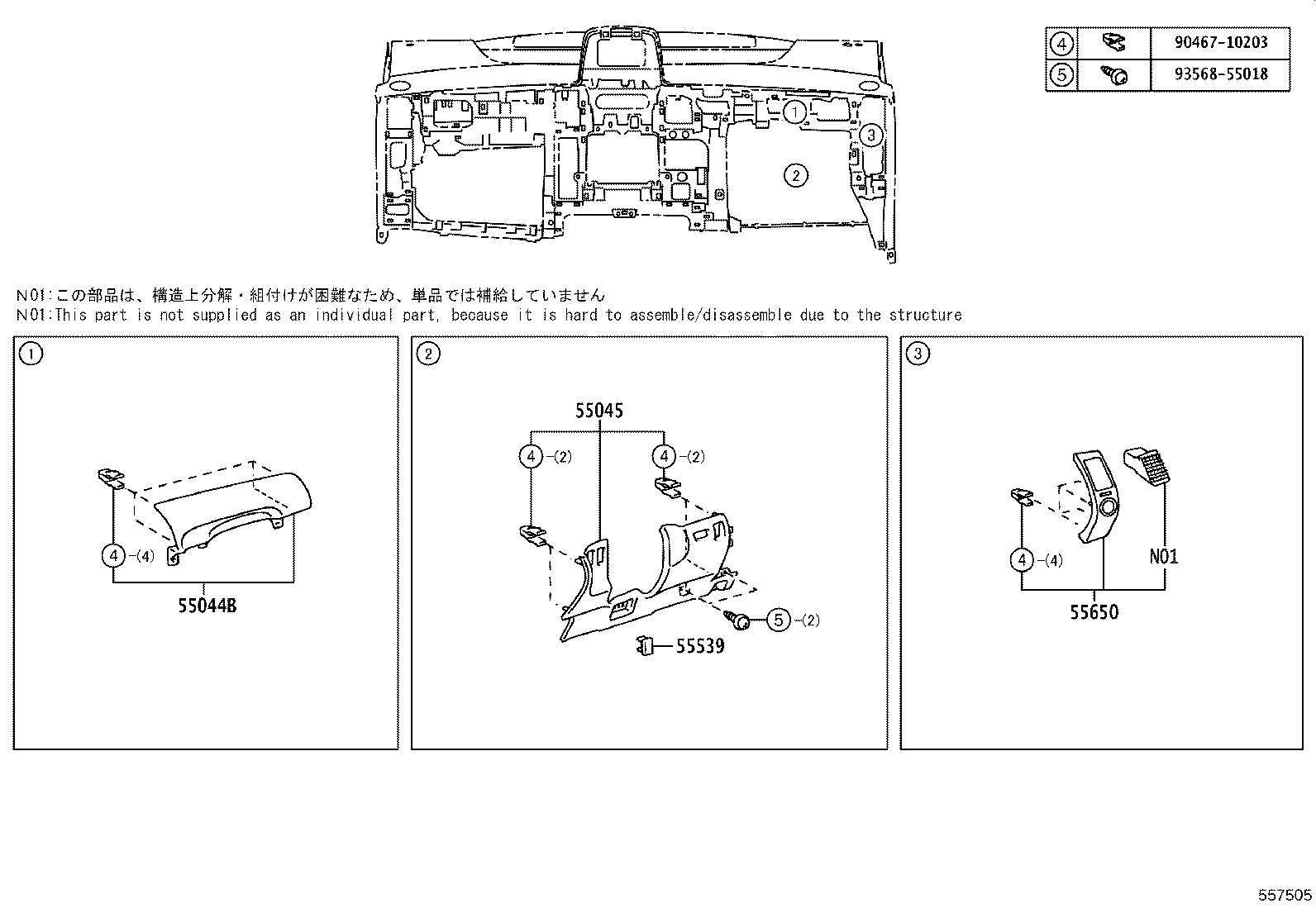

| 55044B | Panel Sub-assy, Instrument Panel Finish, Upper |
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55301 | Panel Sub-assy, Instrument |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55349A | Cushion, Instrument Panel |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55356C | Cushion, Instrument Panel, NO.2 |
| 55357B | Cushion, Instrument Panel, NO.3 |
| 55358K | Cushion, Instrument Panel, NO.4 |
| 55359D | Cushion, Instrument Panel, NO.5 |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55391 | Cushion, Instrument Panel, Lower NO.1 |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55414A | Panel, Instrument Cluster Finish, End |
| 55420A | Panel Assy, Instrument Cluster Finish, Center |
| 55423E | Cushion, Center Cluster, NO.1 |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55434D | Clip, Instrument Panel Finish, Lower Center |
| 55464C | Insert, Instrument Panel Lower Pad, RH |
| 55503B | Cushion(FOR GLOVE COMPARTMENT) |
| 55510A | Cushion(FOR GLOVE COMPARTMENT DOOR) |
| 55511 | Door, Glove Compartment |
| 55512A | Plate, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55539 | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55550 | Door Assy, Glove Compartment |
| 55560A | Lock Assy, Glove Compartment Door |
| 55569 | Cover, Glove Compartment Door Lock |
| 55590 | Plate Assy, Grove Compartment Door Lock Striker |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680A | Register Assy, Instrument Panel, NO.4 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 82140 | Wire Assy, Instrument Panel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
