Toyota Prius

2003-08 → 2009-03 · chassis NHW20 · catalogue 222220 · Europe

Supported model Data version 2009-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

23 part groups · 3 illustrations

Illustrations

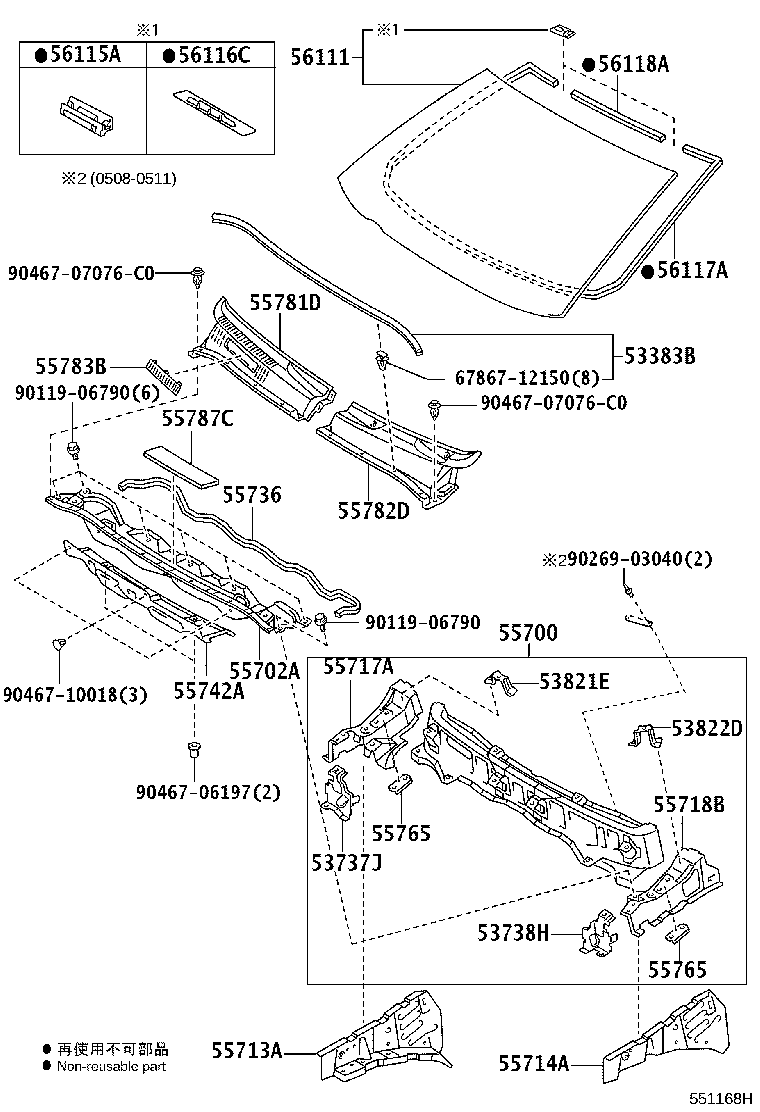

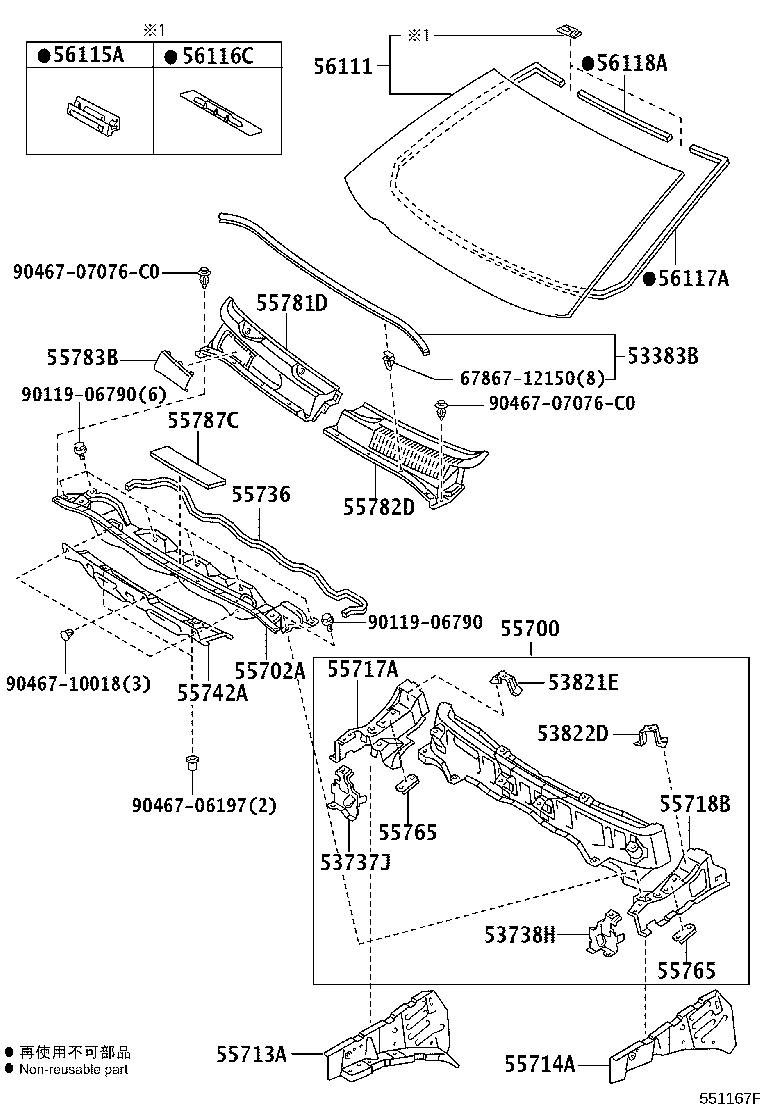

Figure 551166G 551166G 2003-08 → — Figure 551167F 551167F 2003-08 → — Figure 551168H 551168H 2003-08 → —

Part groups

PNCDescription
53383B Seal, Hood TO Cowl Top
53737J Plate, Front Apron TO Cowl Side Member, RH
53738H Plate, Front Apron TO Cowl Side Member, LH
53821E Bracket, Front Fender, Rear RH
53822D Bracket, Front Fender, Rear LH
55700 Panel Assy, Front
55702A Panel Sub-assy, Cowl Top, Outer Front
55713A Panel, Cowl Top Side, RH
55714A Panel, Cowl Top Side, LH
55717A Panel, Cowl Top Side, Inner RH
55718B Panel, Cowl Top Side, Inner LH
55736 Seal, Water Guard Plate
55742A Sheet, Cowl Top Insulator
55765 Bracket, Hood Damper Mounting
55781D Louver, Cowl Top Ventilator, RH
55782D Louver, Cowl Top Ventilator, LH
55783B Louver, Cowl Top Ventilator, Center NO.1
55787C Insulator, Cowl Top Panel, NO.1
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
56118A Dam, Window Glass Adhesive, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
