Toyota Prius
2003-08 → 2009-03 · chassis NHW20 · catalogue 222220 · Europe
Supported model
Data version 2009-10

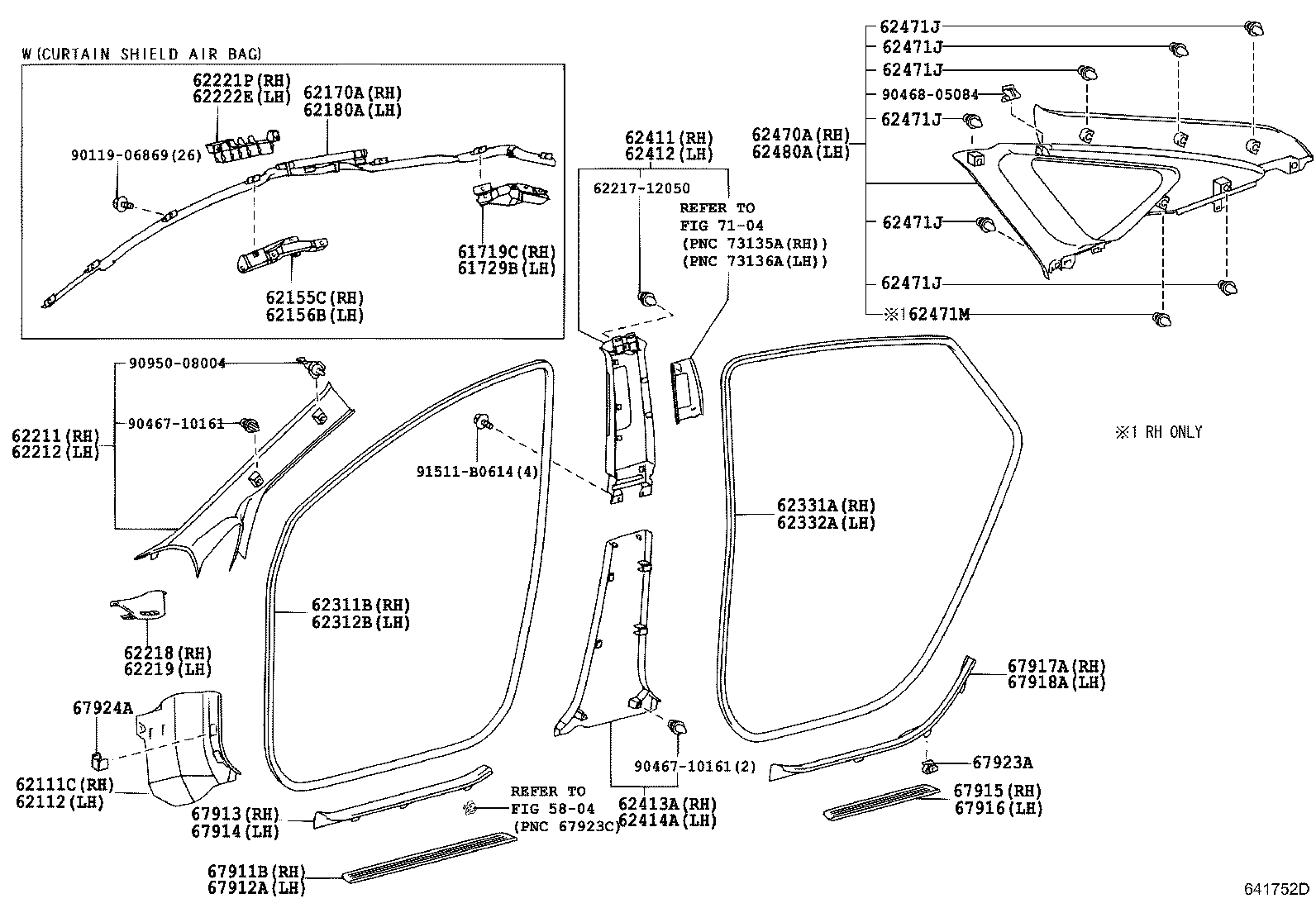

Inside Trim Board & Door Opening Trim Moulding
36 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 61719C | Bracket, Roof Side Rail, RH |
| 61729B | Bracket, Roof Side Rail, LH |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62155C | Bracket, Curtain Shield Airbag, RH |
| 62156B | Bracket, Curtain Shield Airbag, LH |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62218 | Piece, Front Pillar Garnish Corner, RH |
| 62219 | Piece, Front Pillar Garnish Corner, LH |
| 62221P | Spacer, Front Pillar, NO.1 RH |
| 62222E | Spacer, Front Pillar, NO.1 LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332A | Weatherstrip, Rear Door Opening Trim, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62470A | Garnish Assy, Roof Side, Inner RH |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62471M | Clip |
| 62480A | Garnish Assy, Roof Side, Inner LH |
| 67911B | Plate, Front Door Scuff, Outside, RH |
| 67912A | Plate, Front Door Scuff, Outside LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67915 | Plate, Rear Door Scuff, Outside RH |
| 67916 | Plate, Rear Door Scuff, Outside LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
| 67923A | Clamp, Door Scuff Plate, NO.1 |
| 67924A | Clamp, Door Scuff Plate, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
