Toyota Prius
2003-08 → 2009-03 · chassis NHW20 · catalogue 222220 · Europe
Supported model
Data version 2009-10

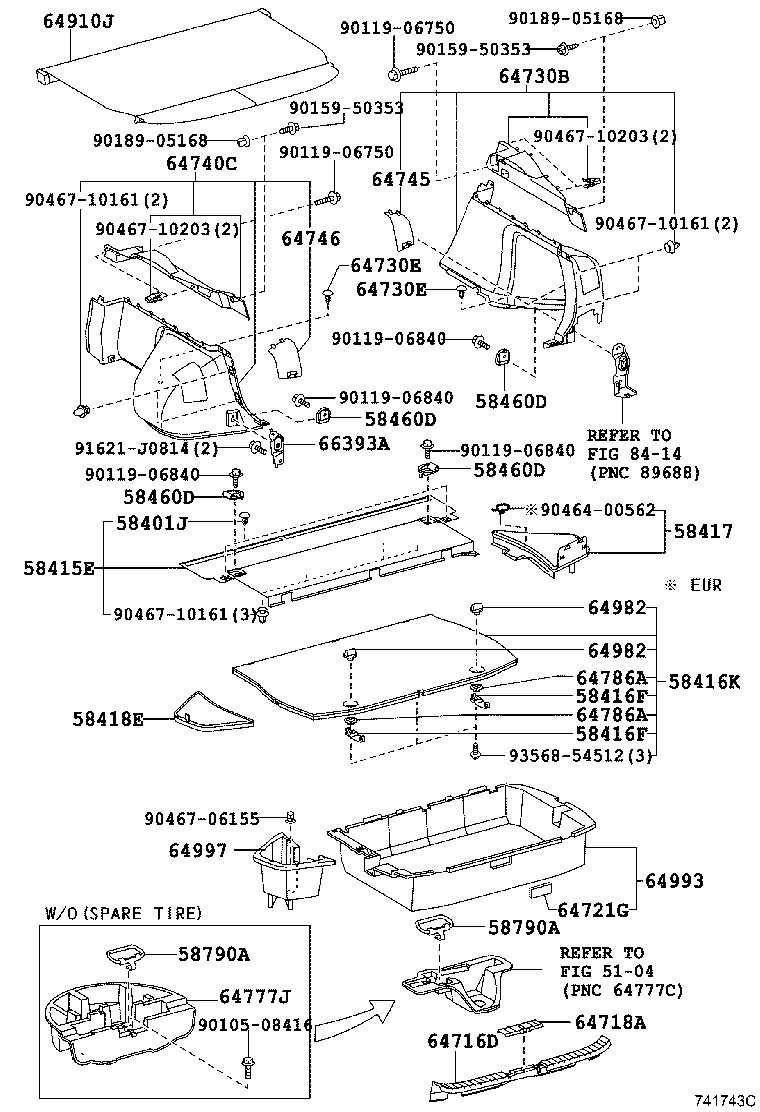

Deck Board & Deck Trim Cover
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58401J | Clip(FOR DECK BOAD) |
| 58415E | Board, Rear Floor, NO.1 |
| 58416F | Bracket, Deck Board, NO.1 |
| 58416K | Board, Rear Floor, NO.2 |
| 58417 | Board, Rear Floor, NO.3 |
| 58418E | Board, Rear Floor, NO.4 |
| 58460D | Striker Assy, Luggage Hold Belt |
| 58790A | Carrier Assy, Jack |
| 64716D | Cover, Deck Trim, Rear |
| 64718A | Cover, Deck Trim Service Hole |
| 64721G | Cover, Deck Trim, NO.1 |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64730E | Clip(FOR DECK TRIM SIDE BOARD) |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64745 | Cover, Rear Combination Lamp Service, RH |
| 64746 | Cover, Rear Combination Lamp Service, LH |
| 64777J | Cushion, Spare Wheel |
| 64786A | Plate, Jack Cover |
| 64910J | Cover Assy, Tonneau |
| 64982 | Knob, Cover |
| 64993 | Box, Deck Floor, Rear |
| 64997 | Box, Deck Floor, LH |
| 66393A | Bracket, Rope Hook, NO.1 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
