Toyota Prius

2003-08 → 2009-03 · chassis NHW20 · catalogue 222220 · Europe

Supported model Data version 2009-10

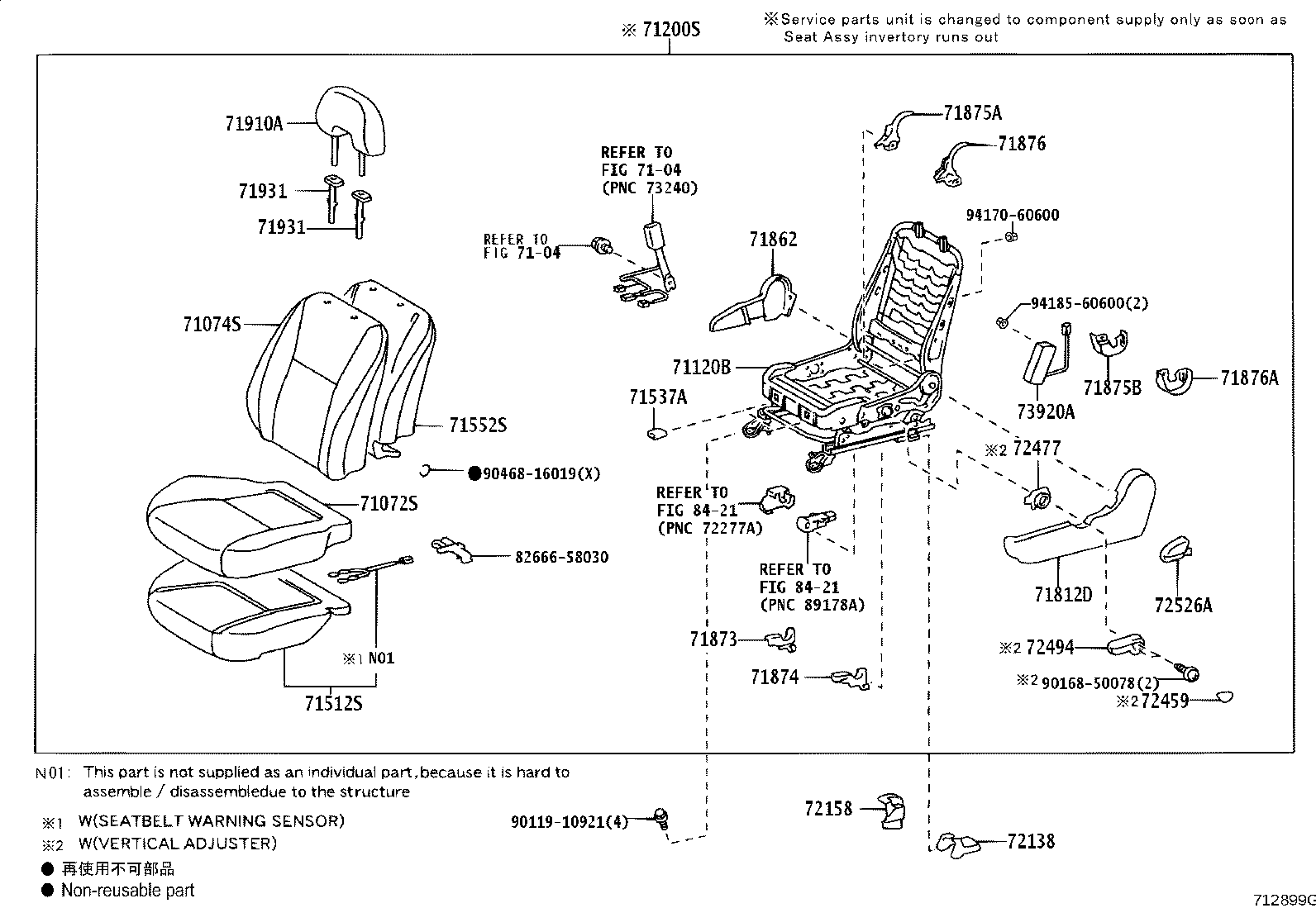

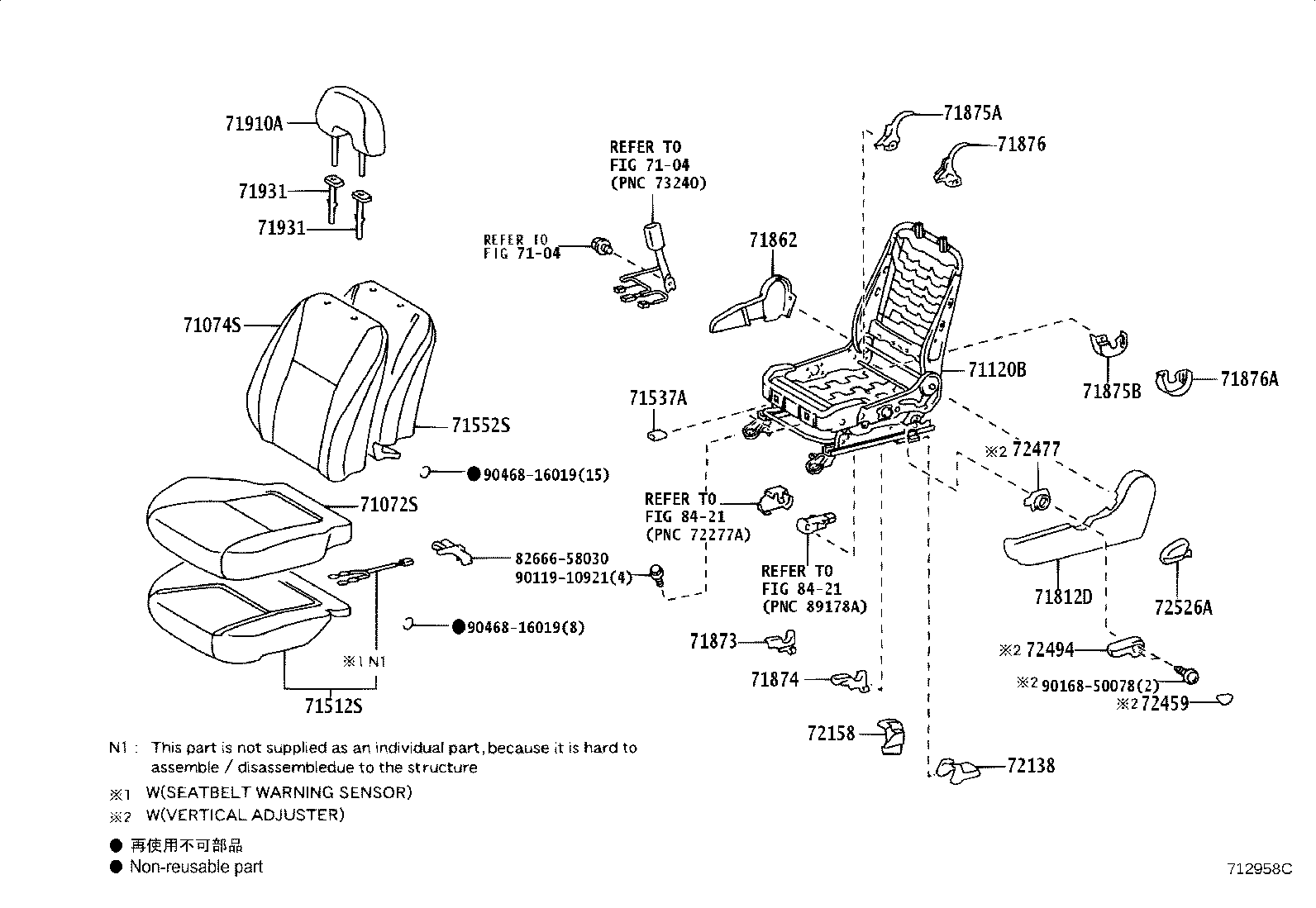

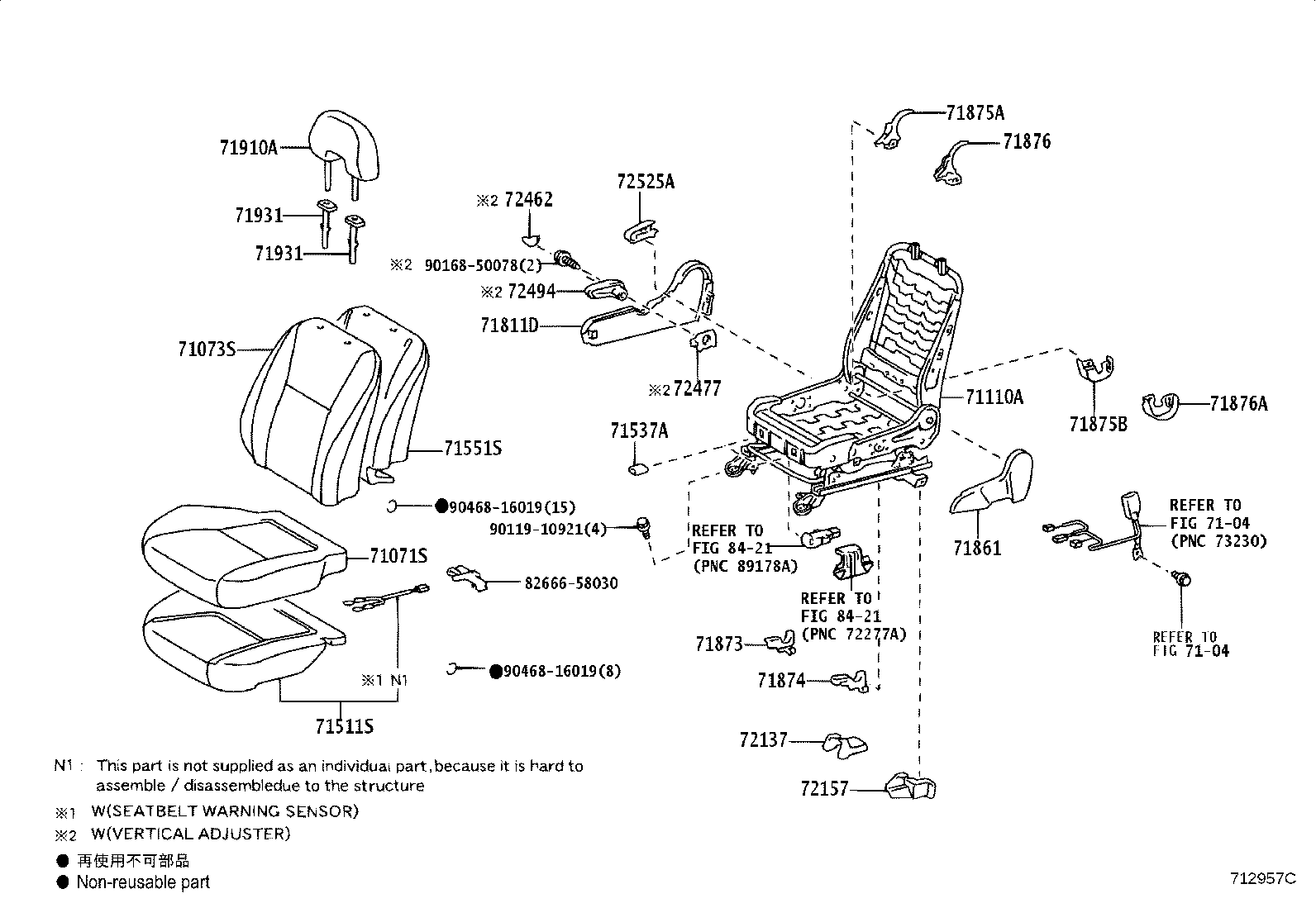

Front Seat & Seat Track

37 part groups · 4 illustrations

PNC	Description
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71100S	Seat Assy, Front RH
71110A	Frame Assy, Front Seat W/Adjuster, RH
71120B	Frame Assy, Front Seat W/Adjuster, LH
71200S	Seat Assy, Front LH
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A	Protector, Front Seat Cushion
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71873	Shield, Front Seat Cushion, Lower RH
71874	Shield, Front Seat Cushion, Lower LH
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71876	Cover, Reclining Adjuster Inside, LH
71876A	Cover, Reclining Adjuster Inside, LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
72137	Cover, Seat Track, Outer RH
72138	Cover, Seat Track, Outer LH
72157	Cover, Seat Track Bracket, Inner
72158	Cover, Seat Track Bracket, Inner LH
72459	Cap, Vertical Seat Adjuster Knob
72462	Cover, Vertical Adjuster RH
72477	Spacer, Vertical Adjuster
72494	Handle, Vertical Adjusting, RH
72525A	Handle, Reclining Adjuster Release, RH
72526A	Handle, Reclining Adjuster Release, LH
73910A	Airbag Assy, Front Seat, RH
73920A	Airbag Assy, Front Seat, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
