Toyota Prius

2003-08 → 2009-03 · chassis NHW20 · catalogue 222220 · Europe

Supported model Data version 2009-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

17 part groups · 2 illustrations

Illustrations

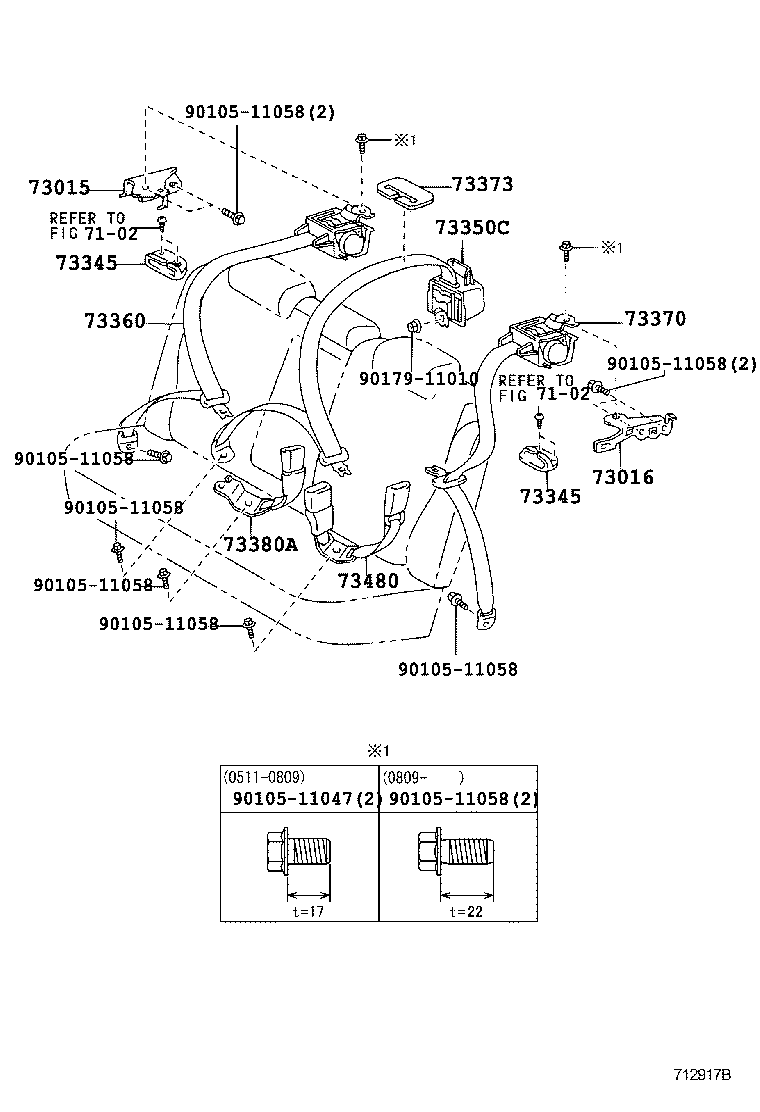

Figure 712916G 712916G 2003-08 → — Figure 712917B 712917B 2003-08 → —

Part groups

PNCDescription
73015 Bracket Sub-assy, Belt Outer Anchor, RH
73016 Bracket Sub-assy, Belt Outer Anchor, LH
73135A Cover, Shoulder Belt Anchor, RH
73136A Cover, Shoulder Belt Anchor, LH
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73345 Guide, Rear Seat Shoulder Belt, Center
73350C Belt Assy, Rear Seat, Outer Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73373 Cover, Rear Seat Shoulder Belt
73380A Belt Assy, Rear Seat, Inner
73480 Belt Assy, Rear Seat Inner W/Center, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
