Toyota Prius
2003-08 → 2009-03 · chassis NHW20 · catalogue 222220 · Europe
Supported model
Data version 2009-10

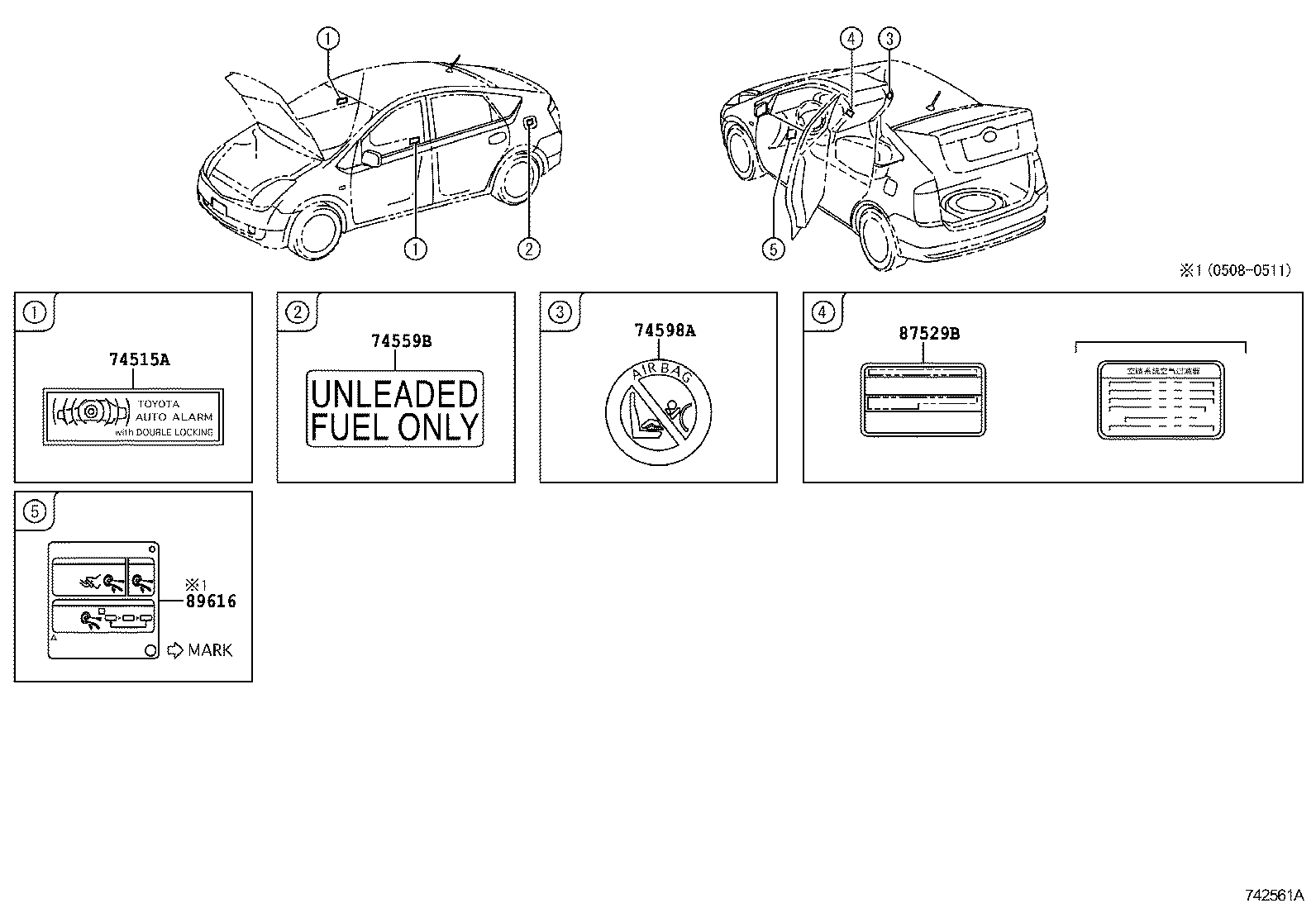

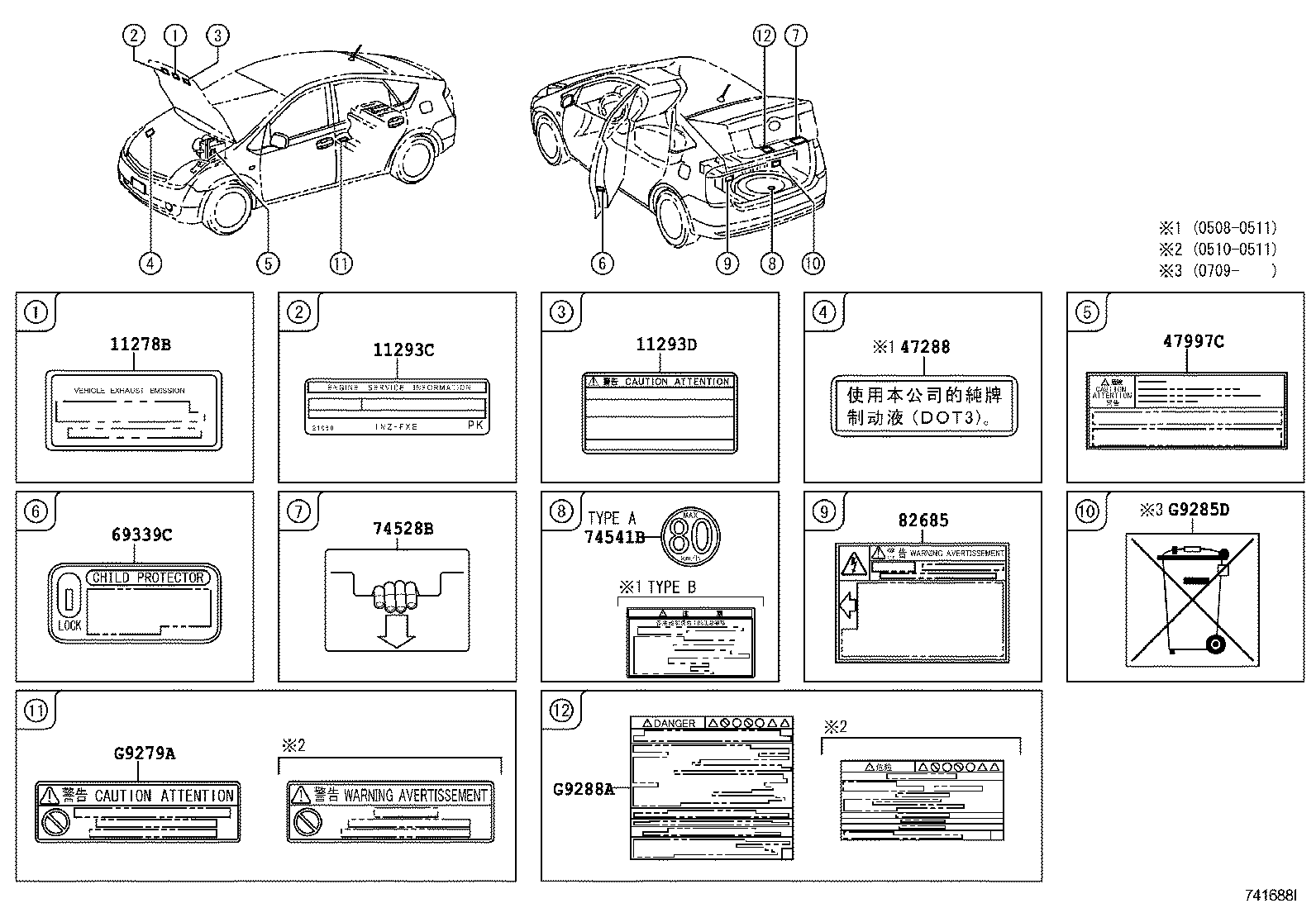

Caution Plate (EXTERIOR & INTERIOR)
25 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11278B | Label, Engine Emission Compliance Information |
| 11285A | Label, Coolant System Notice |
| 11293C | Label, Tune-up Specification Information |
| 11293D | Label, Engine Caution |
| 11296C | Label, Engine Service Information |
| 16793E | Label, Cooling Fan Caution |
| 47288 | Label, Brake Fluid Notice |
| 47997C | Label, Accumulator Caution, NO.1 |
| 69339C | Label, Child Protector Information |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515A | Plate, Theft Warning |
| 74528B | Label, Back Door Caution |
| 74541B | Plate, Compact Spare Tire Caution |
| 74559B | Label, Fuel Information |
| 74596A | Label, Side Airbag Caution |
| 74598A | Label, Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 82685 | Plate, Caution |
| 87529B | Label, A/C Filter Information |
| 88723H | Label, Cooler Service Caution |
| 89616 | Label, Push Start Information |
| G9275 | Label, Battery Caution, NO.1 |
| G9279A | Label, Battery Caution,NO.4 |
| G9285D | Label, HV Battery Information, NO.1 |
| G9288A | Label, Battery Carging Notice |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
