Toyota Prius
2003-08 → 2009-03 · chassis NHW20 · catalogue 222220 · Europe
Supported model
Data version 2009-10

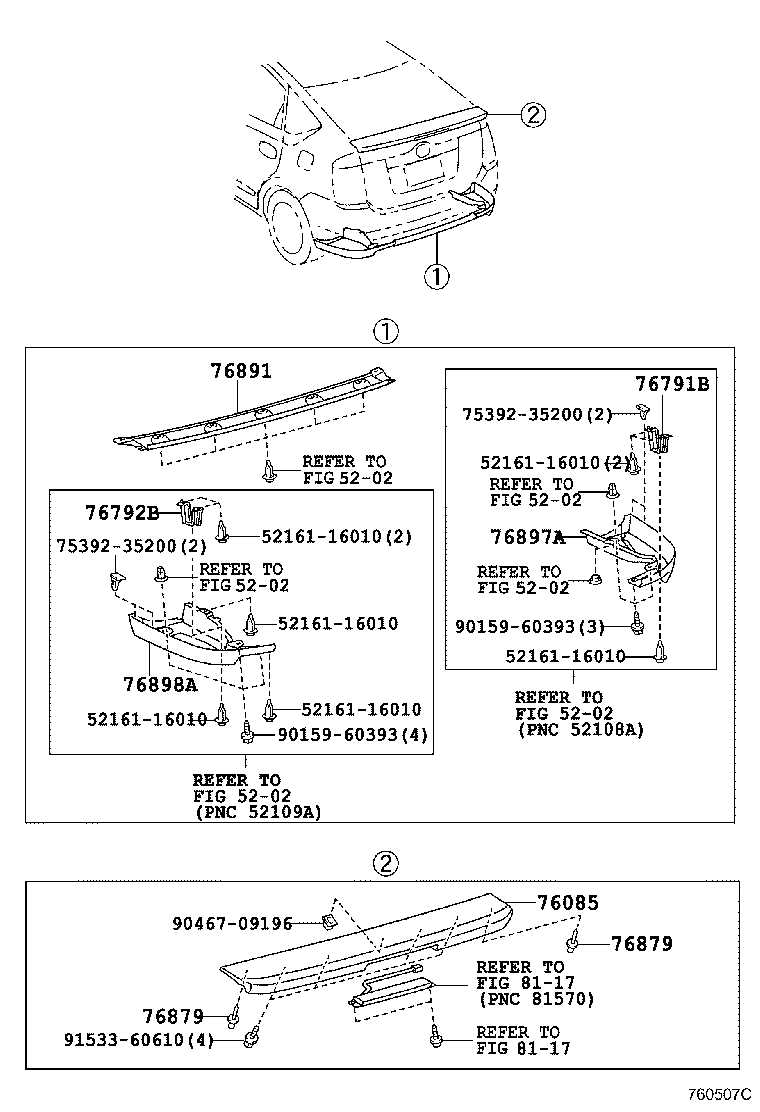

Mudguard & Spoiler
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 65631D | Plate, Rear Wheel House, Front RH |
| 65632D | Plate, Rear Wheel House, Front LH |
| 76085 | Spoiler Sub-assy, Rear |
| 76791B | Bracket, Rear Spoiler |
| 76792B | Bracket, Rear Spoiler, NO.1 LH |
| 76851 | Cover, Front Spoiler |
| 76879 | Clip, Rear Spoiler, NO.1 |
| 76891 | Spoiler, Rear NO.1 |
| 76897A | Spoiler,Rear Side RH |
| 76898A | Spoiler,Rear Side LH |
| 76911B | Mudguard, Side, RH |
| 76912D | Mudguard, Side, LH |
| 76917 | Mudguard, Side, Rear RH |
| 76918 | Mudguard, Side, Rear LH |
| 76924A | Retainer, Side Mudguard, NO.2 |
| 76924C | Retainer, Side Mudguard, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
