Toyota Prius
2003-08 → 2009-03 · chassis NHW20 · catalogue 222220 · Europe
Supported model
Data version 2009-10
Interior Lamp
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81230D | Lamp Assy, Front Door Courtesy, RH |
| 81230E | Lamp Assy, Front Door Courtesy, LH |
| 81230H | Bulb(FOR FRONT DOOR COURTESY LAMP RH) |
| 81230L | Bulb(FOR FRONT DOOR COURTESY LAMP LH) |
| 81230M | Lamp Assy, Courtesy, RH |
| 81230N | Lamp Assy, Courtesy, LH |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81250 | Lamp Assy, Room, NO.2 |
| 81250B | Bulb, Room Lamp, NO.2 |
| 81260 | Lamp Assy, Glove Box |

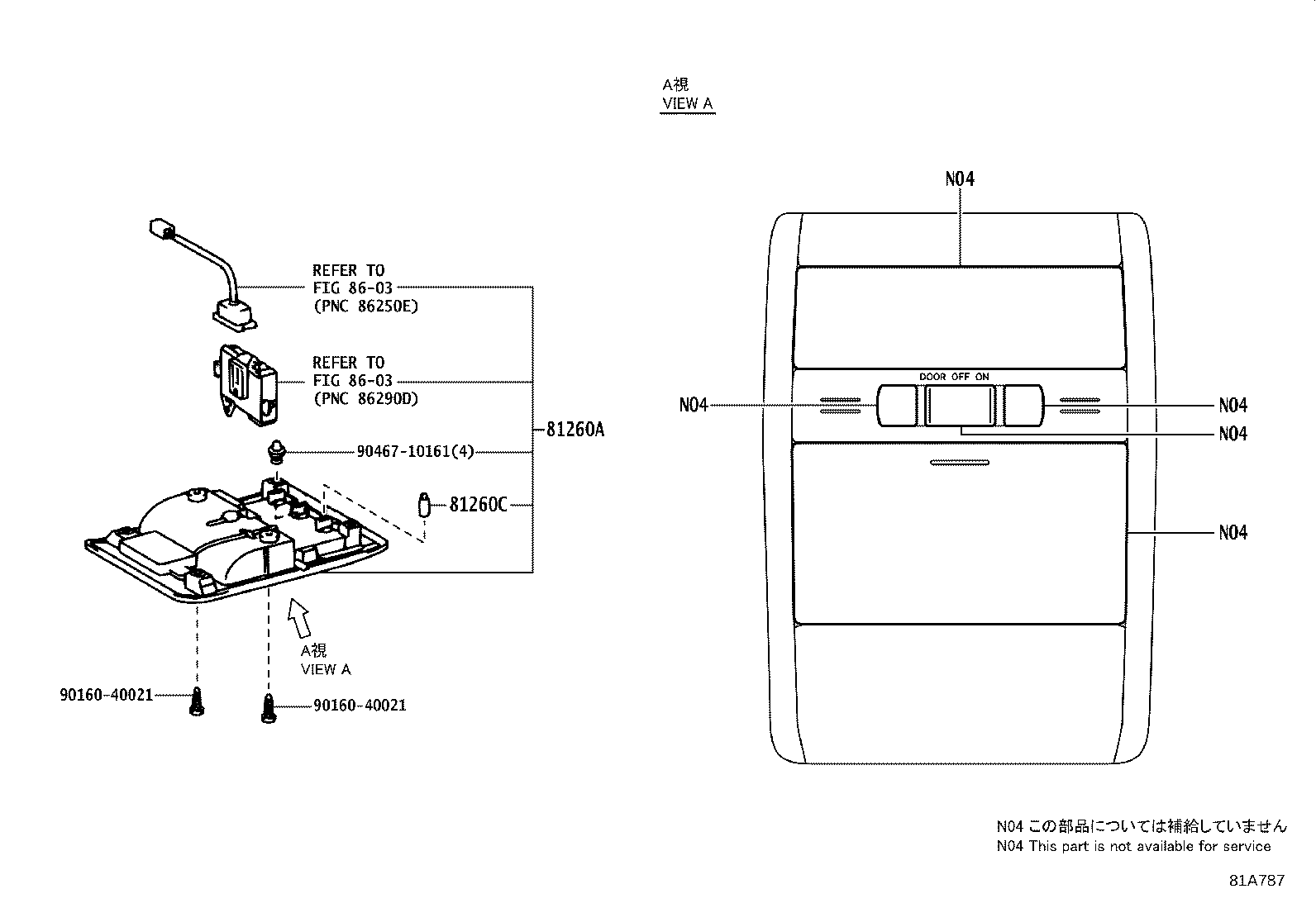

| 81260A | Lamp Assy, Map |
| 81260C | Bulb(FOR MAP LAMP) |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81366C | Base, Room Lamp Switch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
