Toyota Prius

2003-08 → 2009-03 · chassis NHW20 · catalogue 222220 · Europe

Supported model Data version 2009-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

30 part groups · 13 illustrations

Illustrations

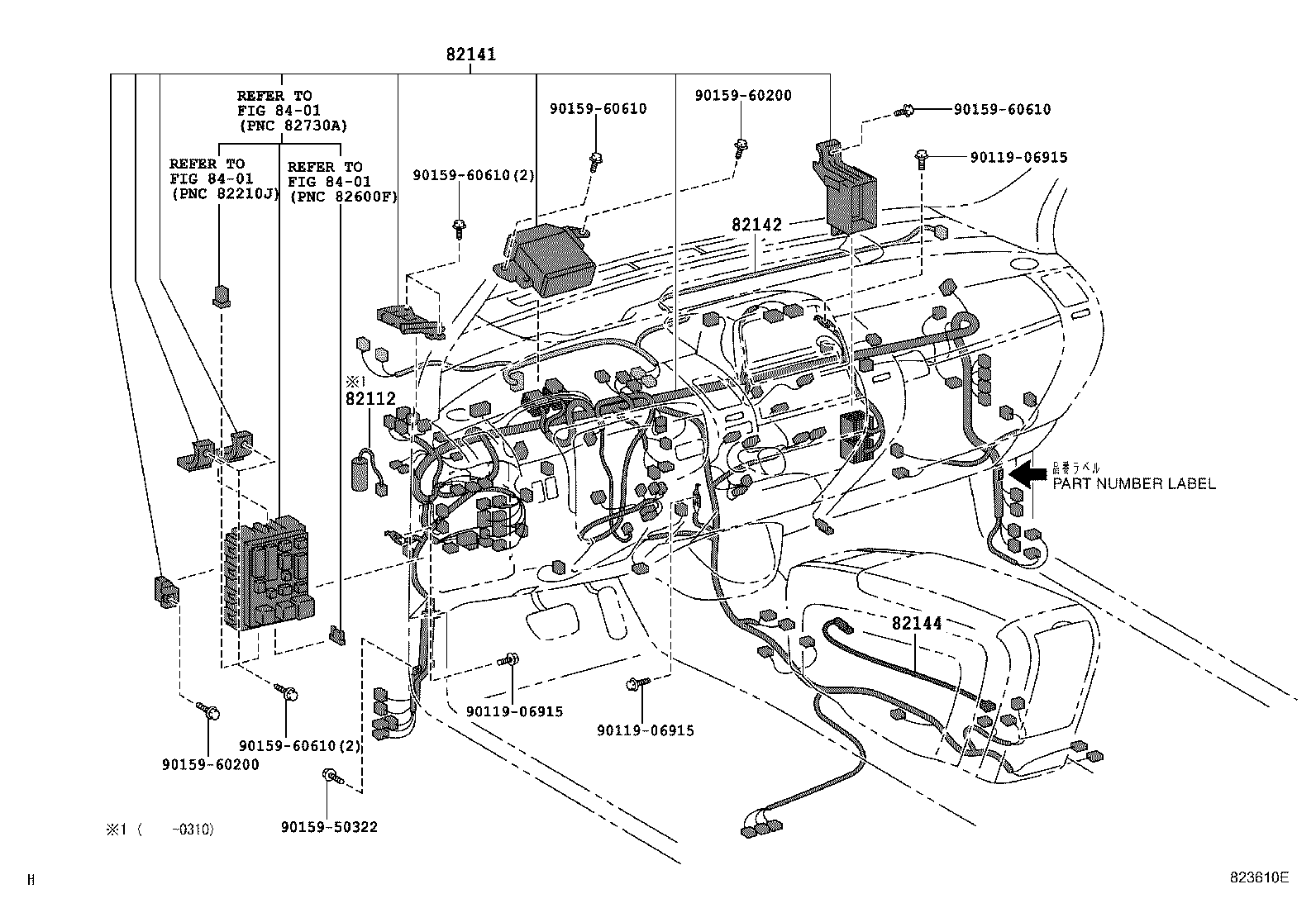

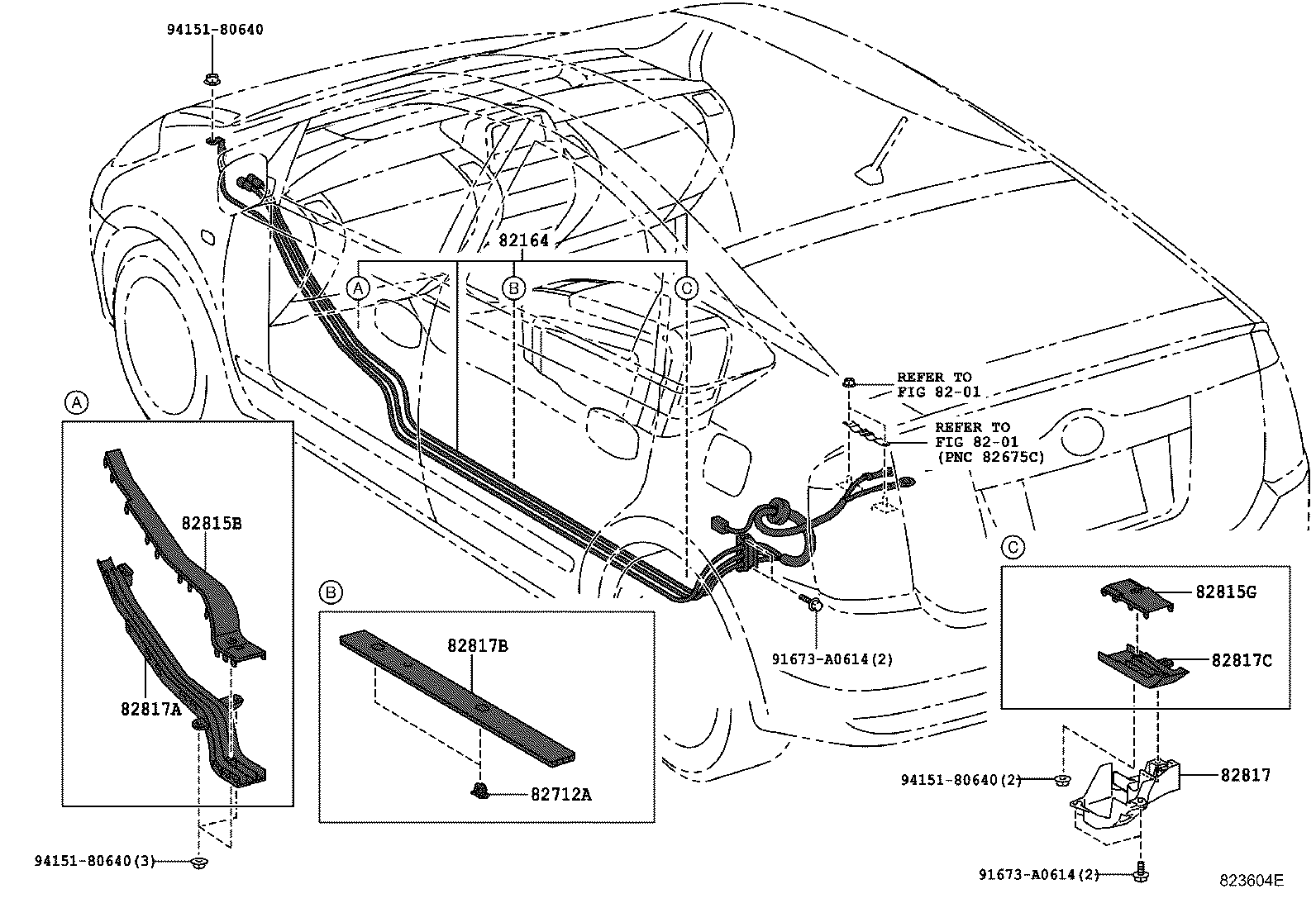

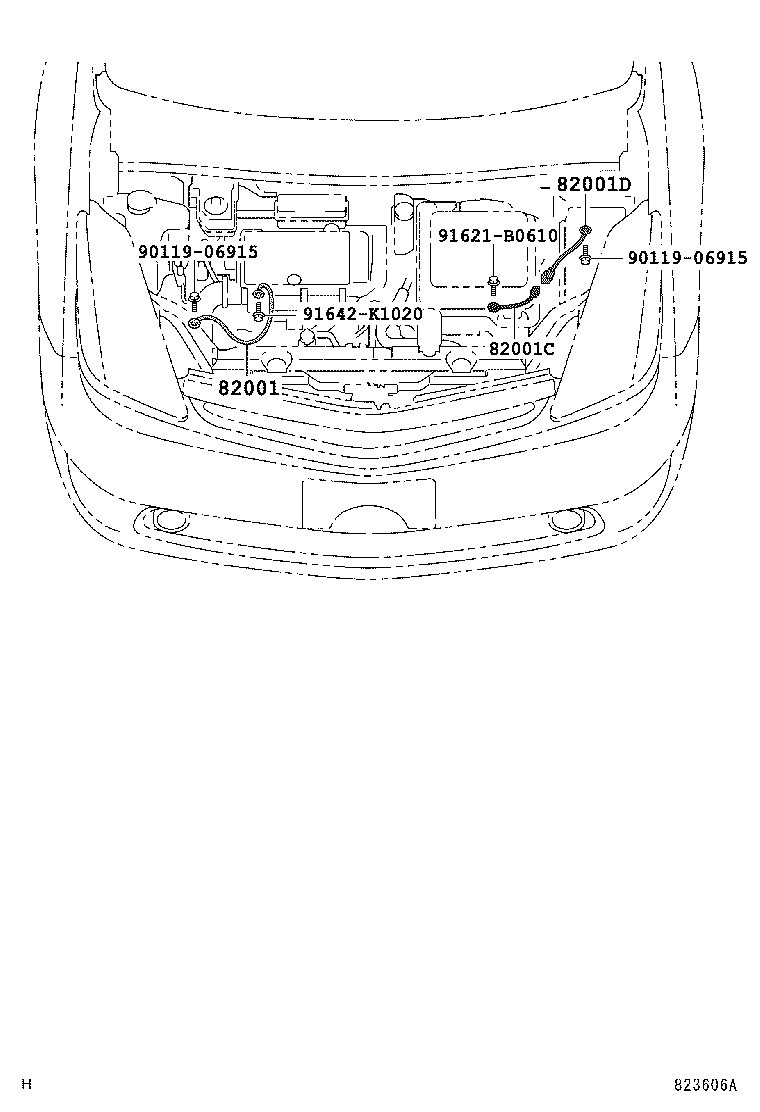

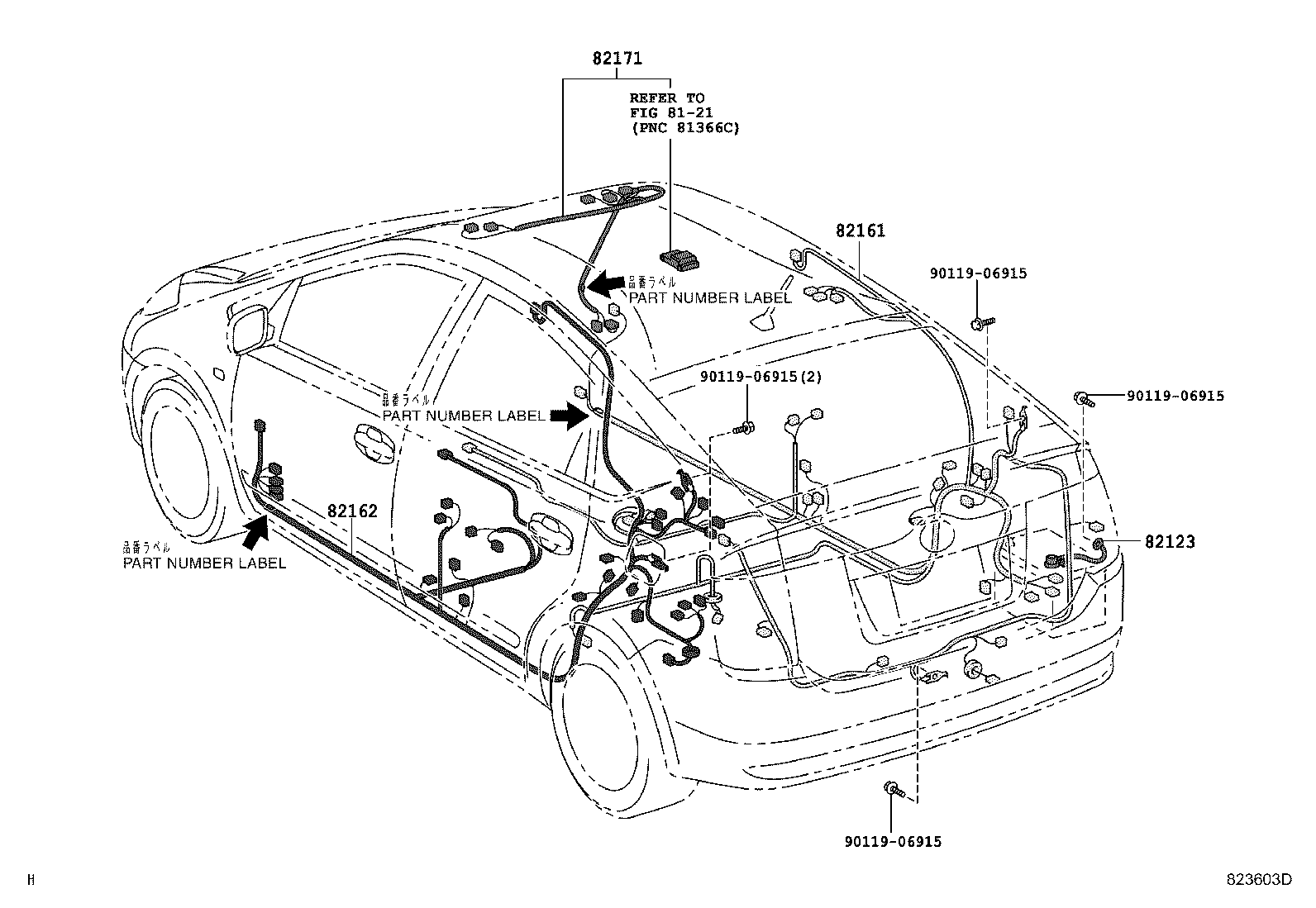

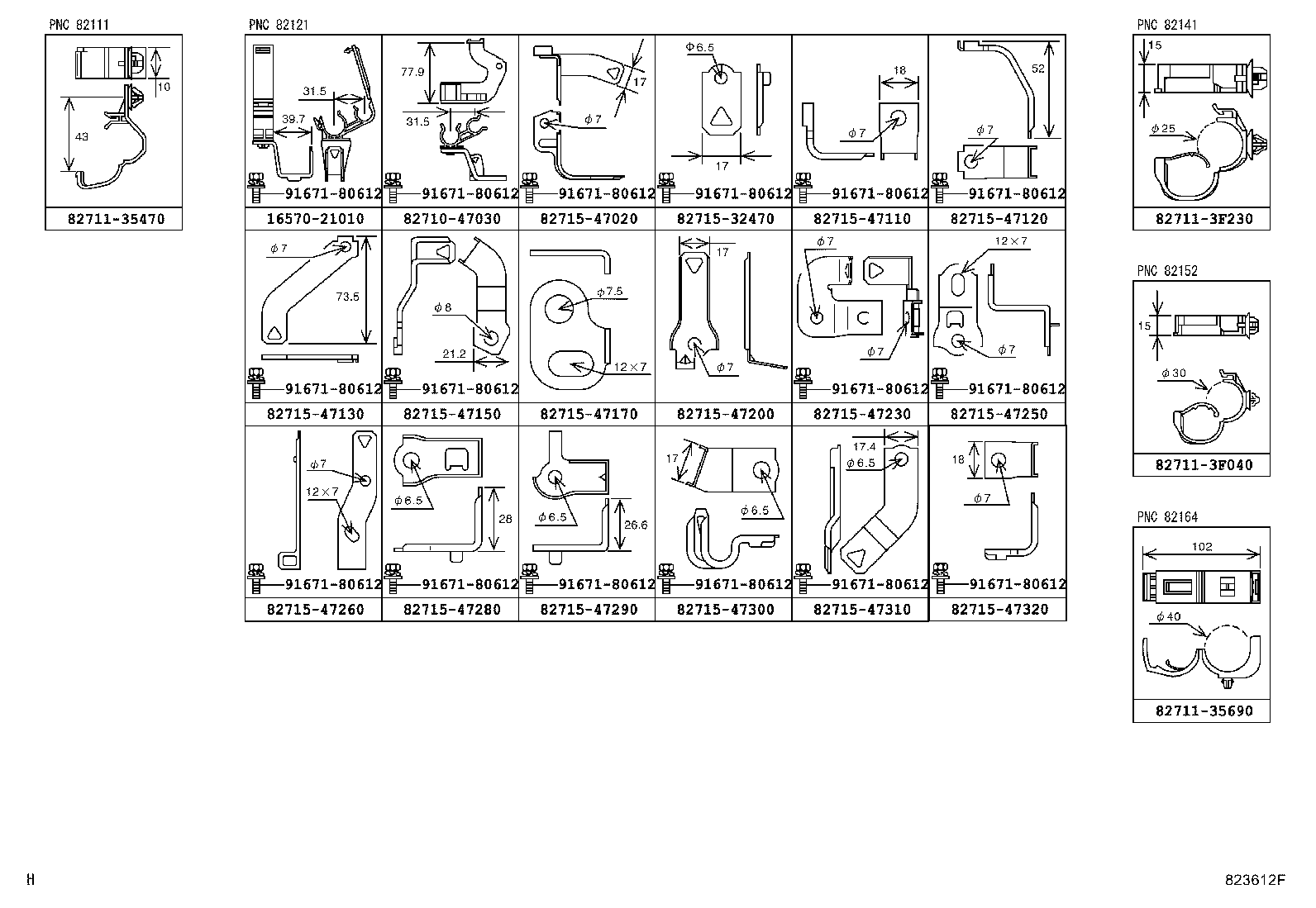

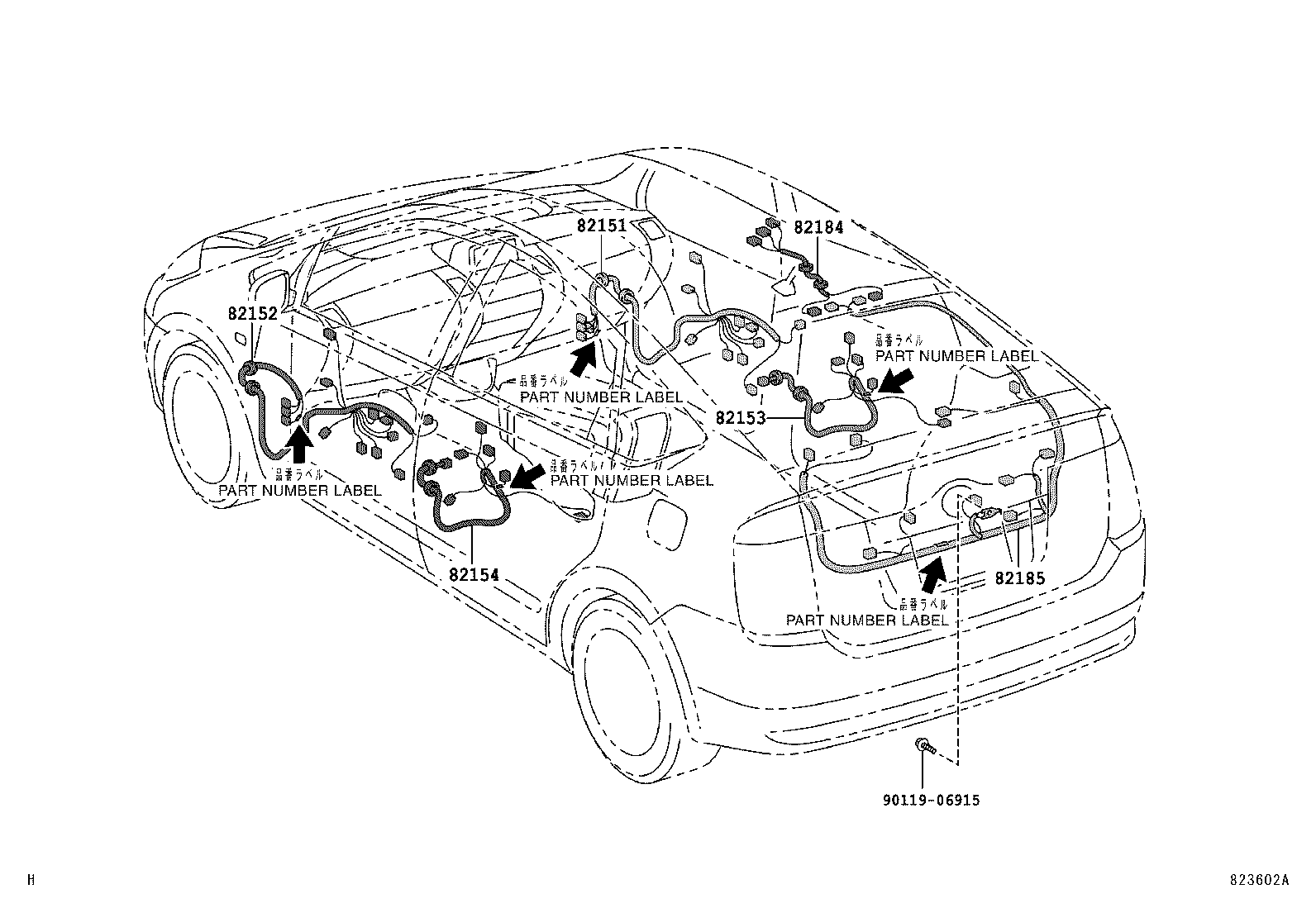

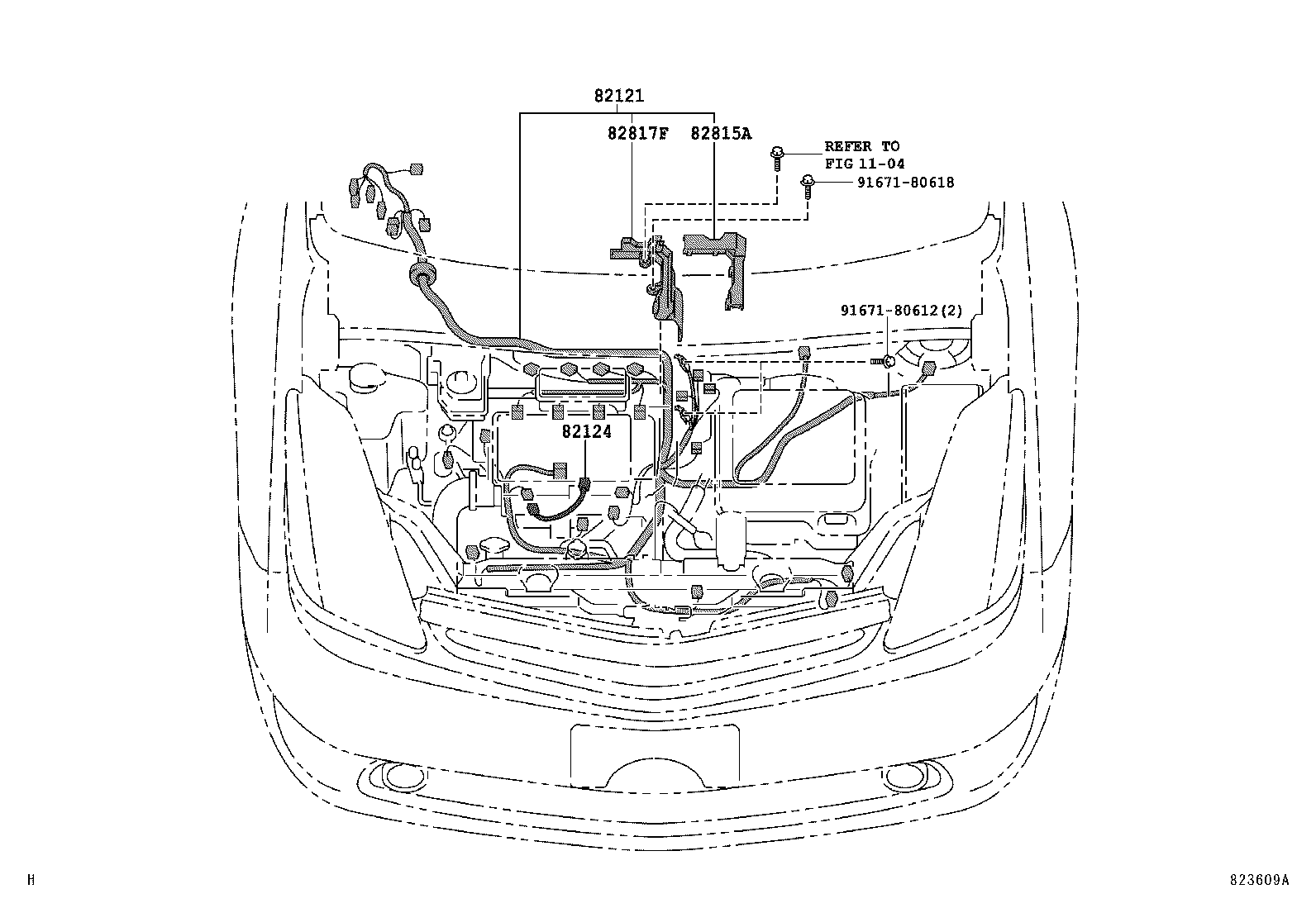

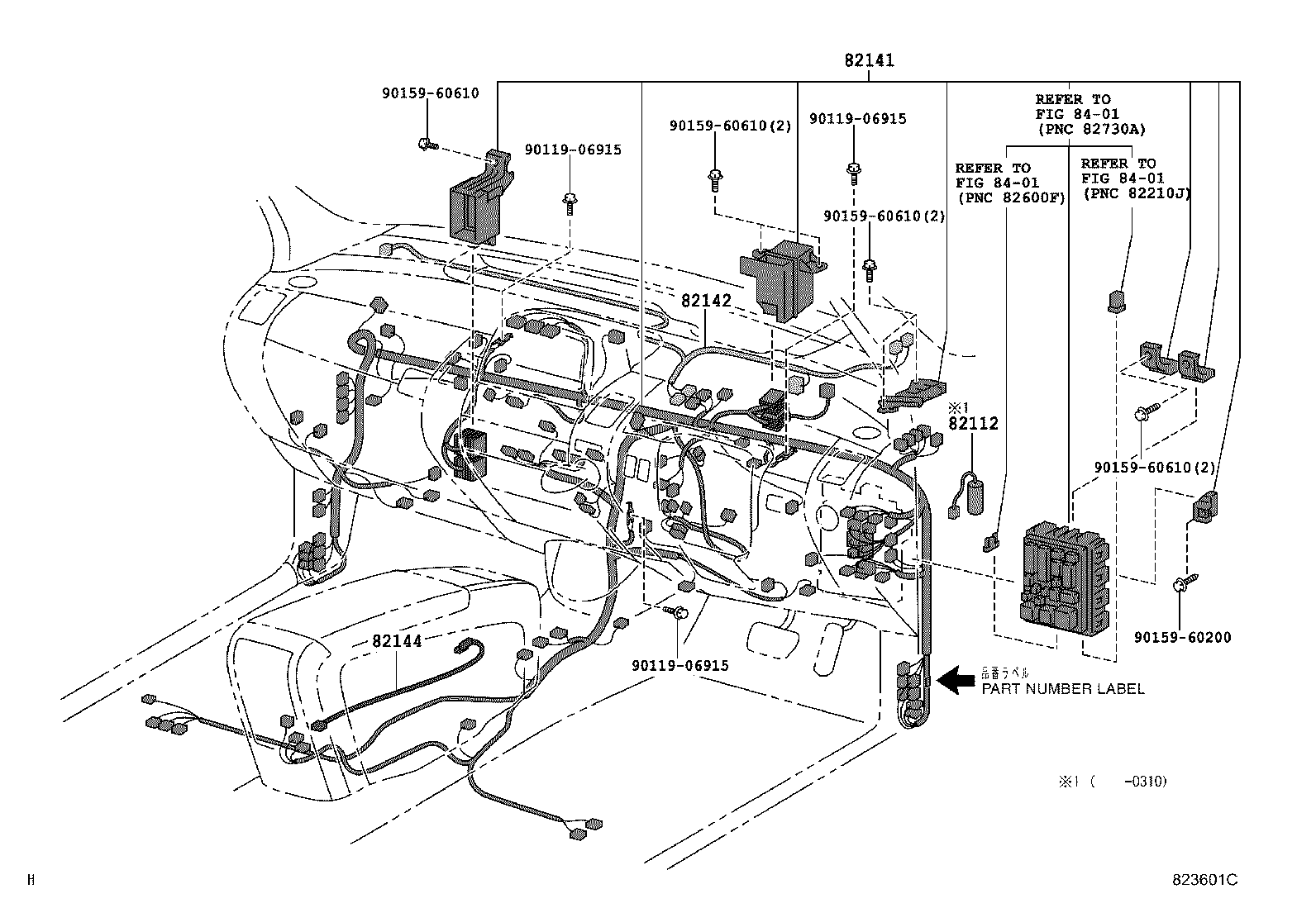

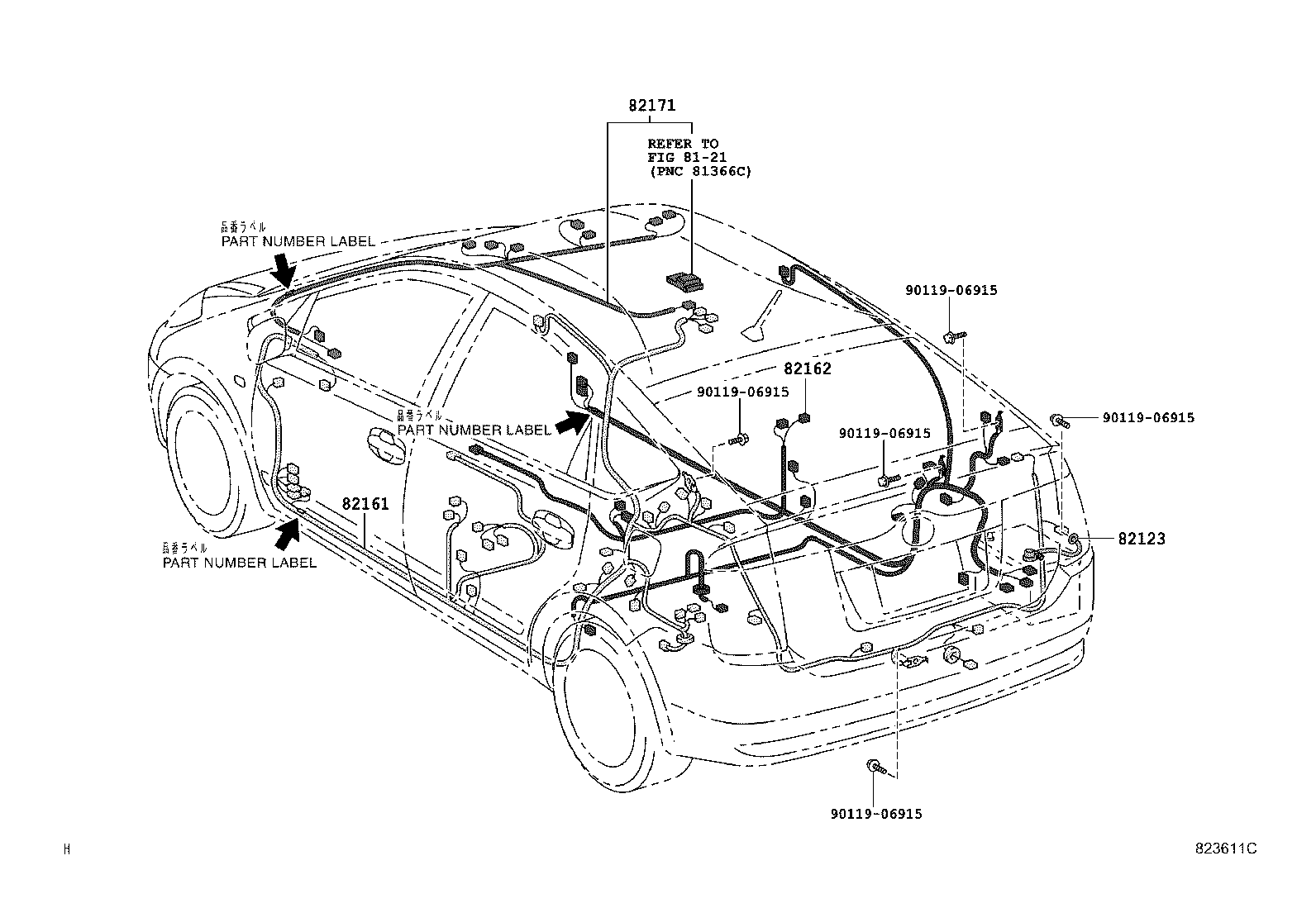

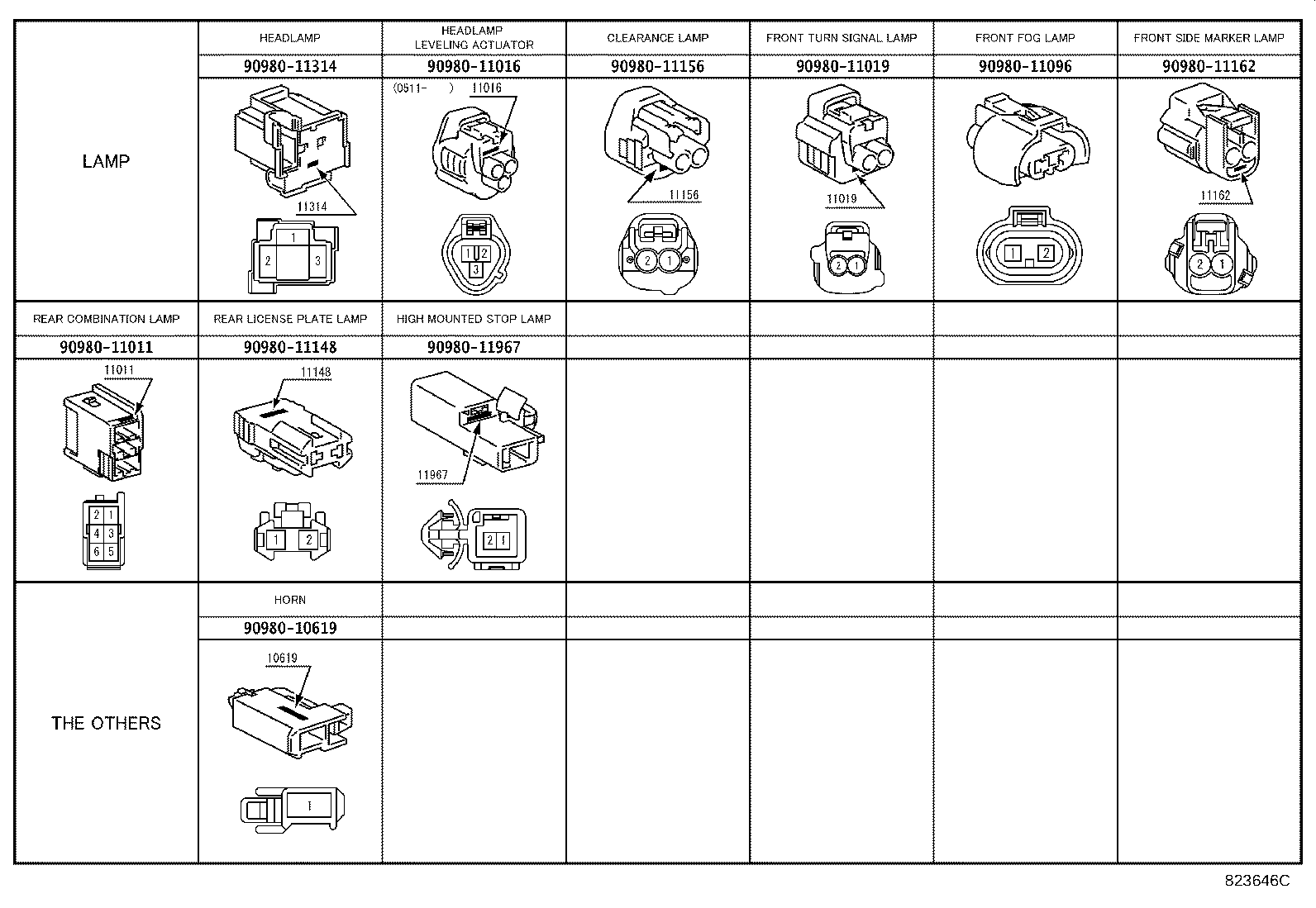

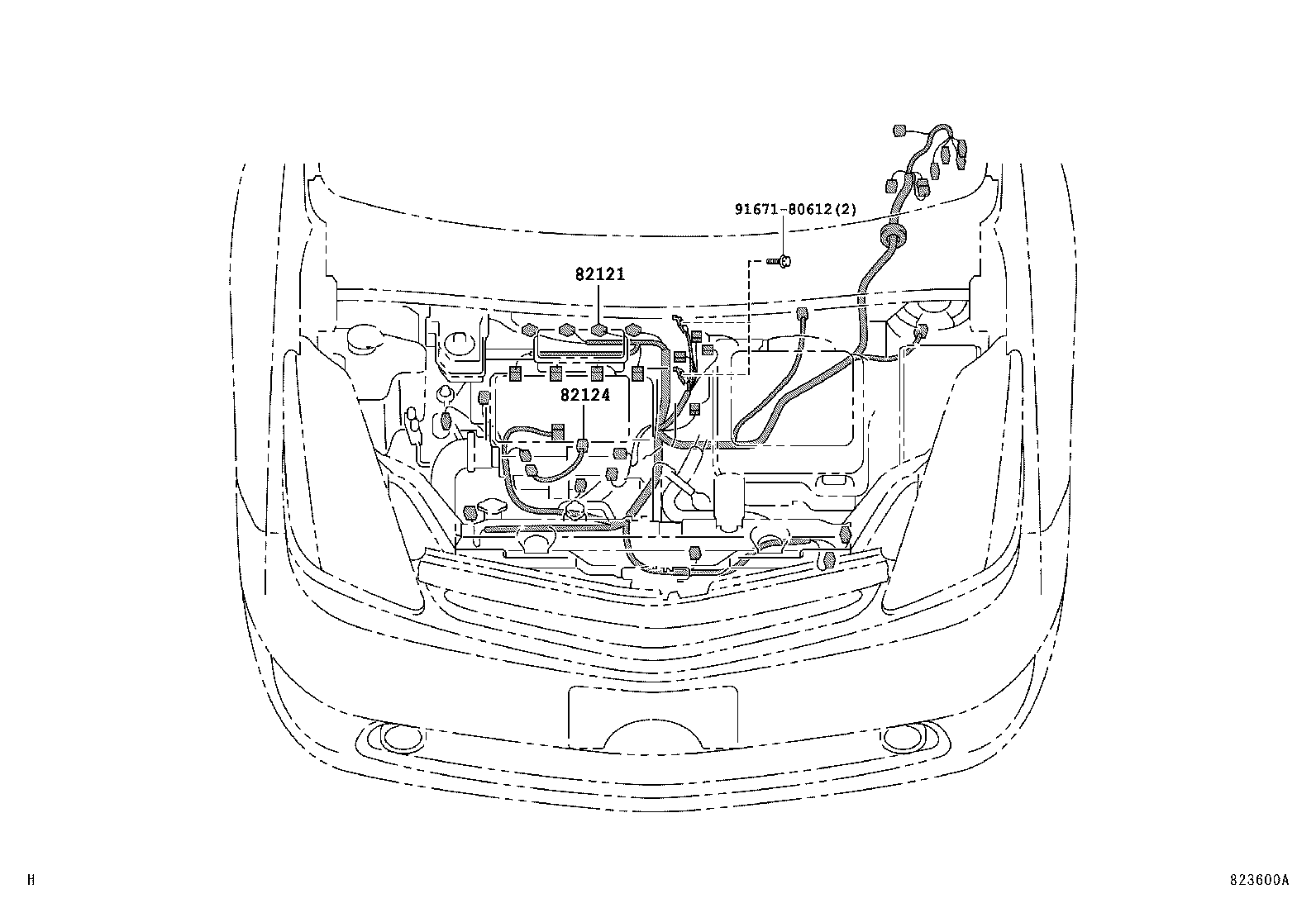

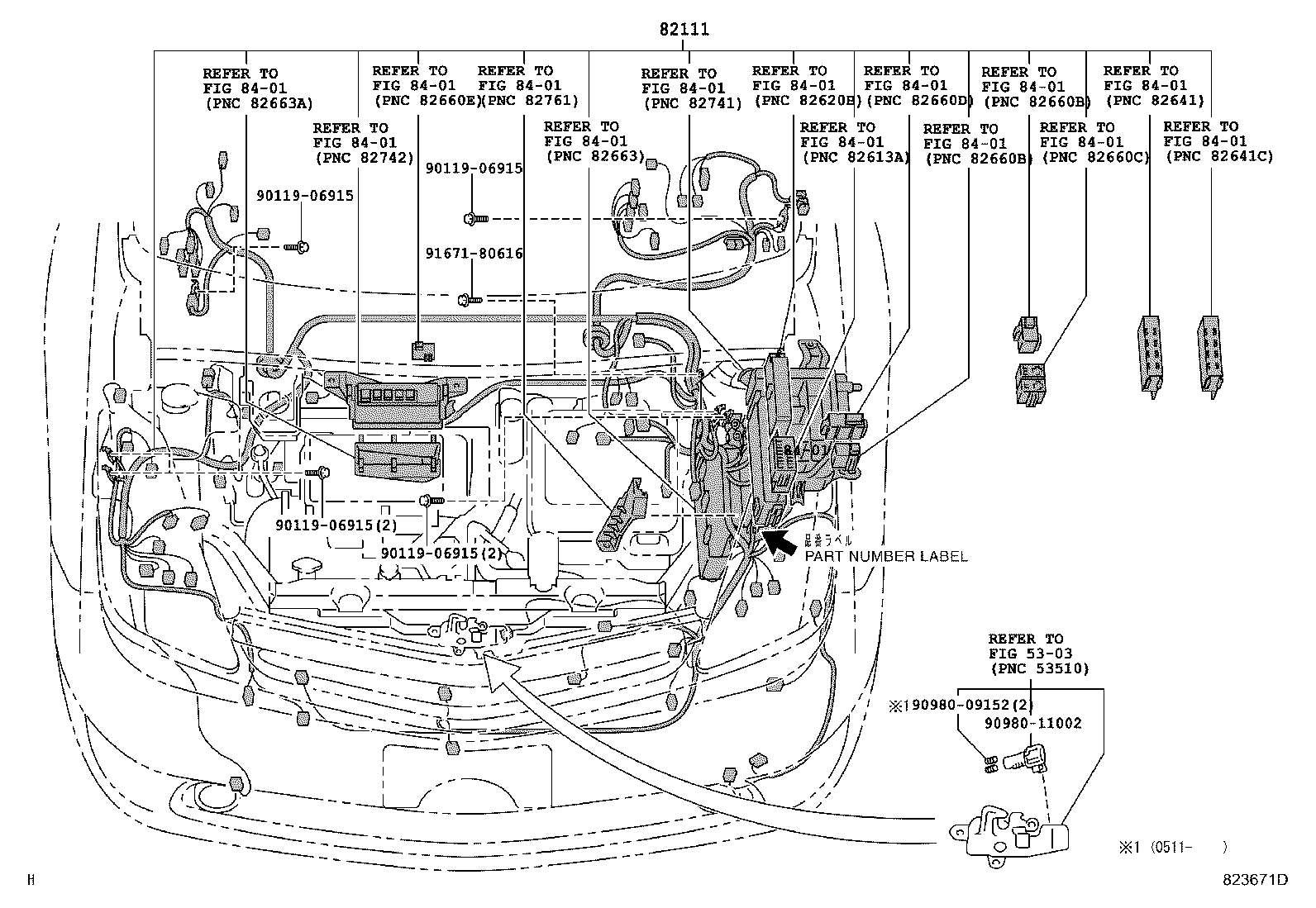

Figure 823607C 823607C 2003-08 → — Figure 823671D 823671D 2003-08 → — Figure 823600A 823600A 2003-08 → — Figure 823609A 823609A 2003-08 → — Figure 823601C 823601C 2003-08 → — Figure 823610E 823610E 2003-08 → — Figure 823602A 823602A 2003-08 → — Figure 823603D 823603D 2003-08 → — Figure 823611C 823611C 2003-08 → — Figure 823604E 823604E 2003-08 → — Figure 823612F 823612F 2003-08 → — Figure 823606A 823606A 2003-08 → — Figure 823646C 823646C 2003-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82001D Cable, Bond, NO.3
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82712A Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817F Protector, Wiring Harness, NO.7
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
