Toyota Prius

2003-08 → 2009-03 · chassis NHW20 · catalogue 222220 · Europe

Supported model Data version 2009-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

13 part groups · 2 illustrations

Illustrations

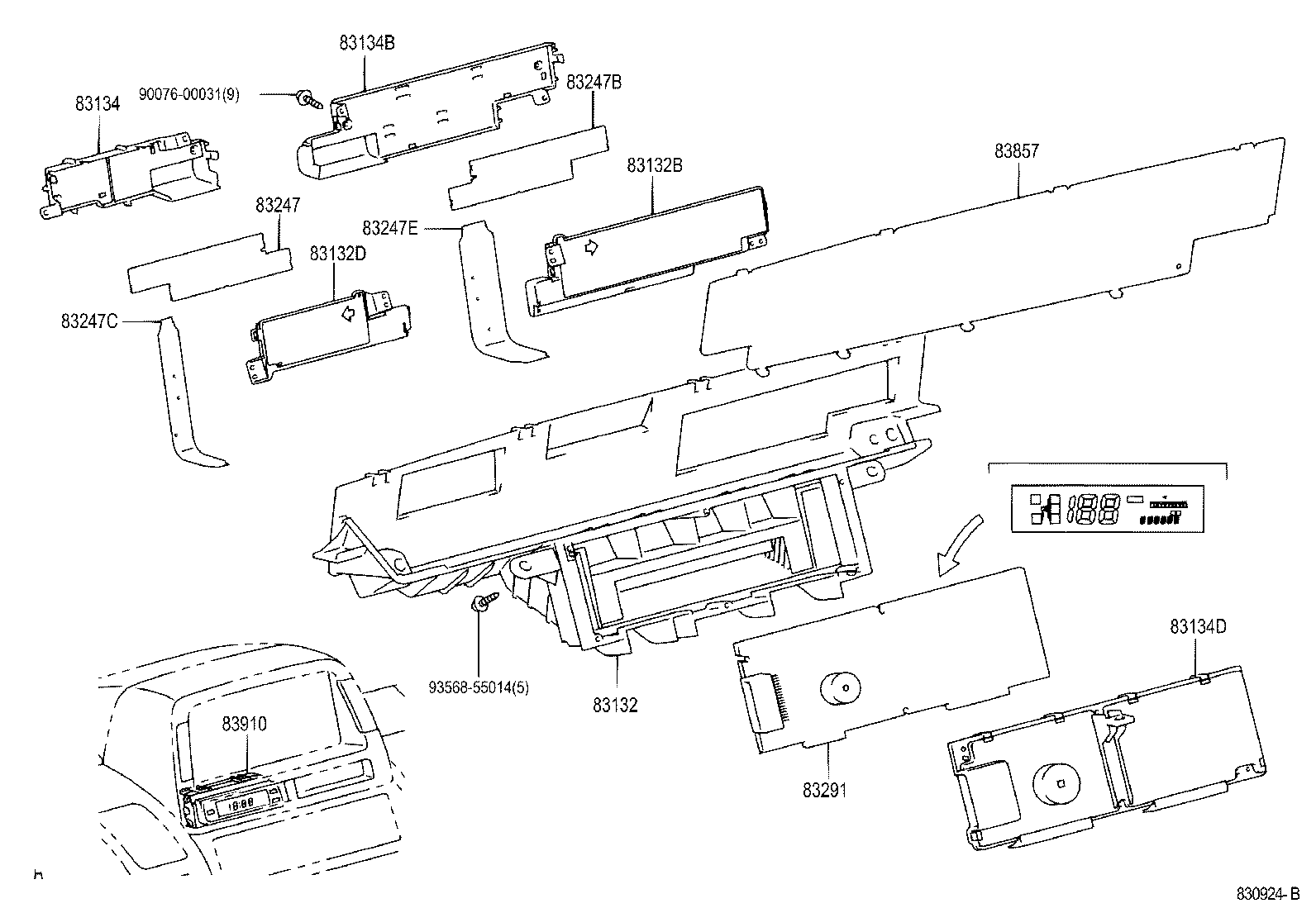

Figure 830923A 830923A 2003-08 → — Figure 830924B 830924B 2003-08 → —

Part groups

PNCDescription
83132 Case, Combination Meter
83132B Case, Combination Meter NO.3
83132D Case, Combination Meter, NO.2
83134 Cover, Combination Meter, NO.1
83134B Cover, Combination Meter, NO.2
83134D Cover, Combination Meter, NO.3
83247 Plate, Meter Circuit
83247B Plate, Meter Circuit, NO.2
83247C Plate, Mater Circuit, NO.3
83247E Plate, Mater Circuit, NO.4
83291 Computer, Combination Meter
83857 Reflector, Combination Meter, NO.1
83910 Clock Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
