Toyota Prius

2003-08 → 2009-03 · chassis NHW20 · catalogue 222220 · Europe

Supported model Data version 2009-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

12 part groups · 3 illustrations

Illustrations

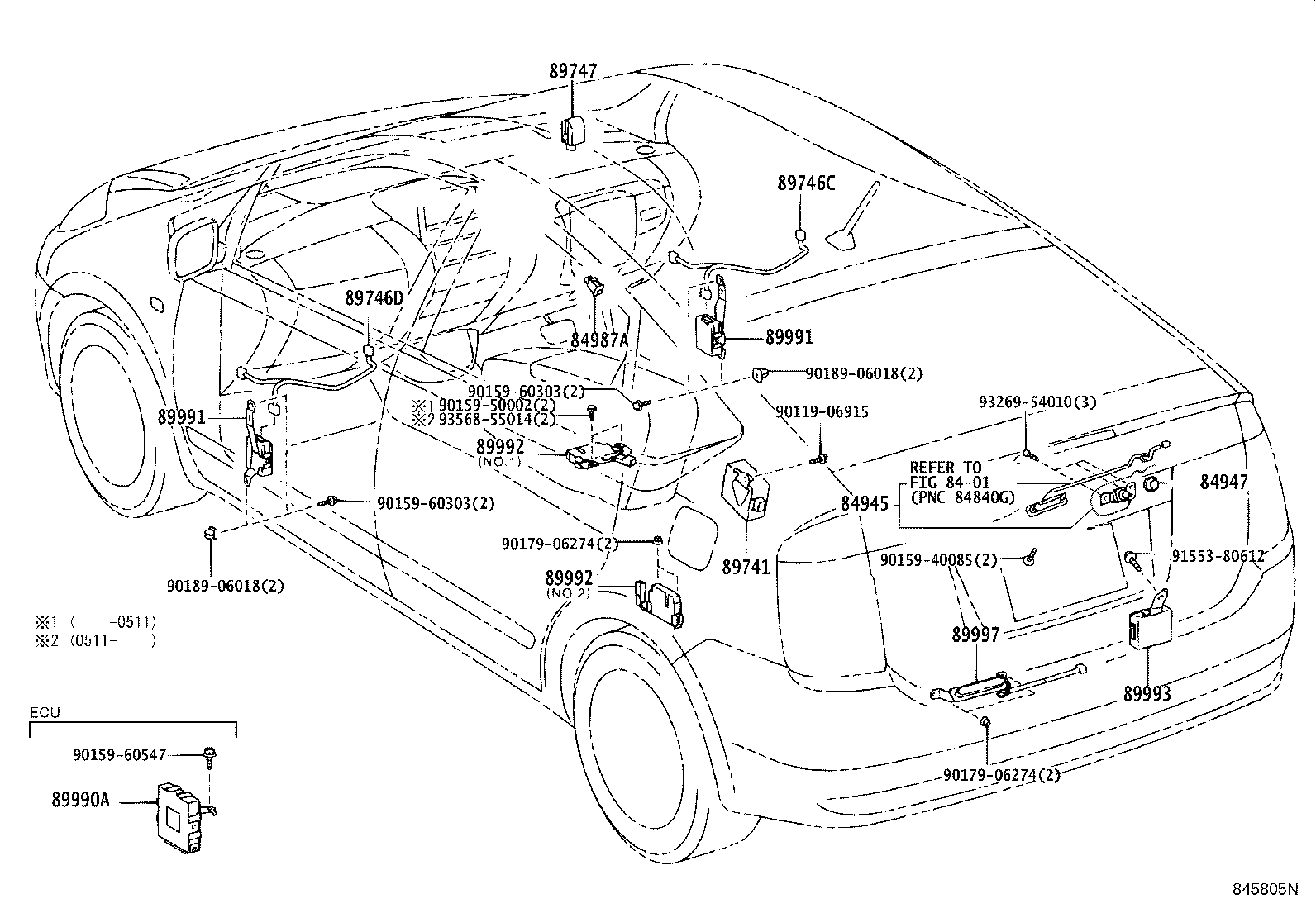

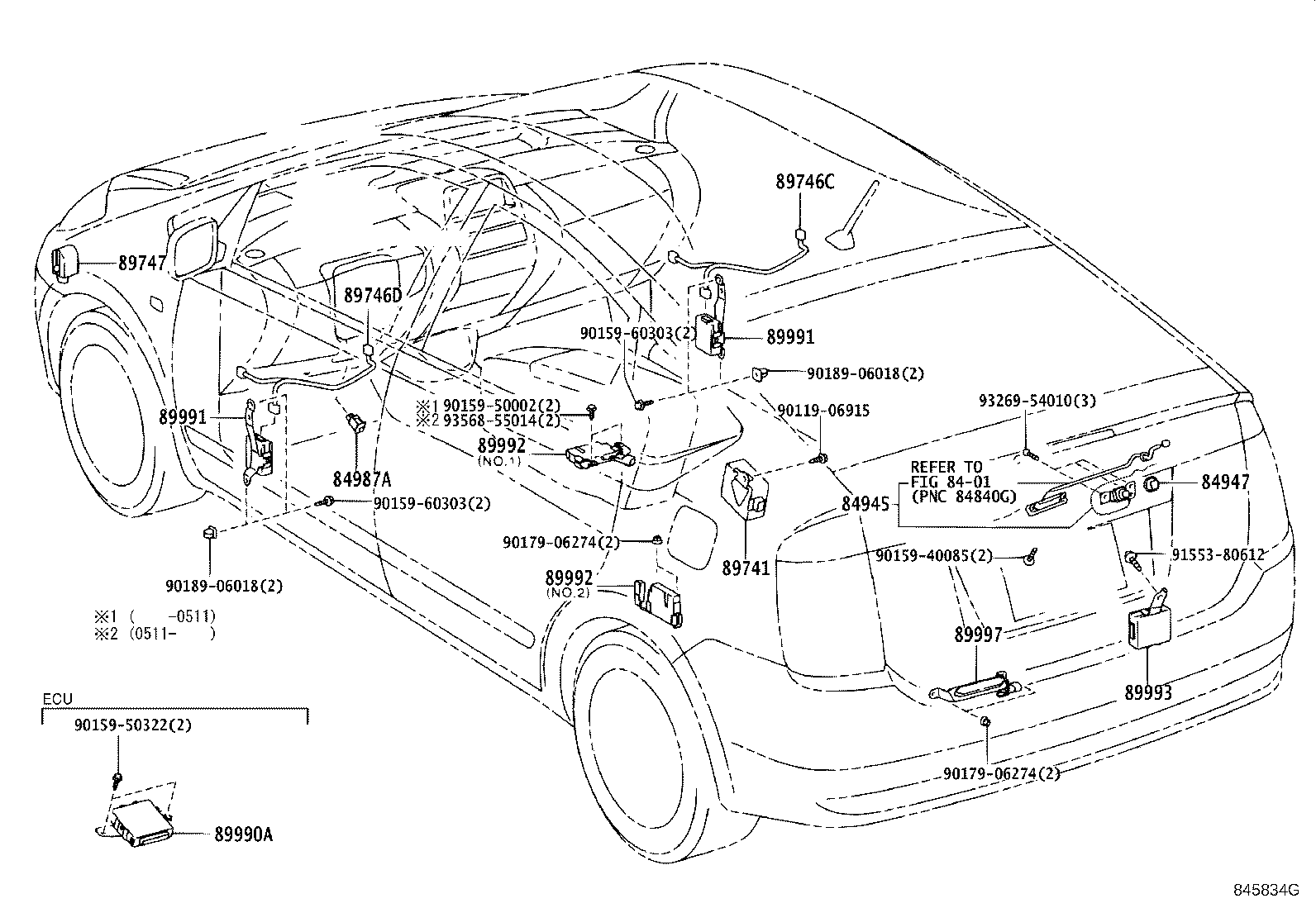

Figure 845832 845832 2003-08 → — Figure 845805N 845805N 2003-08 → — Figure 845834G 845834G 2003-08 → —

Part groups

PNCDescription
84945 Switch, Luggage Electrical Key
84947 Cover, Door Electrical Key Switch
84987A Switch, Keyless Entry Cancel
89741 Receiver, Door Control
89746C Harness, Electrical Key Wire, NO.1
89746D Harness, Electrical Key Wire, NO.2
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89991 Oscillator, Door Electrical Key
89992 Oscillator, Indoor Electrical Key
89993 Oscillator, Luggage Electrical Key
89997 Antenna, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
