Toyota Prius

2003-08 → 2009-03 · chassis NHW20 · catalogue 222220 · Europe

Supported model Data version 2009-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

13 part groups · 2 illustrations

Illustrations

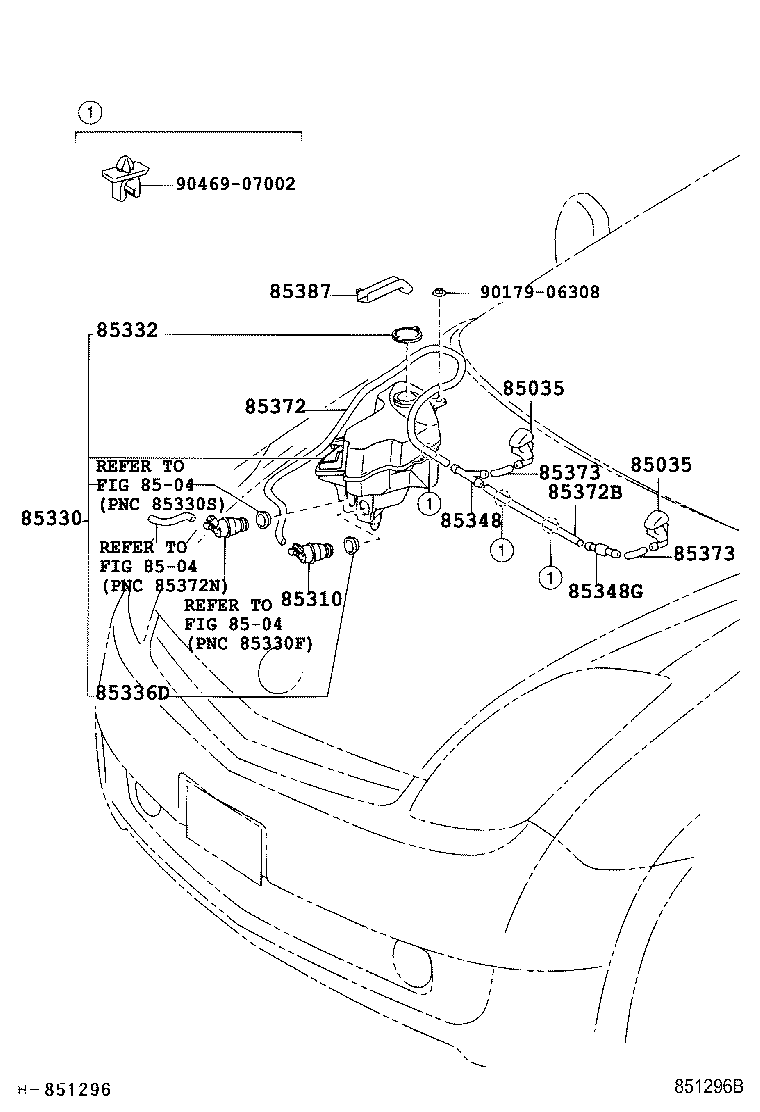

Figure 851295B 851295B 2003-08 → — Figure 851296B 851296B 2003-08 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85332 Cap, Windshield Washer Jar
85336D Packing, Windshield Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85348G Joint, Windshield Washer Hose, NO.2
85348M Joint, Windshield Washer Hose, NO.3
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85372H Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85387 Clamp NO.1 (FOR WINDSEIELD WASHER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
