Toyota Prius

2003-08 → 2009-03 · chassis NHW20 · catalogue 222220 · Europe

Supported model Data version 2009-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

11 part groups · 3 illustrations

Illustrations

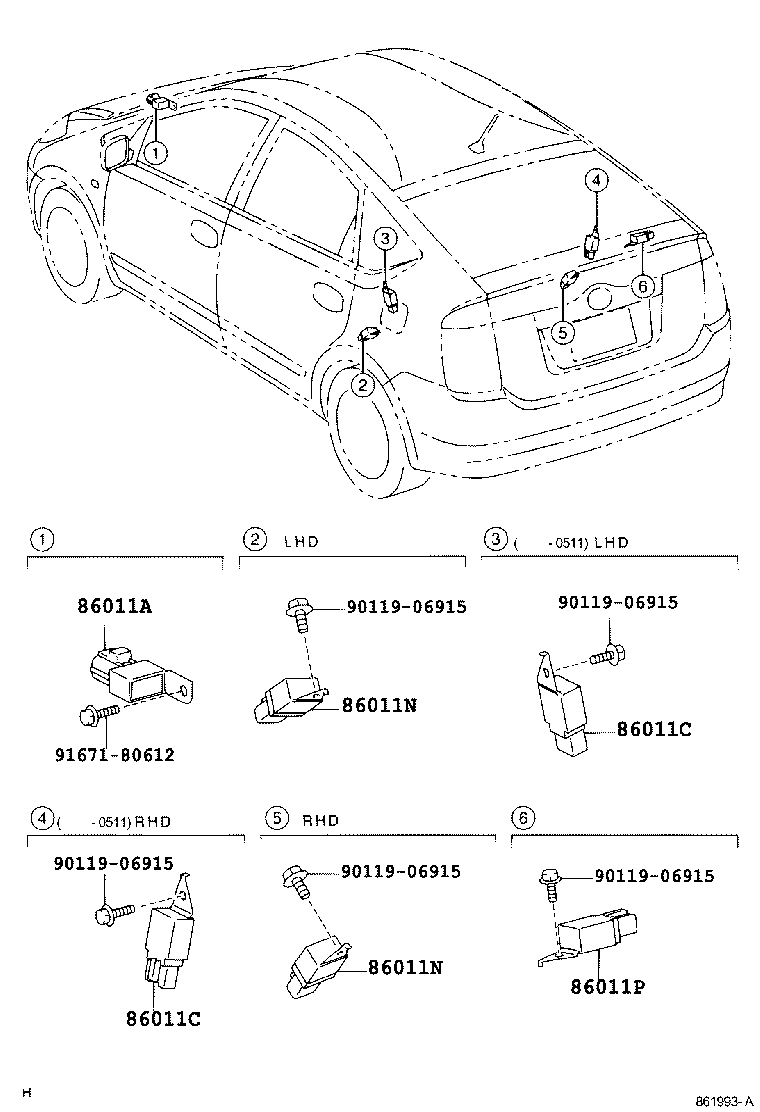

Figure 861989E 861989E 2003-08 → — Figure 861992B 861992B 2003-08 → — Figure 861993A 861993A 2003-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86011N Filter, Noise
86011P Filter, Noise
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86183D Cover, Audio Amplifier
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
