Toyota Prius

2003-08 → 2009-03 · chassis NHW20 · catalogue 222220 · Europe

Supported model Data version 2009-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

13 part groups · 2 illustrations

Illustrations

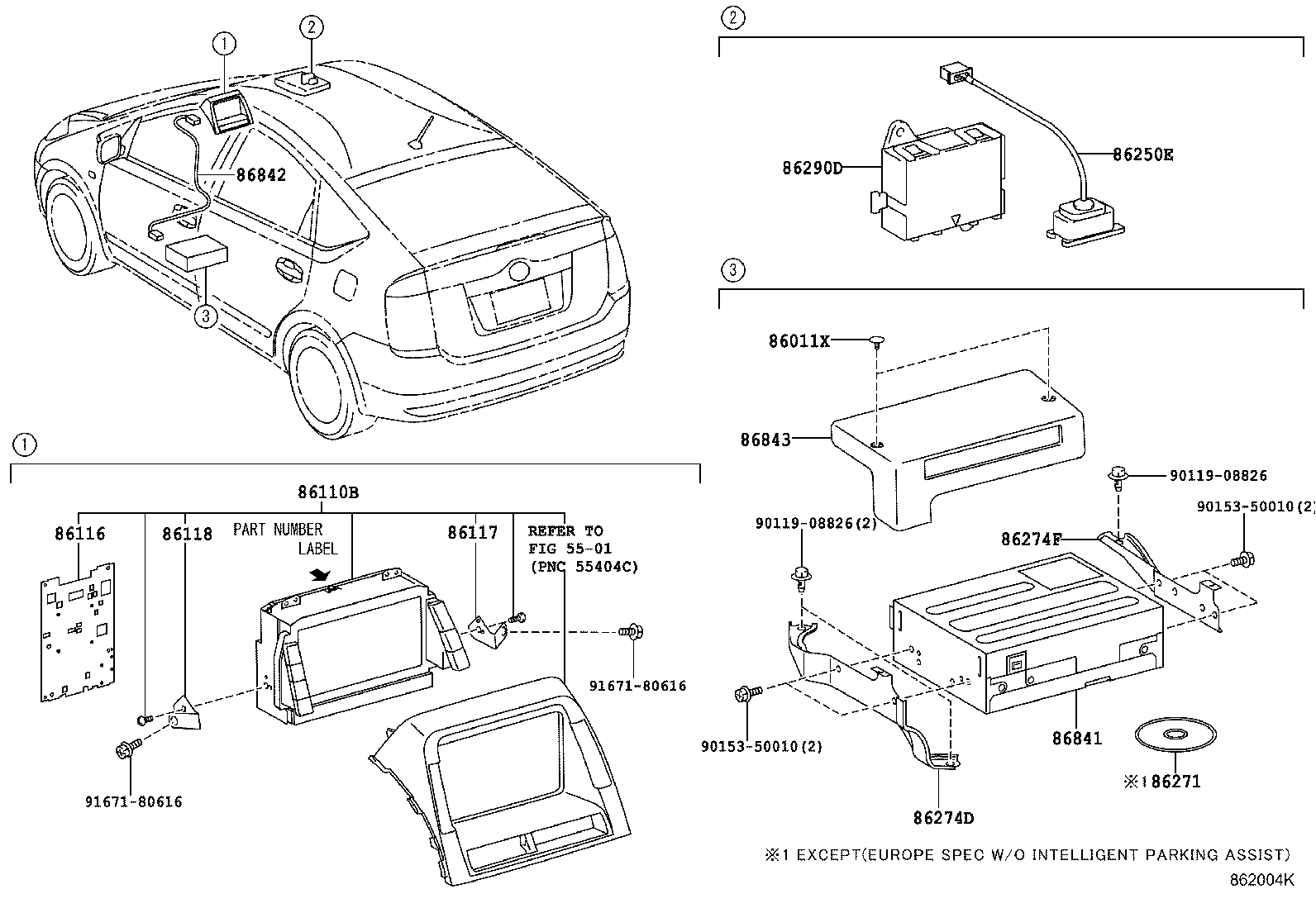

Figure 862629A 862629A 2003-08 → 2005-11 Figure 862004K 862004K 2005-11 → —

Part groups

PNCDescription
86011X Clip, Navigation
86110B Multi-display Assy
86116 Controller, Video
86117 Bracket, Multi-display Controller, A
86118 Bracket, Multi-display Controler, B
86250E Microphone Assy, Amplifier
86271 Disc, Disc Player
86274D Bracket, Disc Player
86274F Bracket, Disc Player, NO.2
86290D Amplifier Assy, Microphone
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86843 Cover, Navigation Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
