Toyota Prius

2003-08 → 2009-03 · chassis NHW20 · catalogue 222220 · Europe

Supported model Data version 2009-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

6 part groups · 2 illustrations

Illustrations

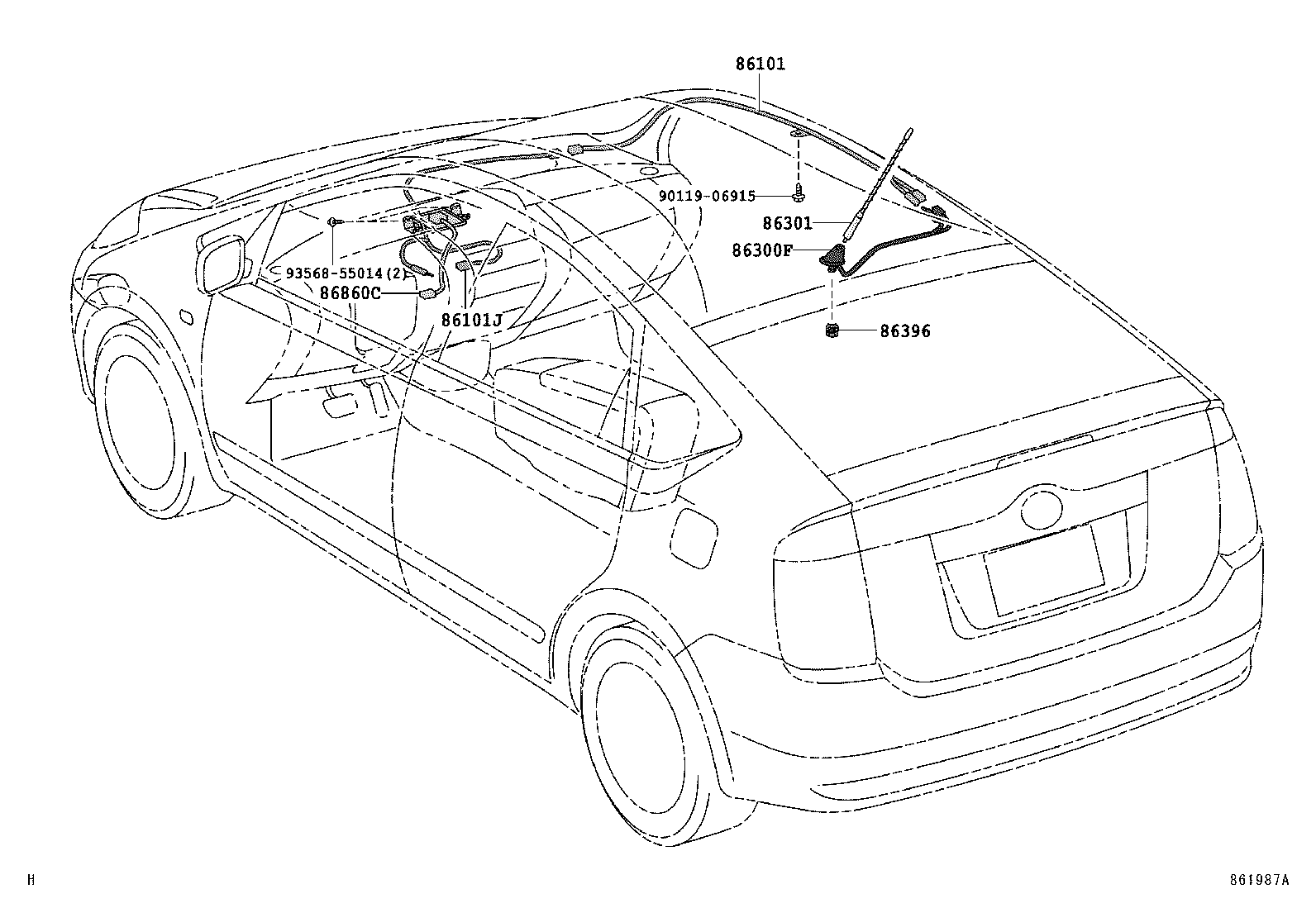

Figure 861986A 861986A 2003-08 → — Figure 861987A 861987A 2003-08 → —

Part groups

PNCDescription
86101 Cord Sub-assy, Antenna
86101J Cord Sub-assy, Antenna, NO.2
86300F Holder Assy, Antenna (CORD/POLE SEPARATE TYPE)
86301 Pole Sub-assy, Antenna
86396 Nut, Antenna
86860C Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
