Toyota Prius

2003-08 → 2009-03 · chassis NHW20 · catalogue 222220 · Europe

Supported model Data version 2009-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

4 part groups · 2 illustrations

Illustrations

Figure 862667E

862667E 2005-11 → —

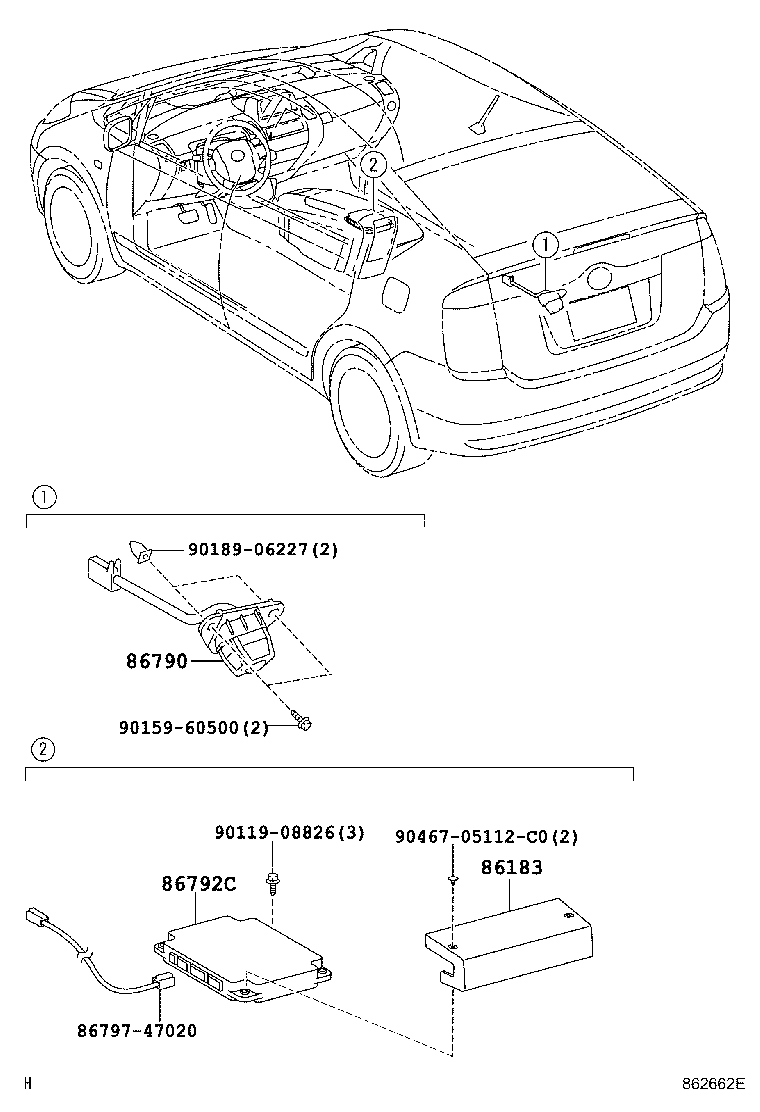

Figure 862662E

862662E 2005-11 → —

Part groups

PNC	Description
86029	Bracket Set, Television
86183	Cover, Audio Rack
86790	Camera Assy, Television
86792C	Computer, Parking Assist

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
