Toyota Prius
2009-04 → 2015-11 · chassis ZVW30 · catalogue 222230 · Europe
Supported model
Data version 2016-05

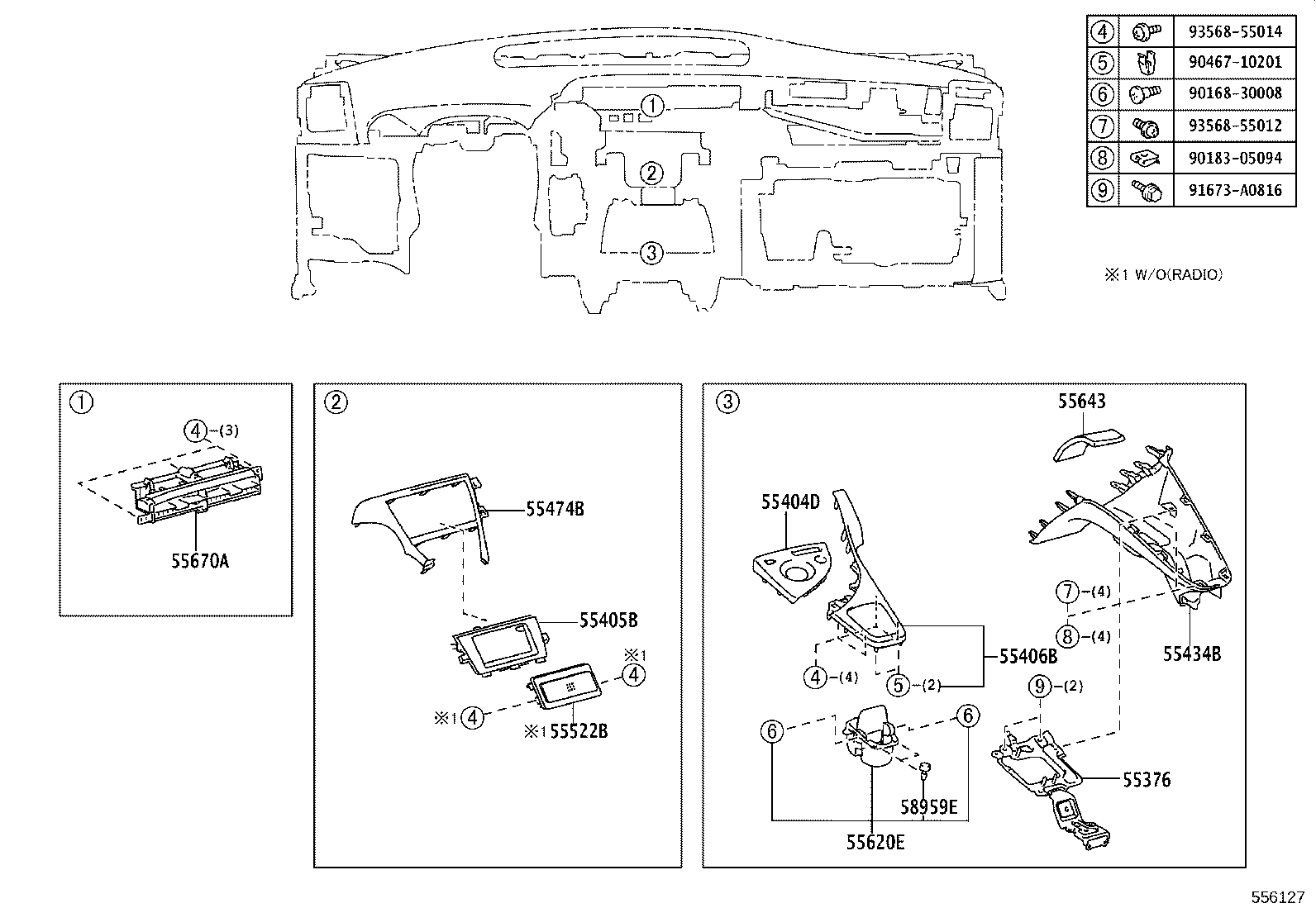

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55376 — Bracket, Instrument Panel Mounting, NO.1 | ||||
| 55376-47030 |
Bracket, Instrument Panel Mounting, NO.1
2009-04 → 2011-12
ended
|
ZVW30 RHD (ARL,EUR) | — | |
| 55376-47040 |
Bracket, Instrument Panel Mounting, NO.1
2009-04 → 2011-12
ended
|
ZVW30 LHD | — | |
| 55376-47030 |
Bracket, Instrument Panel Mounting, NO.1
2010-12 → 2012-04
ended
|
ZVW30 TH | — | |
| 55376-47030 |
Bracket, Instrument Panel Mounting, NO.1
2011-12 → —
|
ZVW30 RHD (ARL,EUR) | — | |
| 55376-47040 |
Bracket, Instrument Panel Mounting, NO.1
2011-12 → —
|
ZVW30 LHD | — | |
| 55376-47030 |
Bracket, Instrument Panel Mounting, NO.1
2012-04 → —
|
ZVW30 TH | — | |
| 55404D — Panel Sub-assy, Instrument Cluster Finish | ||||
| 55404-47010 |
Panel Sub-assy, Instrument Cluster Finish
2009-04 → 2010-11
ended
|
ZVW30 RHD | — | |
| 55404-47010-B0 note |
Panel Sub-assy, Instrument Cluster Finish
2010-11 → 2011-12
ended
|
ZVW30 RHD (ARL,EUR) | — | |
| 55404-47020 |
Panel Sub-assy, Instrument Cluster Finish
2009-04 → 2010-11
ended
|
ZVW30 LHD | — | |
| 55404-47020-B0 note |
Panel Sub-assy, Instrument Cluster Finish
2010-11 → 2011-12
ended
|
ZVW30 LHD | — | |
| 55404-47010-B0 note |
Panel Sub-assy, Instrument Cluster Finish
2010-12 → 2012-04
ended
|
ZVW30 TH | — | |
| 55404-47050 |
Panel Sub-assy, Instrument Cluster Finish
2011-12 → 2015-11
ended
|
ZVW30 RHD (ARL,EUR) | — | |
| 55404-47060 |
Panel Sub-assy, Instrument Cluster Finish
2011-12 → 2015-11
ended
|
ZVW30 LHD | — | |
| 55404-47050 |
Panel Sub-assy, Instrument Cluster Finish
2012-04 → 2015-10
ended
|
ZVW30 TH | — | |
| 55405B — Panel Sub-assy, Instrument Cluster Finish, Center | ||||
| 55405-47070 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2009-04 → 2011-12
ended
|
ZVW30 RHD EUR | — | |
| 55405-47070 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2009-04 → 2011-12
ended
|
ZVW30 RHD EUR | — | |
| 55405-47080 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2009-04 → 2011-12
ended
|
ZVW30 LHD | — | |
| 55405-47080 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2009-04 → 2011-12
ended
|
ZVW30 LHD | — | |
| 55405-47100 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2011-12 → 2012-10
ended
|
ZVW30 RHD EUR | — | |
| 55405-47110 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2011-12 → —
|
ZVW30 LHD | — | |
| 55406B — Panel Sub-assy, Instrument Cluster Finish, Lower Center | ||||
| 55406-47080-B0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2009-04 → 2011-12
ended
|
ZVW30 RHD (ARL,EUR) | — | |
| 55406-47080-G0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2009-04 → 2011-12
ended
|
ZVW30 RHD (ARL,EUR) | — | |
| 55406-47090-B0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2009-04 → 2011-12
ended
|
ZVW30 LHD | — | |
| 55406-47090-G0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2009-04 → 2011-12
ended
|
ZVW30 LHD | — | |
| 55406-47080-B0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2010-12 → 2012-04
ended
|
ZVW30 TH | — | |
| 55406-47080-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2011-12 → 2015-11
ended
|
ZVW30 RHD (ARL,EUR) | — | |
| 55406-47080-G0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2011-12 → 2015-11
ended
|
ZVW30 RHD (ARL,EUR) | — | |
| 55406-47090-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2011-12 → 2015-11
ended
|
ZVW30 LHD | — | |
| 55406-47090-G0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2011-12 → 2015-11
ended
|
ZVW30 LHD | — | |
| 55406-47080-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2012-04 → —
|
ZVW30 TH | — | |
| 55434B — Panel, Instrument Panel Finish, Lower Center | ||||
| 55434-47050-B0 note |
Panel, Instrument Panel Finish, Lower Center
2009-04 → 2011-12
ended
|
ZVW30 RHD (ARL,EUR) | — | |
| 55434-47050-G0 note |
Panel, Instrument Panel Finish, Lower Center
2009-04 → 2011-12
ended
|
ZVW30 RHD (ARL,EUR) | — | |
| 55434-47060-B0 note |
Panel, Instrument Panel Finish, Lower Center
2009-04 → 2011-12
ended
|
ZVW30 LHD | — | |
| 55434-47060-G0 note |
Panel, Instrument Panel Finish, Lower Center
2009-04 → 2011-12
ended
|
ZVW30 LHD | — | |
| 55434-47050-B0 note |
Panel, Instrument Panel Finish, Lower Center
2010-12 → 2012-04
ended
|
ZVW30 TH | — | |
| 55434-47050-C0 note |
Panel, Instrument Panel Finish, Lower Center
2011-12 → 2015-11
ended
|
ZVW30 RHD (ARL,EUR) | — | |
| 55434-47050-G0 note |
Panel, Instrument Panel Finish, Lower Center
2011-12 → 2015-11
ended
|
ZVW30 RHD (ARL,EUR) | — | |
| 55434-47060-C0 note |
Panel, Instrument Panel Finish, Lower Center
2011-12 → 2015-11
ended
|
ZVW30 LHD | — | |
| 55434-47060-G0 note |
Panel, Instrument Panel Finish, Lower Center
2011-12 → 2015-11
ended
|
ZVW30 LHD | — | |
| 55434-47050-C0 note |
Panel, Instrument Panel Finish, Lower Center
2012-04 → —
|
ZVW30 TH | — | |
| 55474B — Garnish, Instrument Cluster Finish Panel | ||||
| 55474-47050 |
Garnish, Instrument Cluster Finish Panel
2009-04 → 2011-12
ended
|
ZVW30 RHD (ARL,EUR) | — | |
| 55474-47070 |
Garnish, Instrument Cluster Finish Panel
2009-04 → 2011-12
ended
|
ZVW30 LHD | — | |
| 55474-47050 |
Garnish, Instrument Cluster Finish Panel
2010-12 → 2012-04
ended
|
ZVW30 TH | — | |
| 55474-47120 |
Garnish, Instrument Cluster Finish Panel
2011-12 → —
|
ZVW30 RHD (ARL,EUR) | — | |
| 55474-47140 |
Garnish, Instrument Cluster Finish Panel
2011-12 → —
|
ZVW30 LHD | — | |
| 55474-47120 |
Garnish, Instrument Cluster Finish Panel
2012-04 → —
|
ZVW30 TH | — | |
| 55522B — Cover, Radio Tuner Opening | ||||
| 55522-52020 note |
Cover, Radio Tuner Opening
2009-04 → 2011-12
ended
|
ZVW30 EUR | — | |
| 55522-52020 note |
Cover, Radio Tuner Opening
2011-12 → 2012-10
ended
|
ZVW30 RHD EUR | — | |
| 55522-52020 note |
Cover, Radio Tuner Opening
2011-12 → —
|
ZVW30 LHD | — | |
| 55620E — Holder Assy, Instrument Panel Cup | ||||
| 55620-47020-B0 note |
Holder Assy, Instrument Panel Cup
2009-04 → 2011-12
ended
|
ZVW30 RHD (ARL,EUR) | — | |
| 55620-47020-G0 note |
Holder Assy, Instrument Panel Cup
2009-04 → 2011-12
ended
|
ZVW30 RHD (ARL,EUR) | — | |
| 55620-47030-B0 note |
Holder Assy, Instrument Panel Cup
2009-04 → 2011-12
ended
|
ZVW30 LHD | — | |
| 55620-47030-G0 note |
Holder Assy, Instrument Panel Cup
2009-04 → 2011-12
ended
|
ZVW30 LHD | — | |
| 55620-47020-B0 note |
Holder Assy, Instrument Panel Cup
2010-12 → 2012-04
ended
|
ZVW30 TH | — | |
| 55620-47020-C0 note |
Holder Assy, Instrument Panel Cup
2011-12 → 2015-11
ended
|
ZVW30 RHD (ARL,EUR) | — | |
| 55620-47020-G0 note |
Holder Assy, Instrument Panel Cup
2011-12 → 2015-11
ended
|
ZVW30 RHD (ARL,EUR) | — | |
| 55620-47030-C0 note |
Holder Assy, Instrument Panel Cup
2011-12 → 2015-11
ended
|
ZVW30 LHD | — | |
| 55620-47030-G0 note |
Holder Assy, Instrument Panel Cup
2011-12 → 2015-11
ended
|
ZVW30 LHD | — | |
| 55620-47020-C0 note |
Holder Assy, Instrument Panel Cup
2012-04 → —
|
ZVW30 TH | — | |
| 55643 — Pad, Instrument Panel Under Silencer, NO.1 | ||||
| 55643-47050 |
Pad, Instrument Panel Under Silencer, NO.1
2009-04 → 2011-12
ended
|
ZVW30 ARL,EUR | — | |
| 55643-47050 |
Pad, Instrument Panel Under Silencer, NO.1
2010-12 → 2012-04
ended
|
ZVW30 TH | — | |
| 55643-47050 |
Pad, Instrument Panel Under Silencer, NO.1
2011-12 → —
|
ZVW30 ARL,EUR | — | |
| 55643-47050 |
Pad, Instrument Panel Under Silencer, NO.1
2012-04 → —
|
ZVW30 TH | — | |
| 55670A — Register Assy, Instrument Panel, Center | ||||
| 55670-47070 |
Register Assy, Instrument Panel, Center
2009-04 → 2011-12
ended
|
ZVW30 LHD | — | |
| 55670-47080 |
Register Assy, Instrument Panel, Center
2009-04 → 2011-12
ended
|
ZVW30 RHD (ARL,EUR) | — | |
| 55670-47080 |
Register Assy, Instrument Panel, Center
2010-12 → 2012-04
ended
|
ZVW30 TH | — | |
| 55670-47120 |
Register Assy, Instrument Panel, Center
2011-12 → —
|
ZVW30 LHD | — | |
| 55670-47130 |
Register Assy, Instrument Panel, Center
2011-12 → —
|
ZVW30 RHD (ARL,EUR) | — | |
| 55670-47130 |
Register Assy, Instrument Panel, Center
2012-04 → —
|
ZVW30 TH | — | |
| 58959E — Cushion, Console Compartment Door | ||||
| 58959-60060 |
Cushion, Console Compartment Door
2009-04 → 2011-12
ended
|
ZVW30 ARL,EUR | — | |
| 58959-60060 |
Cushion, Console Compartment Door
2010-12 → 2012-04
ended
|
ZVW30 TH | — | |
| 58959-60060 |
Cushion, Console Compartment Door
2011-12 → —
|
ZVW30 ARL,EUR | — | |
| 58959-60060 |
Cushion, Console Compartment Door
2012-04 → —
|
ZVW30 TH | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
