Toyota Prius

2009-04 → 2015-11 · chassis ZVW30 · catalogue 222230 · Europe

Supported model Data version 2016-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Standard Tool

9 part groups · 2 illustrations

Illustrations

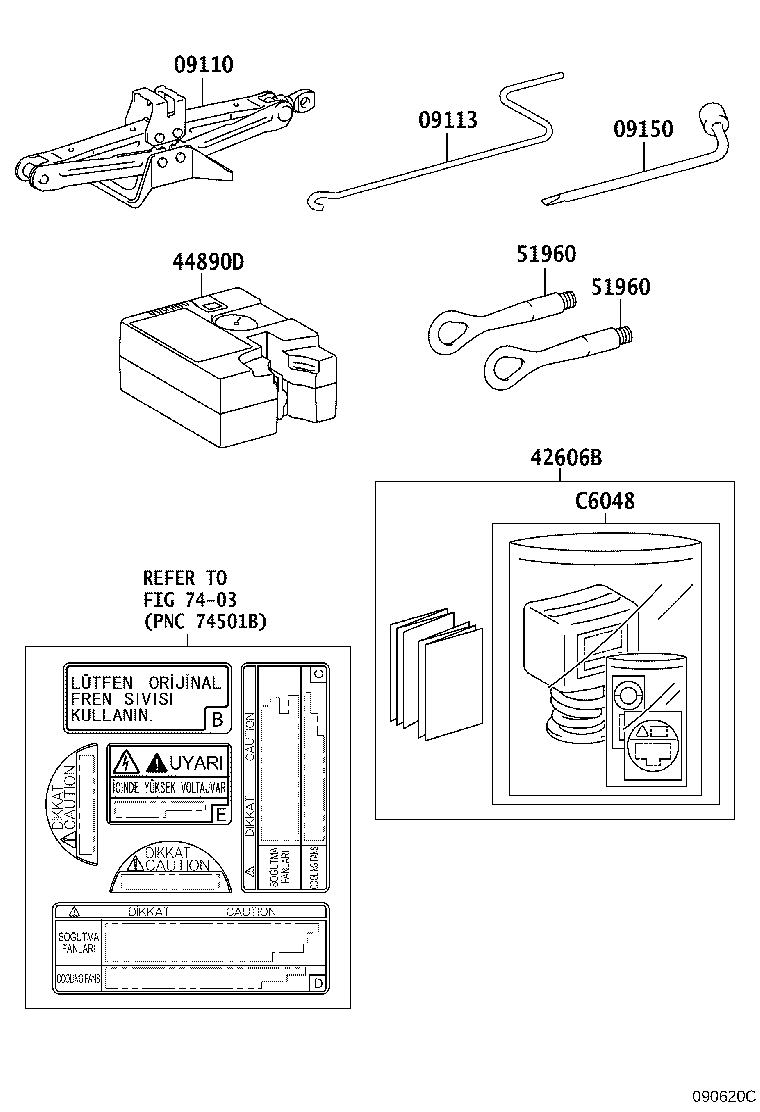

Figure 090519B 090519B 2009-04 → 2011-12 Figure 090620C 090620C 2011-12 → —

Part groups

PNCDescription
09110 Jack Assy
09113 Handle, Jack
09150 Wrench, Hub Nut Box
42606B Repair Kit, Tubeless Tire
42683 Seal, Tire Repair
44890D Compressor Assy, Air
51960 Hook Assy, Front
C6048 Repair Set, Tire
C6048A Sealant, Repair Tire
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
