Toyota Prius

2009-04 → 2015-11 · chassis ZVW30 · catalogue 222230 · Europe

Supported model Data version 2016-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

9 part groups · 6 illustrations

Illustrations

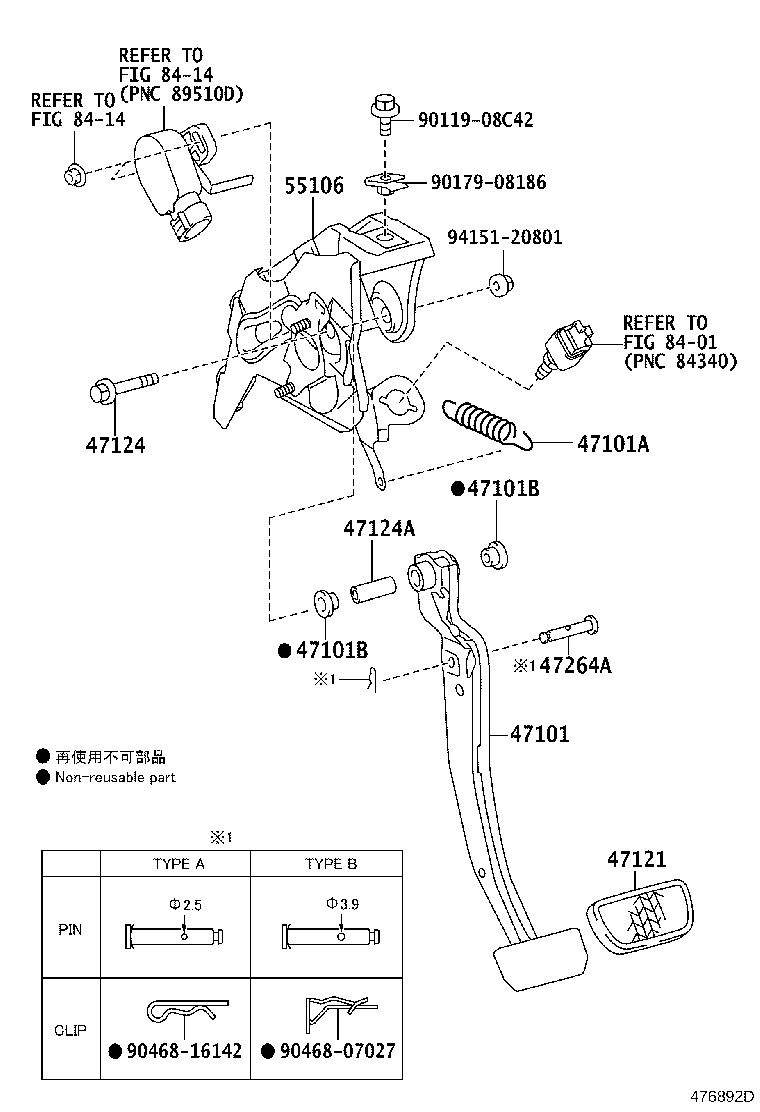

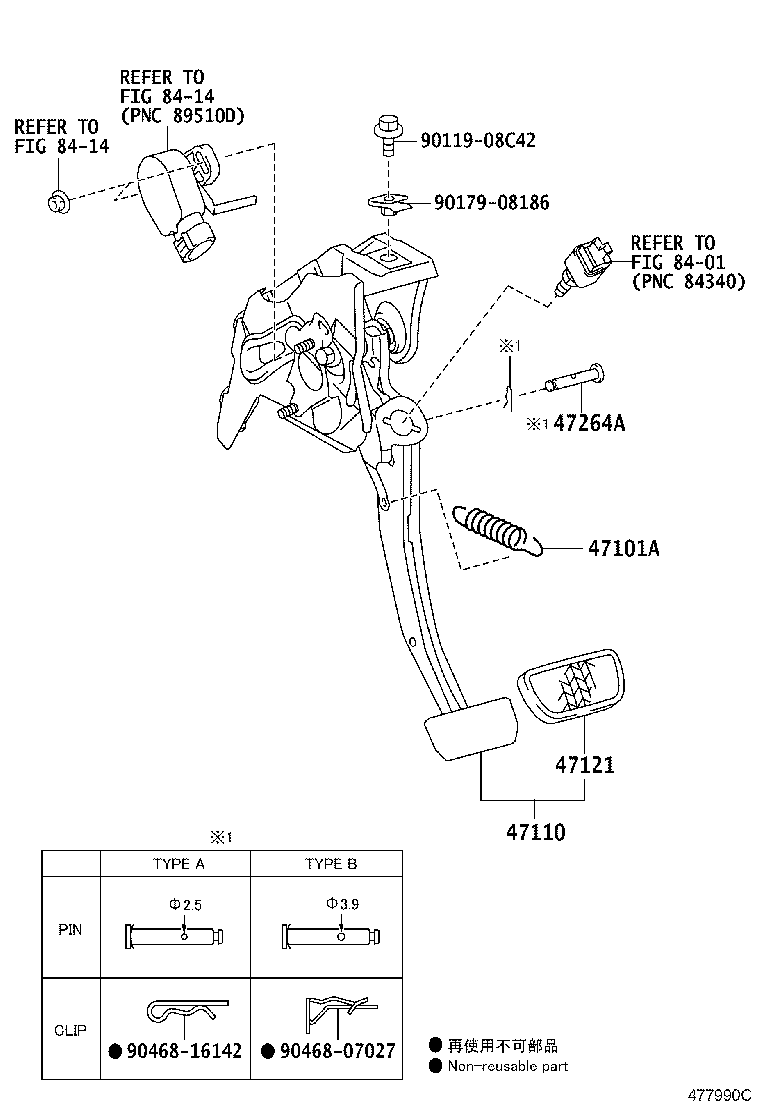

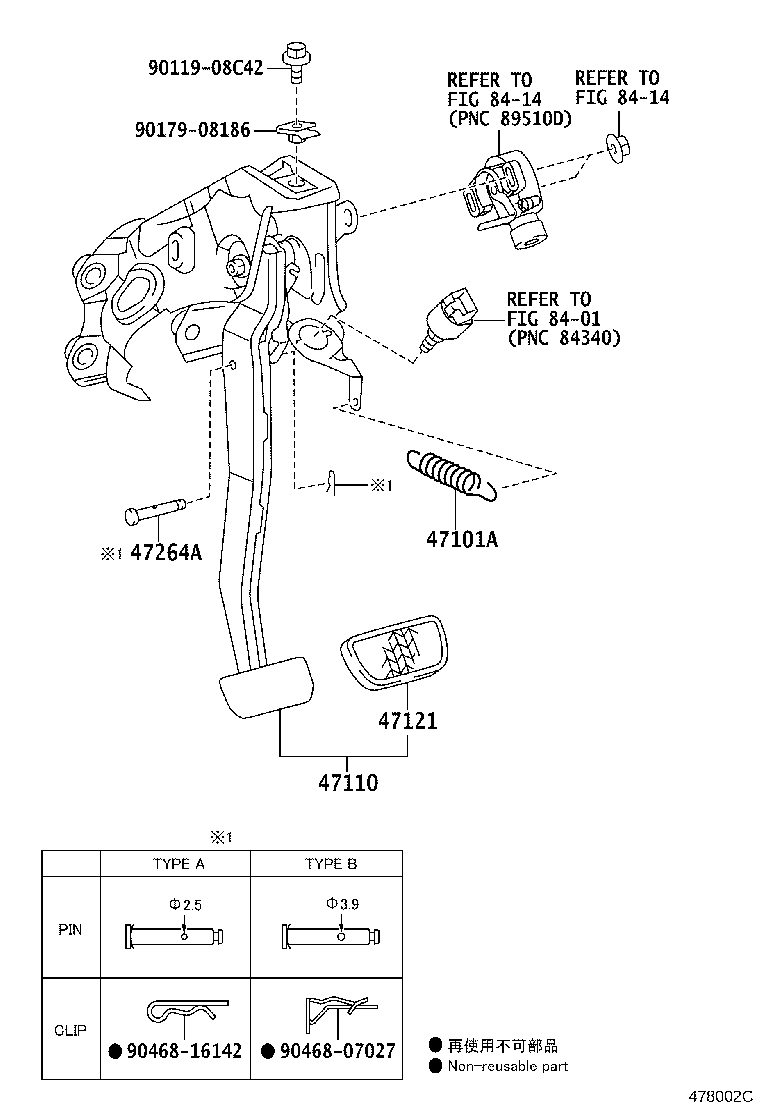

Figure 476891F 476891F 2009-04 → 2011-12 Figure 476891F 476891F 2010-12 → 2012-04 Figure 476892D 476892D 2009-04 → 2011-12 Figure 478002C 478002C 2011-12 → — Figure 478002C 478002C 2012-04 → — Figure 477990C 477990C 2011-12 → —

Part groups

PNCDescription
47101 Pedal Sub-assy, Brake
47101A Spring(FOR BRAKE PEDAL RETURN)
47101B Bush(FOR BRAKE PEDAL)
47110 Support Assy, Brake Pedal
47121 Pad, Brake Pedal
47124 Shaft, Brake Pedal
47124A Collar(FOR BRAKE PEDAL SHAFT)
47264A Pin(FOR PUSH ROD)
55106 Support Sub-assy, Brake Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
