Toyota Prius

2009-04 → 2015-11 · chassis ZVW30 · catalogue 222230 · Europe

Supported model Data version 2016-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

8 part groups · 2 illustrations

Illustrations

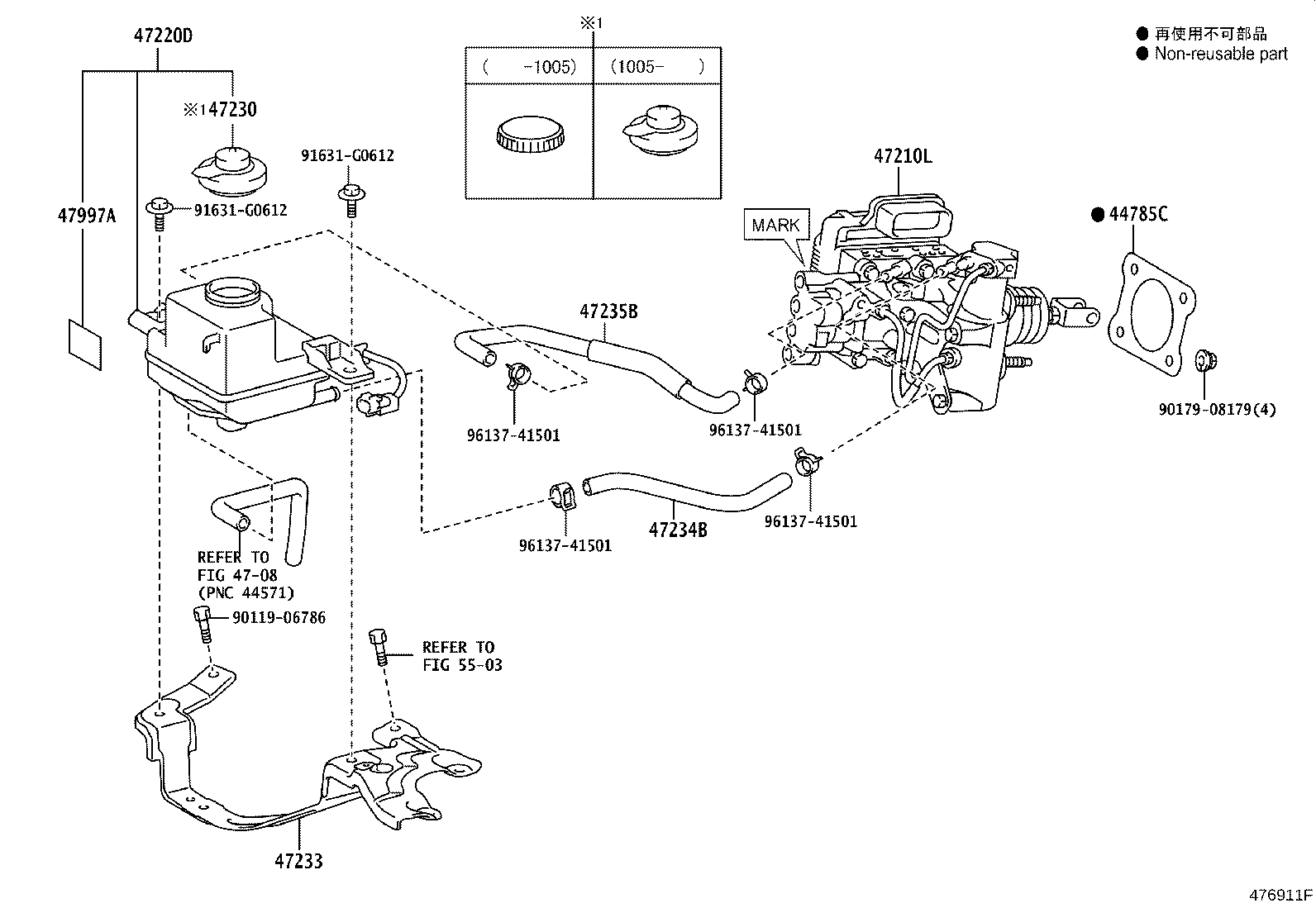

Figure 47B110B 47B110B 2009-04 → — Figure 476911F 476911F 2009-04 → —

Part groups

PNCDescription
44785C Gasket, Brake Booster
47210L Brake Booster Assy, W/Master Cylinder
47220D Reservoir Assy, Brake Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47233 Bracket, Reservoir
47234B Tube, Reservoir, NO.1
47235B Tube, Brake Master Cyrinder Reservoir, NO.2
47997A Label, Accumulator Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
