Toyota Prius

2009-04 → 2015-11 · chassis ZVW30 · catalogue 222230 · Europe

Supported model Data version 2016-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

26 part groups · 2 illustrations

Illustrations

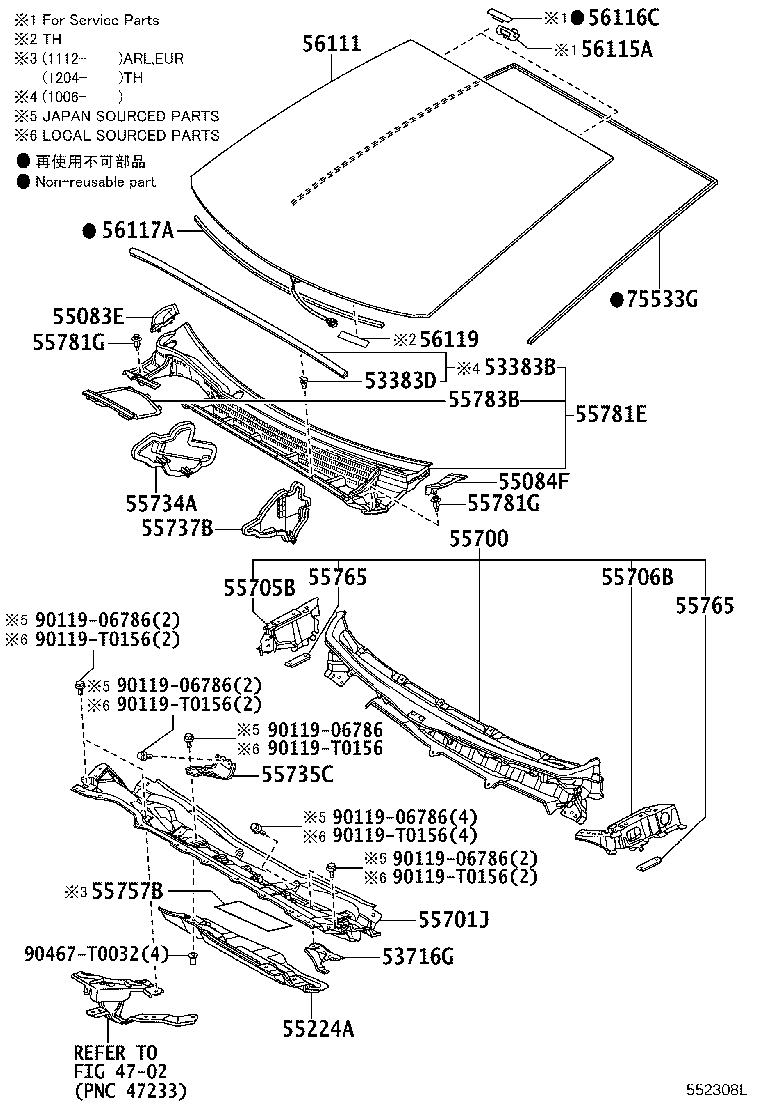

Figure 552306I 552306I 2009-04 → — Figure 552308L 552308L 2009-04 → —

Part groups

PNCDescription
53383B Seal, Hood TO Cowl Top
53383D Clip(FOR HOOD TO COWL TOP SEAL)
53715G Extension, Front Fender Apron, Rear RH
53716G Extension, Front Fender Apron, Rear LH
55083E Ventilator Sub-assy, Cowl Side, RH
55084F Ventilator Sub-assy, Cowl Side, LH
55224A Insulator, Dash Panel, Outer NO.2
55700 Panel Assy, Front
55701J Panel Sub-assy, Cowl Top, Outer
55705B Panel Sub-assy, Cowl Top Side, RH
55706B Panel Sub-assy, Cowl Top Side, LH
55734A Plate, Water Guard, RH
55735C Reinforcement, Cowl Body Mounting, RH
55736D Reinforcement, Cowl Body Mounting, LH
55737B Seal, Heater Air Duct Splash Shield, NO.1
55757B Sheet Cowl Top Insulator
55765 Bracket, Hood Damper Mounting
55781E Louver Sub-assy, Cowl Top Ventilator
55781G Clip, Cowl Top Ventilator Louver
55783B Louver, Cowl Top Ventilator, Center NO.1
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
56119 Seal, Windshield Glass
75533G Moulding, Windshield, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
