Toyota Prius

2009-04 → 2015-11 · chassis ZVW30 · catalogue 222230 · Europe

Supported model Data version 2016-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

13 part groups · 4 illustrations

Illustrations

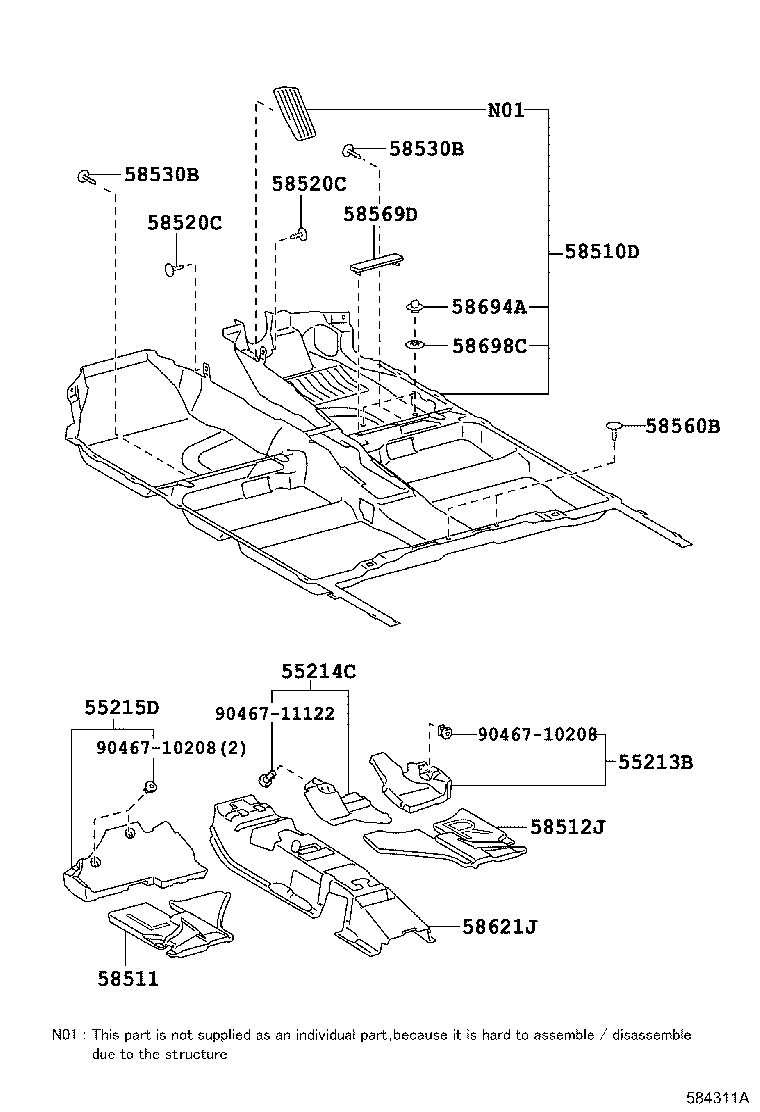

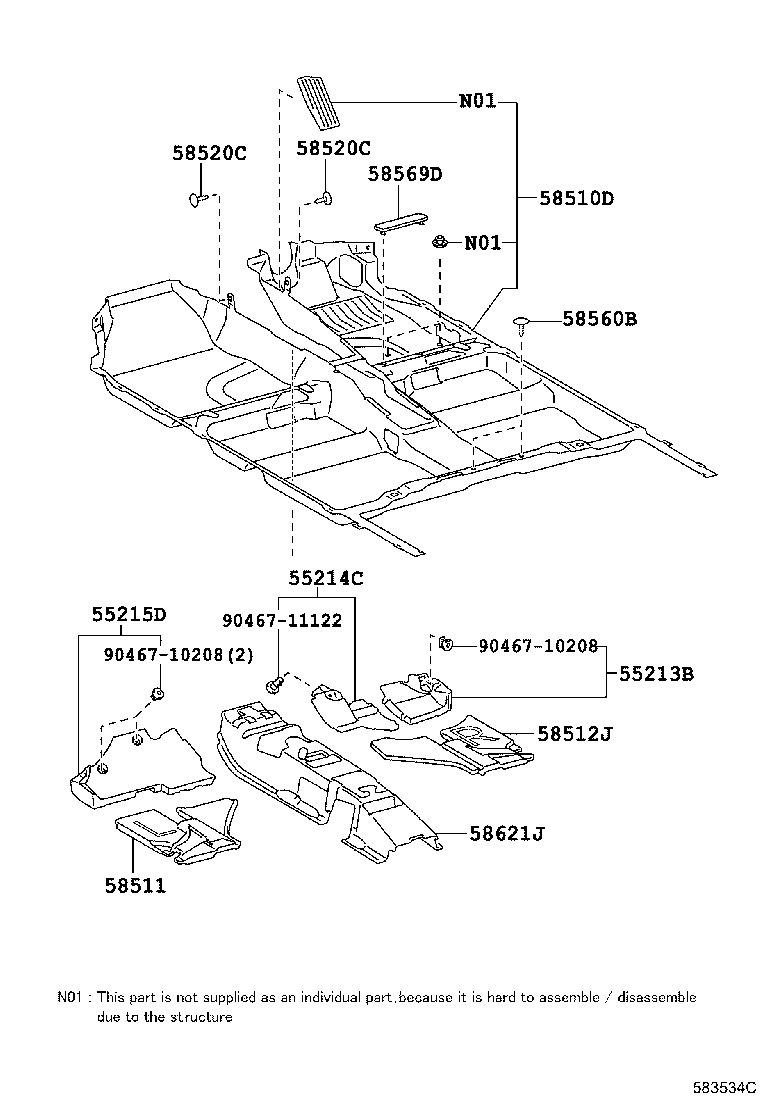

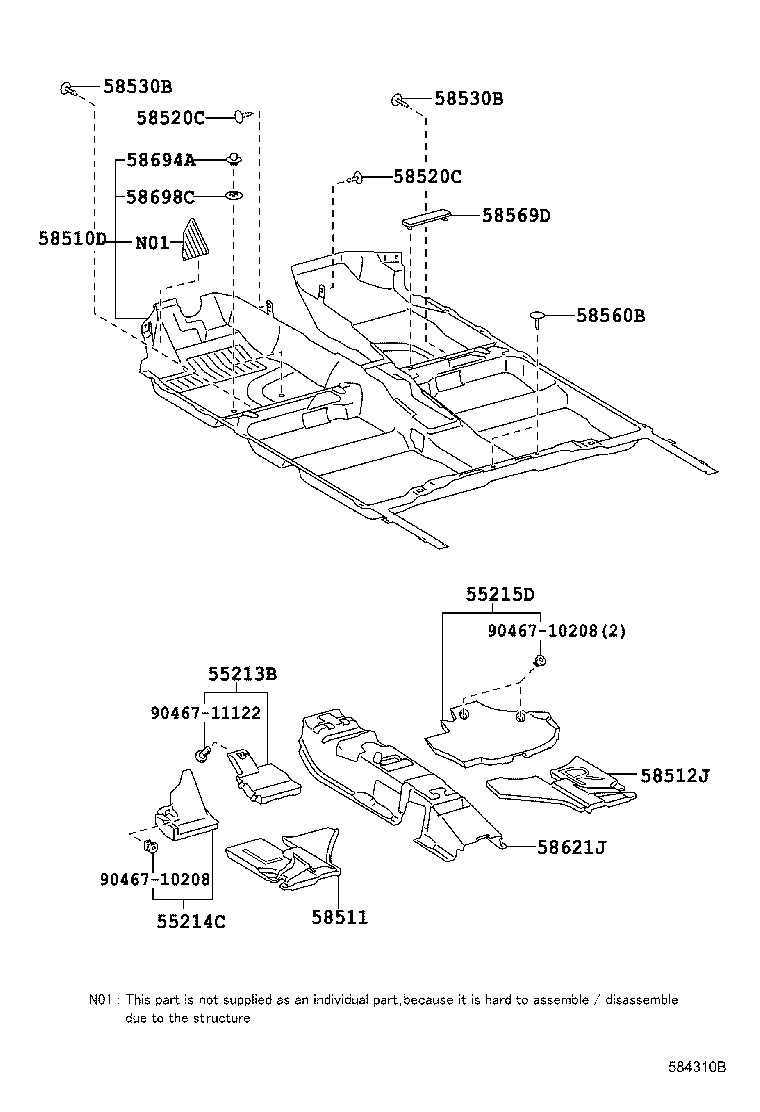

Figure 583535C 583535C 2009-04 → 2011-12 Figure 583534C 583534C 2009-04 → 2011-12 Figure 584310B 584310B 2011-12 → — Figure 584311A 584311A 2011-12 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58510D Carpet Assy, Floor, Front
58511 Mat, Floor, Front
58512J Mat, Floor, NO.2
58520C Clip(FOR FRONT FLOOR CARPET)
58530B Clip(FOR FRONT FLOOR CARPET)
58560B Clip(FOR FLOOR CARPET, REAR)
58569D Cover, Front Floor Caution Plate
58621J Silencer, Center Console, NO.1
58694A Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
