Toyota Prius

2009-04 → 2015-11 · chassis ZVW30 · catalogue 222230 · Europe

Supported model Data version 2016-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

31 part groups · 6 illustrations

Illustrations

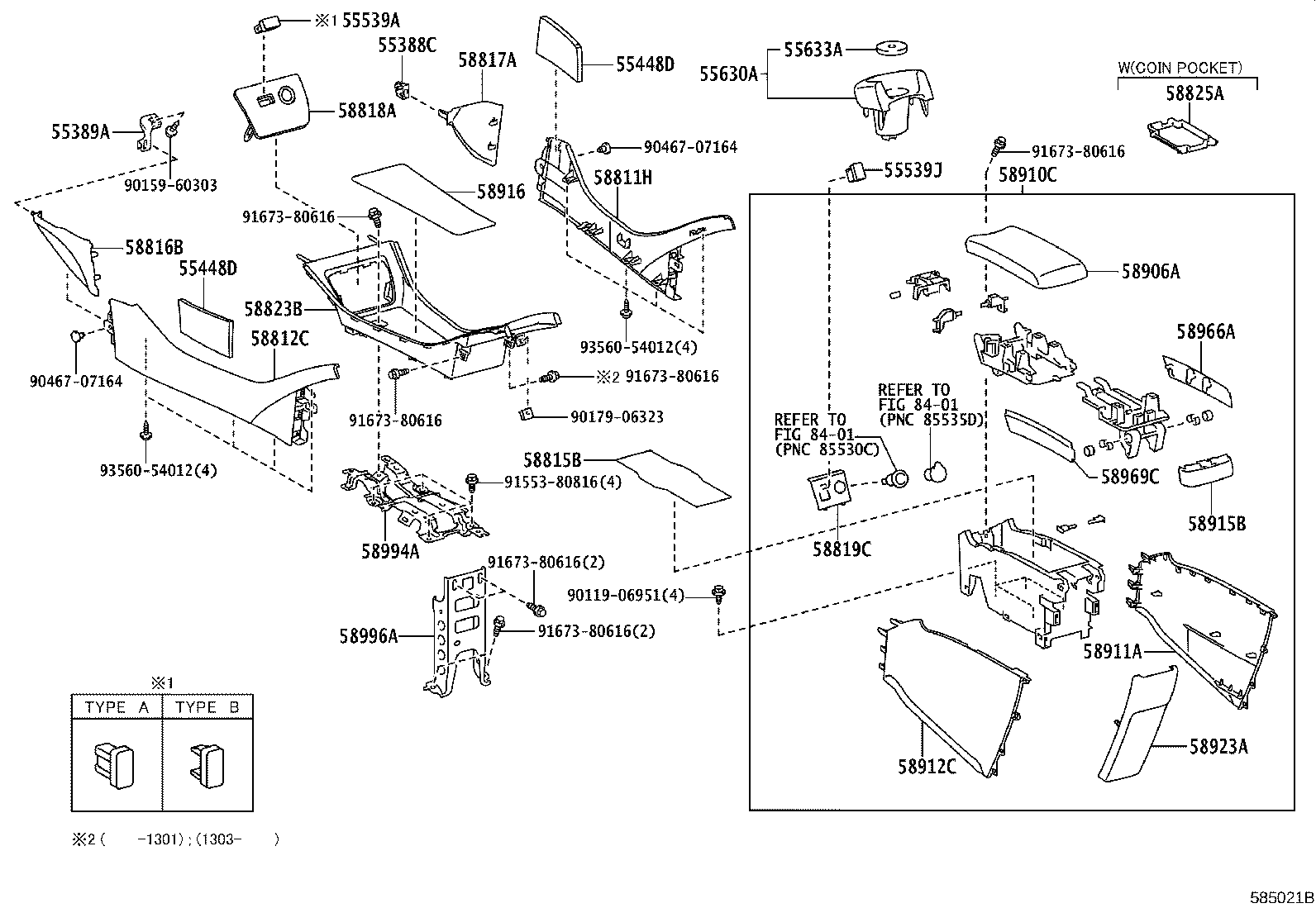

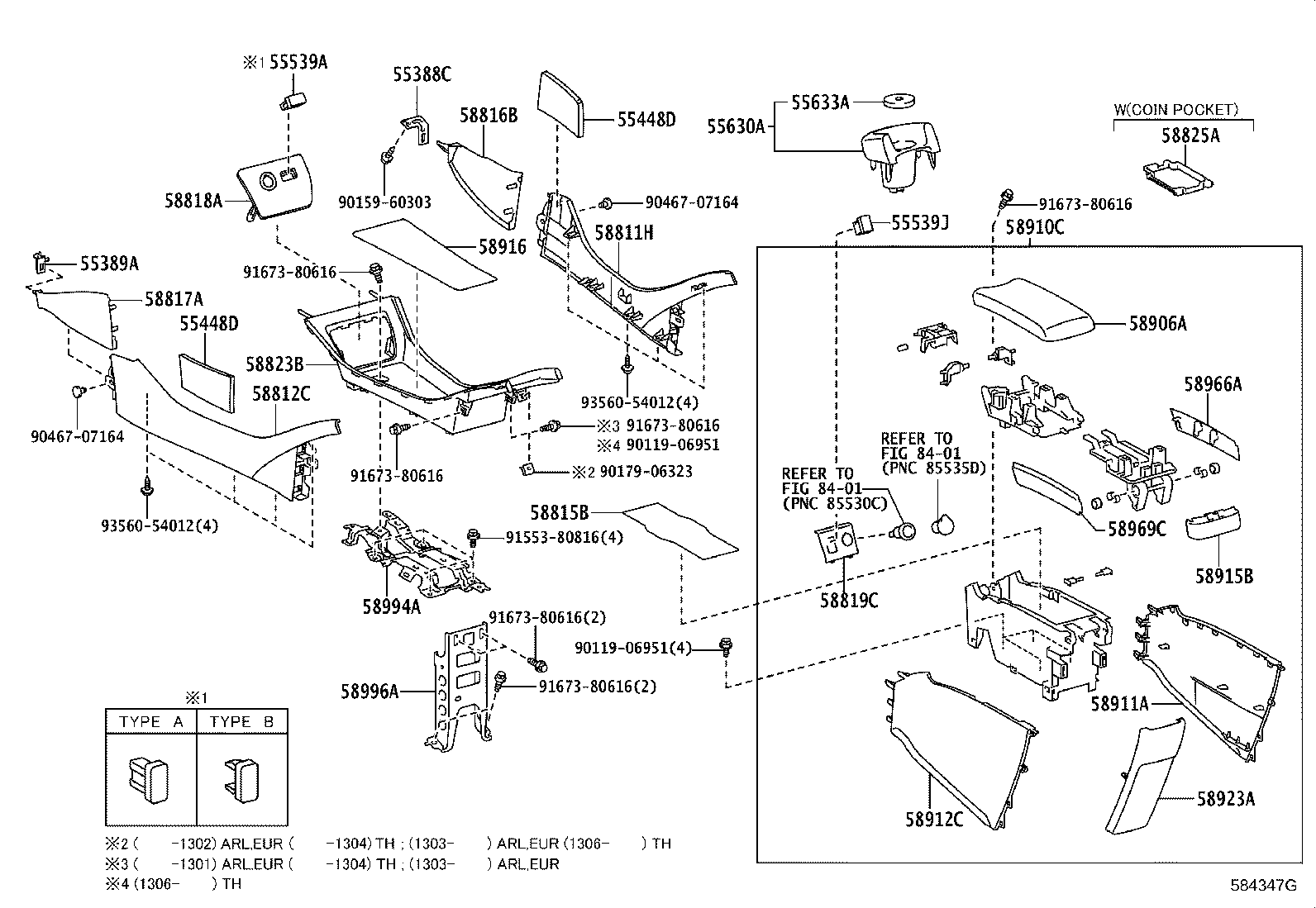

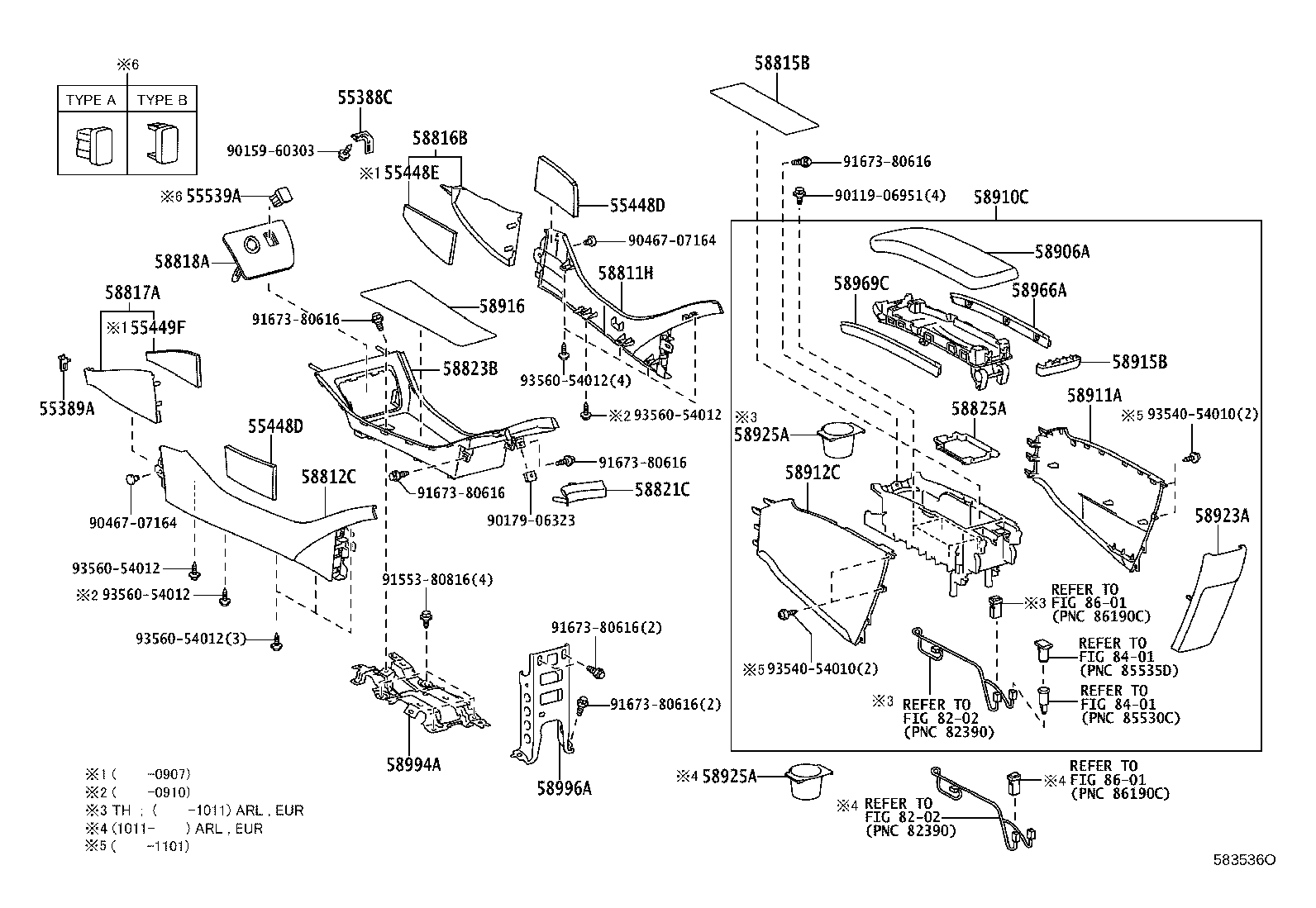

Figure 583656M 583656M 2009-04 → 2011-12 Figure 583536O 583536O 2009-04 → 2011-12 Figure 583536O 583536O 2010-12 → 2012-04 Figure 585021B 585021B 2011-12 → — Figure 584347G 584347G 2011-12 → — Figure 584347G 584347G 2012-04 → —

Part groups

PNCDescription
55388C Bracket, Console Mounting, RH
55389A Bracket, Console Mounting, LH
55448D Cushion, Instrument Panel Finish Panel, NO.1
55448E Cushion, Instrument Panel Finish Panel, NO.1
55449F Cushion, Instrument Panel Finish Panel, NO.2
55539A Cover, Spare Switch Hole
55539J Cover, Spare Switch Hole
55630A Holder, Rear Console Box, Cup
55633A Support, Instrument Panel Cup Holder, NO.1
58811H Box, Console, RH
58812C Box, Console, LH
58815B Carpet, Console Box
58816B Insert, Console Box
58817A Insert, Console Box, Front NO.2
58818A Cover, Console Box, FR
58819C Filler, Console Box, Front
58821C Panel, Console, Upper
58823B Box, Console Compartment
58825A Pocket, Console Box
58906A Pad Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58911A Panel, Box Side, NO.1
58912C Panel, Box Side, NO.2
58915B Cover, Console Compartment Door Box, Rear
58916 Mat, Box Bottom
58923A Panel, Console Rear End
58925A Pocket, Console Box, Rear
58966A Insert, Console Compartment Door, NO.1
58969C Insert, Console Compartment Door, NO.2
58994A Bracket, Console Box Mounting, NO.4
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
