Toyota Prius
2009-04 → 2015-11 · chassis ZVW30 · catalogue 222230 · Europe
Supported model
Data version 2016-05

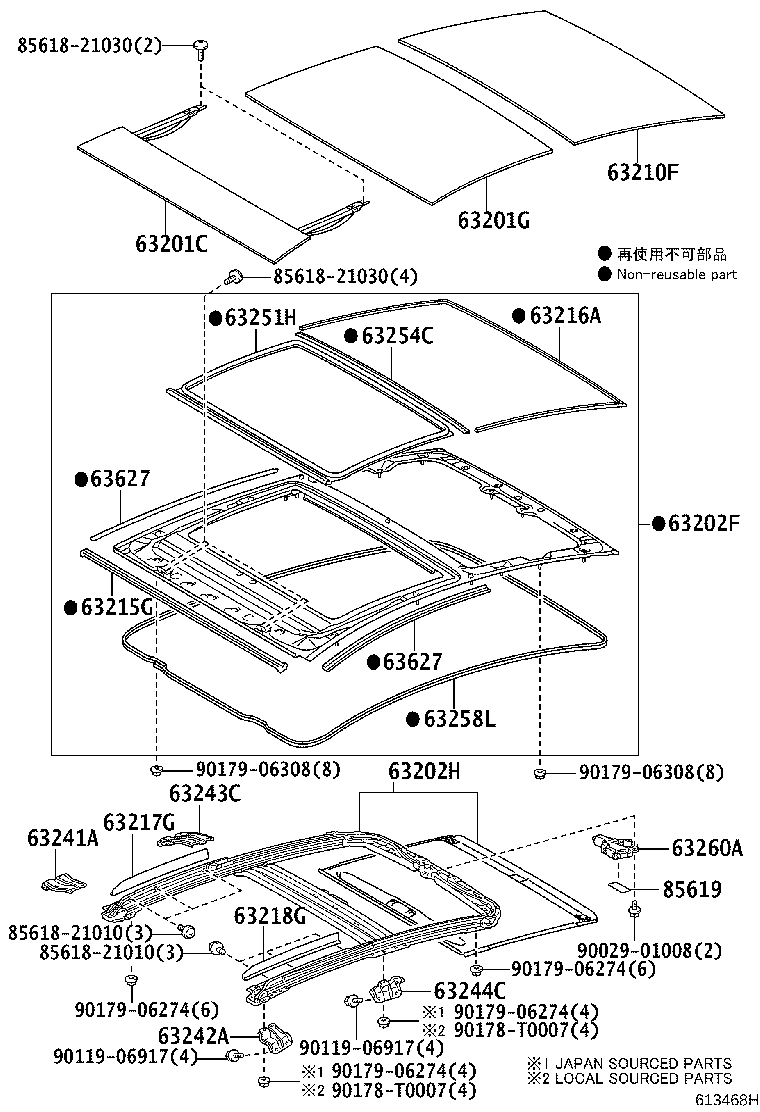

Roof Panel & Back Window Glass
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 61247F | Reinforcement, Roof Side Rail, Inner |
| 61824A | Plate, Noise Control, NO.1 |
| 63102A | Panel Sub-assy, Windshield Header |
| 63103A | Reinforcement Sub-assy, Roof Panel |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63111 | Panel, Roof |
| 63142A | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144B | Reinforcement, Roof Panel, NO.4 |
| 63169B | Plate, Roof Panel Reinforcement, RH |
| 63179 | Plate, Roof Panel Reinforcement, LH |
| 63201C | Glass Sub-assy, Tilt Roof |
| 63201G | Glass Sub-assy, Sliding Roof |
| 63202F | Panel Sub-assy, Slide Roof, Rear |
| 63202H | Rail Sub-assy, Slide Roof |
| 63210F | Glass Assy, Moon Roof |
| 63215G | Moulding, Moon Roof, Front |
| 63216A | Moulding, Moon Roof, Rear |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63241A | Bracket, Sliding Roof Housing Front Mounting, RH |
| 63242A | Bracket, Sliding Roof Housing Front Mounting, LH |
| 63243C | Bracket, Sliding Roof Housing Center Mounting, RH |
| 63244C | Bracket, Sliding Roof Housing Center Mounting, LH |
| 63251H | Weatherstrip, Sliding Roof |
| 63254C | Weatherstrip, Slide Roof, Rear |
| 63258L | Seal, Sliding Roof Glass |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63627 | Weatherstrip, Removable Roof, RH |
| 85619 | Cushion, Slide Roof Motor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
