Toyota Prius

2009-04 → 2015-11 · chassis ZVW30 · catalogue 222230 · Europe

Supported model Data version 2016-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

21 part groups · 5 illustrations

Illustrations

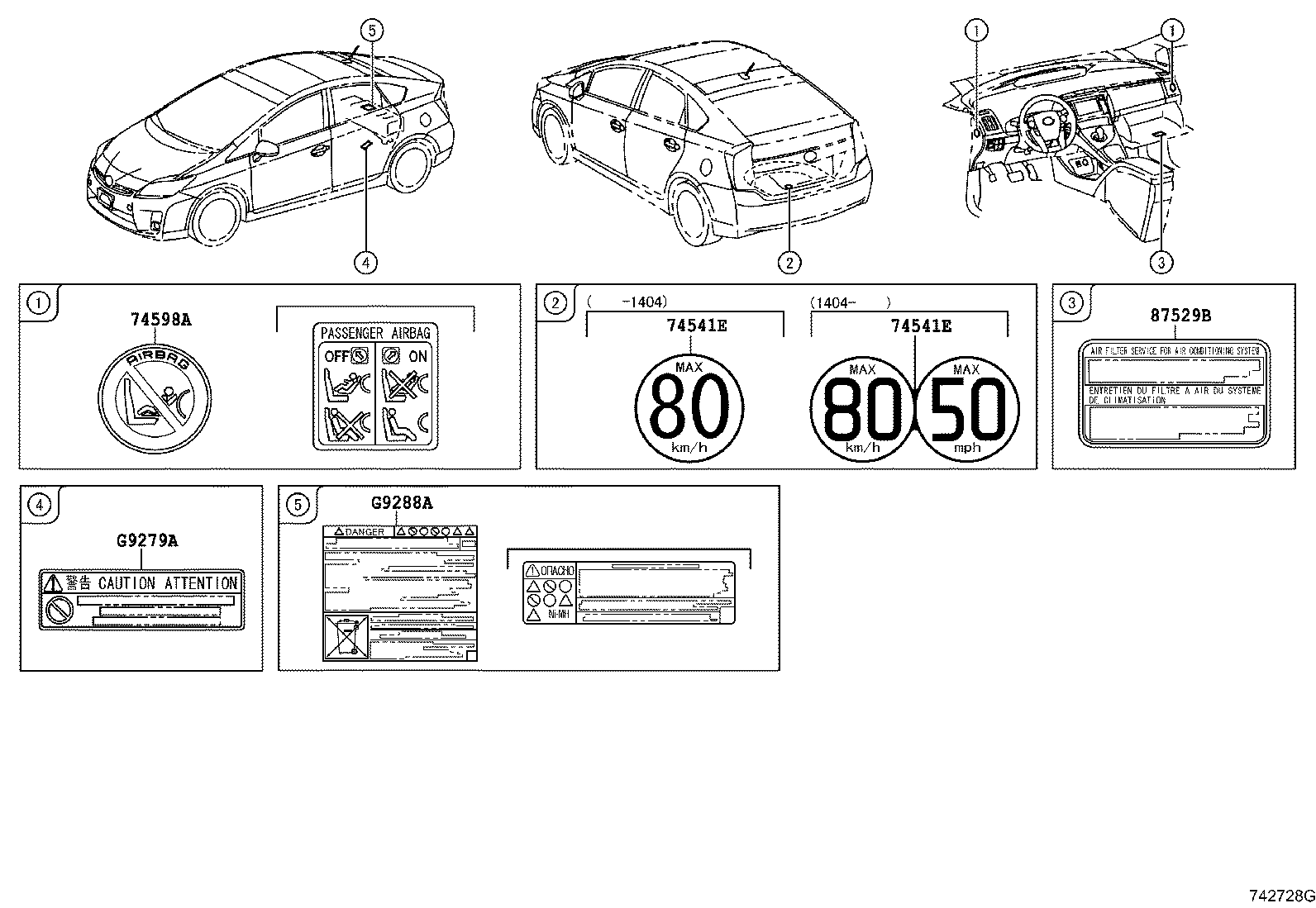

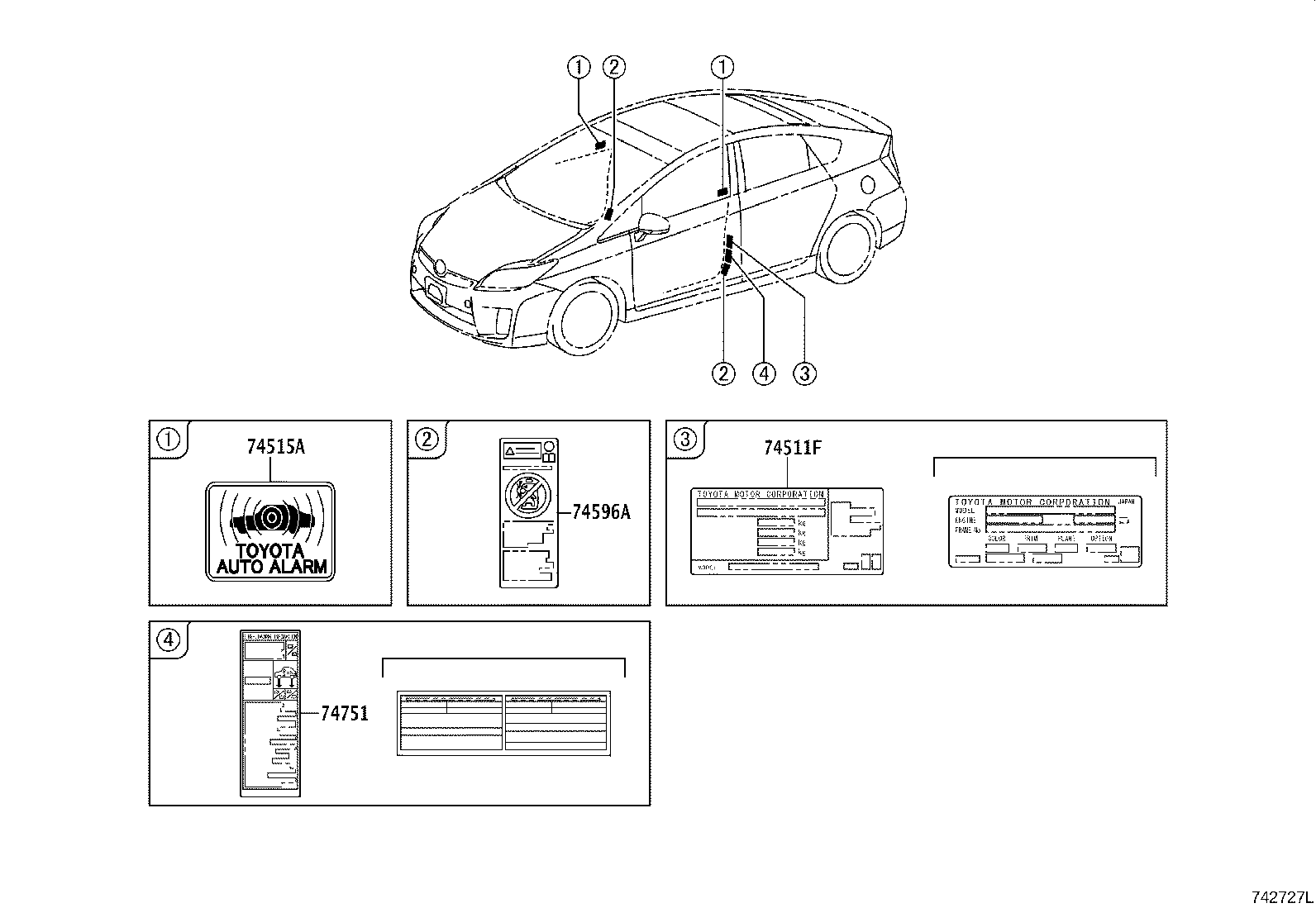

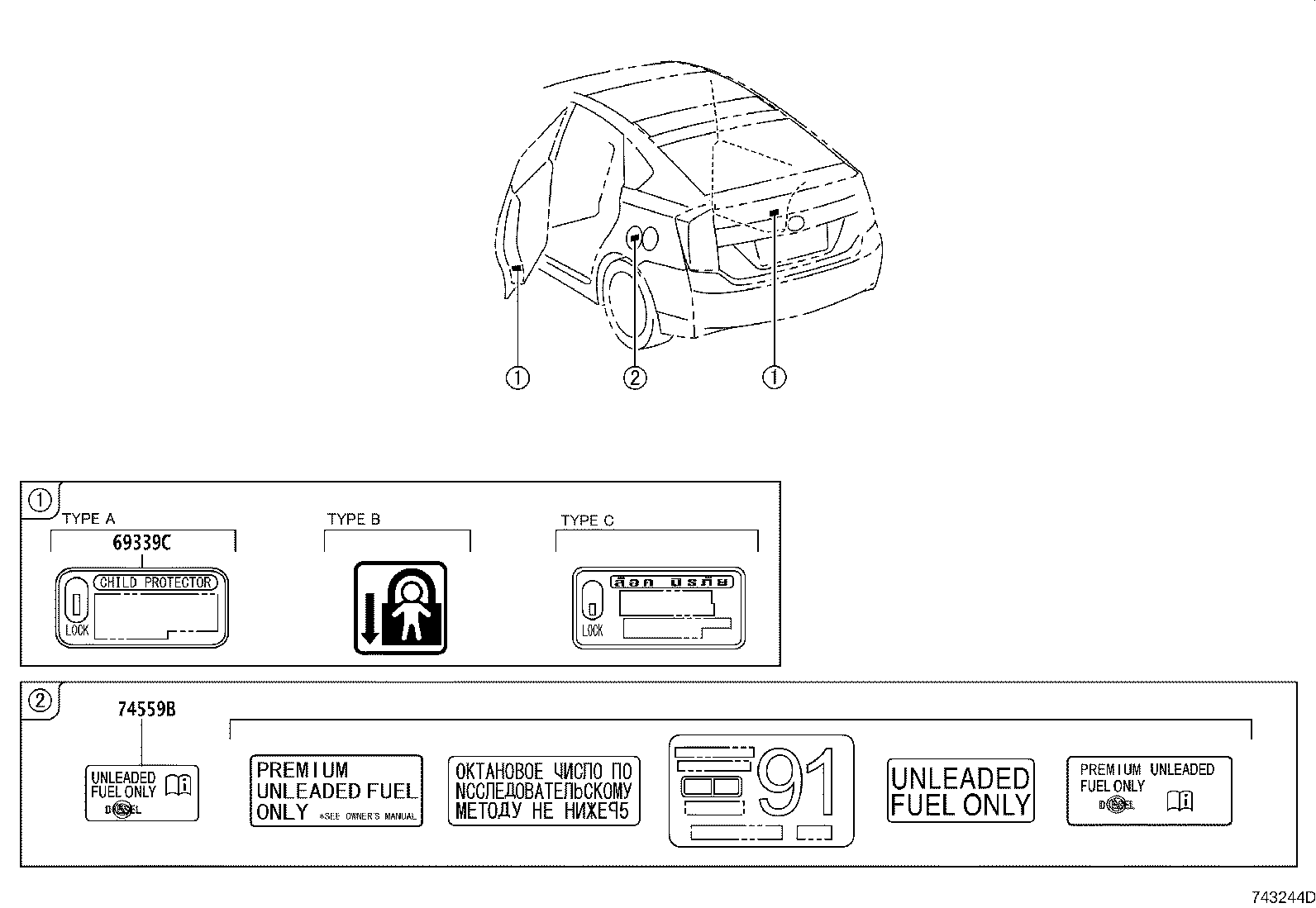

Figure 745483 745483 2009-04 → — Figure 742727L 742727L 2009-04 → — Figure 743244D 743244D 2009-04 → — Figure 742728G 742728G 2009-04 → — Figure 743496 743496 2012-10 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11291B Plate, Engine Name
11293D Label, Engine Caution
11298B Label, Emission Control Information
16793B Label, Cooling Fan Information
47288 Label, Brake Fluid Notice
69339C Label, Child Protector Information
74501B Label Set, Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515A Plate, Theft Warning
74541E Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
74596A Label, Side Airbag Caution
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
G9275 Label, Battery Caution, NO.1
G9279A Label, Battery Caution,NO.4
G9288A Label, Battery Carging Notice
G92A1 Label, Hybrid Coolant System Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
