Toyota Prius

2009-04 → 2015-11 · chassis ZVW30 · catalogue 222230 · Europe

Supported model Data version 2016-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

15 part groups · 4 illustrations

Illustrations

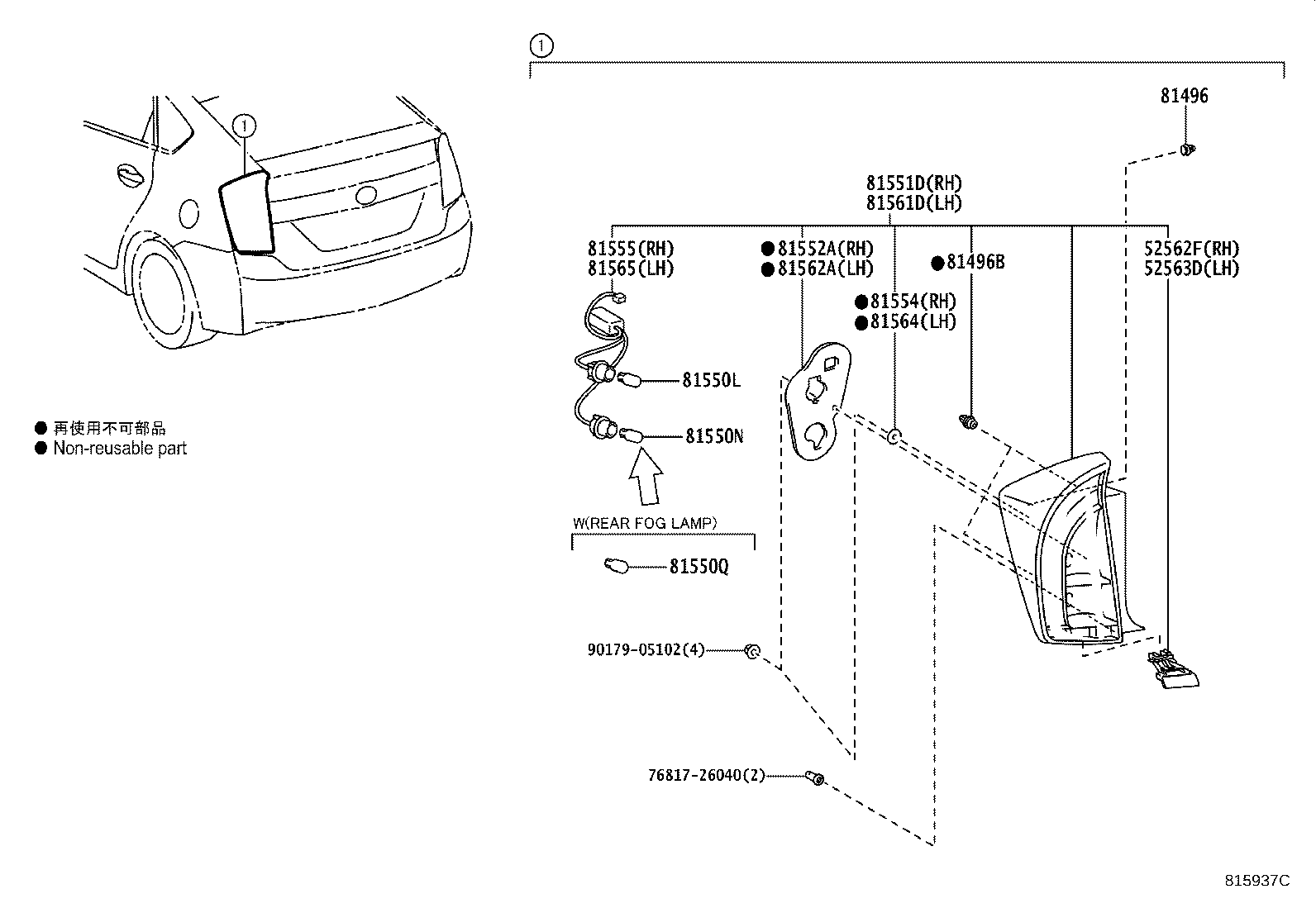

Figure 815001F 815001F 2009-04 → 2011-12 Figure 815001F 815001F 2010-12 → 2012-04 Figure 815937C 815937C 2011-12 → — Figure 815937C 815937C 2012-04 → —

Part groups

PNCDescription
52562F Retainer, Rear Bumper, Upper Side
52563D Retainer, Rear Bumper, Upper LH
81496 Guide, Rear Combination Lamp
81496B Guide, Rear Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81550Q Bulb, Rear Fog Lamp, NO.1
81551D Lens & Body, Rear Combination Lamp, RH
81552A Gasket, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81561D Lens & Body, Rear Combination Lamp, LH
81562A Gasket, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
