Toyota Prius

2009-04 → 2015-11 · chassis ZVW30 · catalogue 222230 · Europe

Supported model Data version 2016-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

91 part groups · 24 illustrations

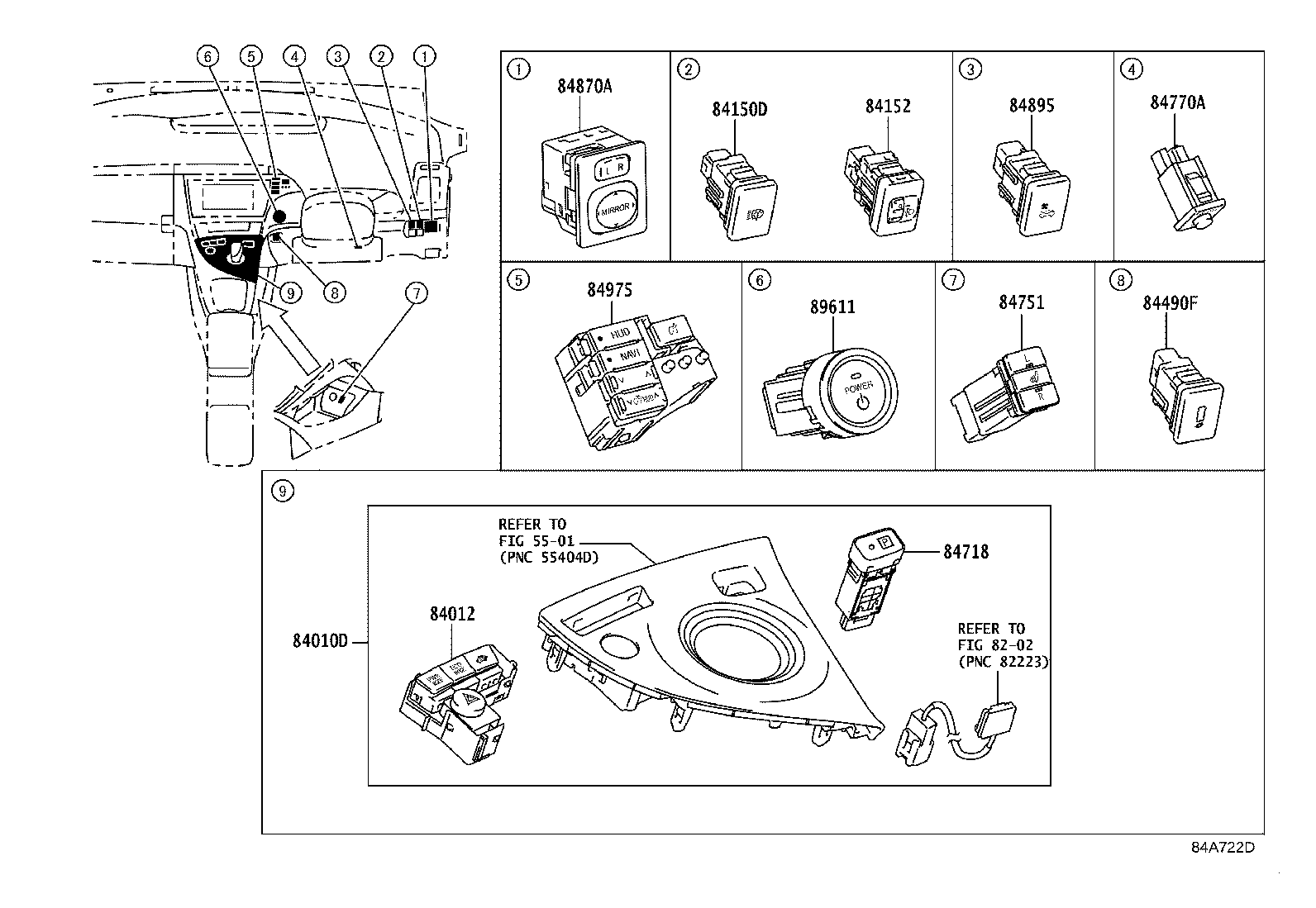

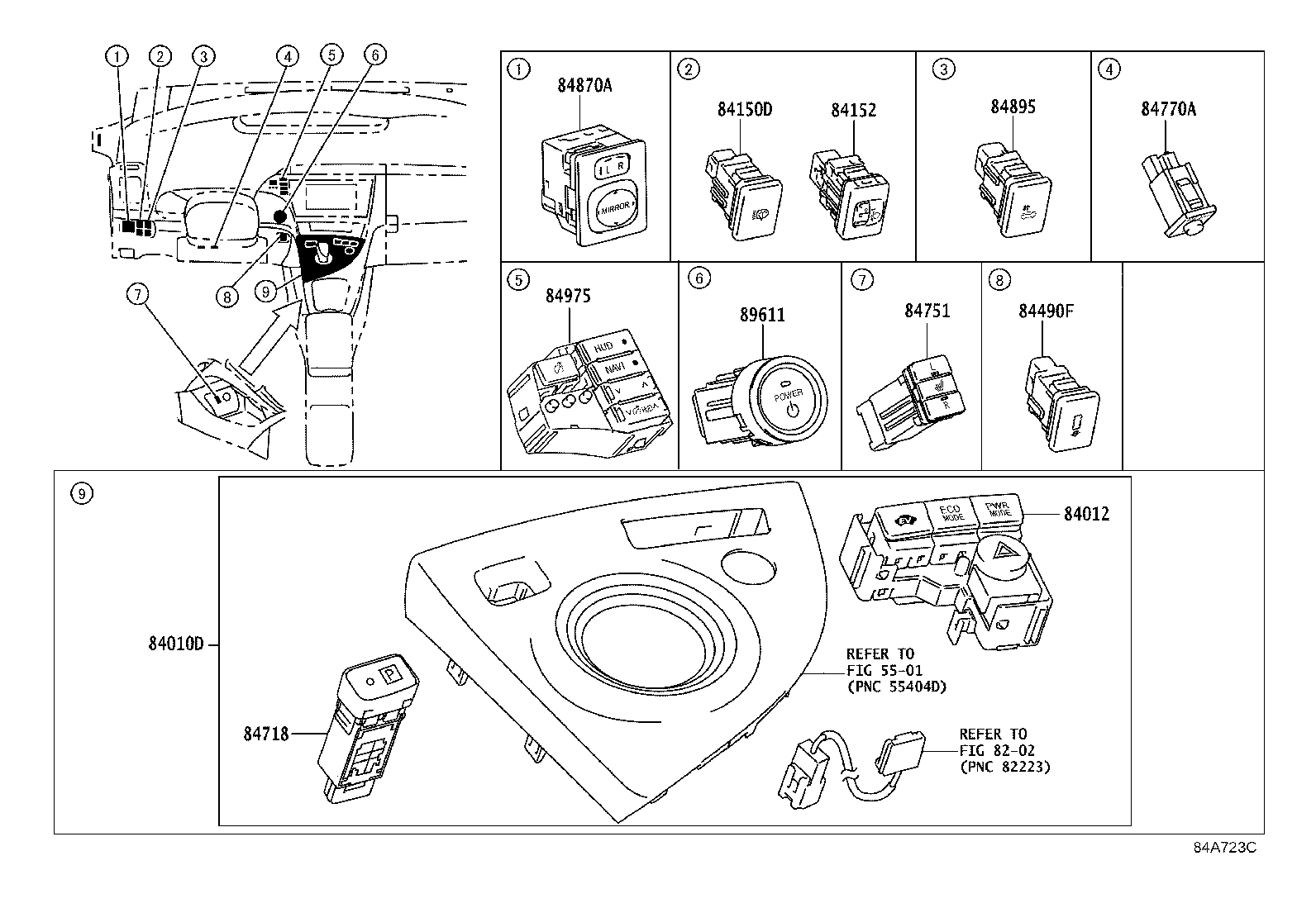

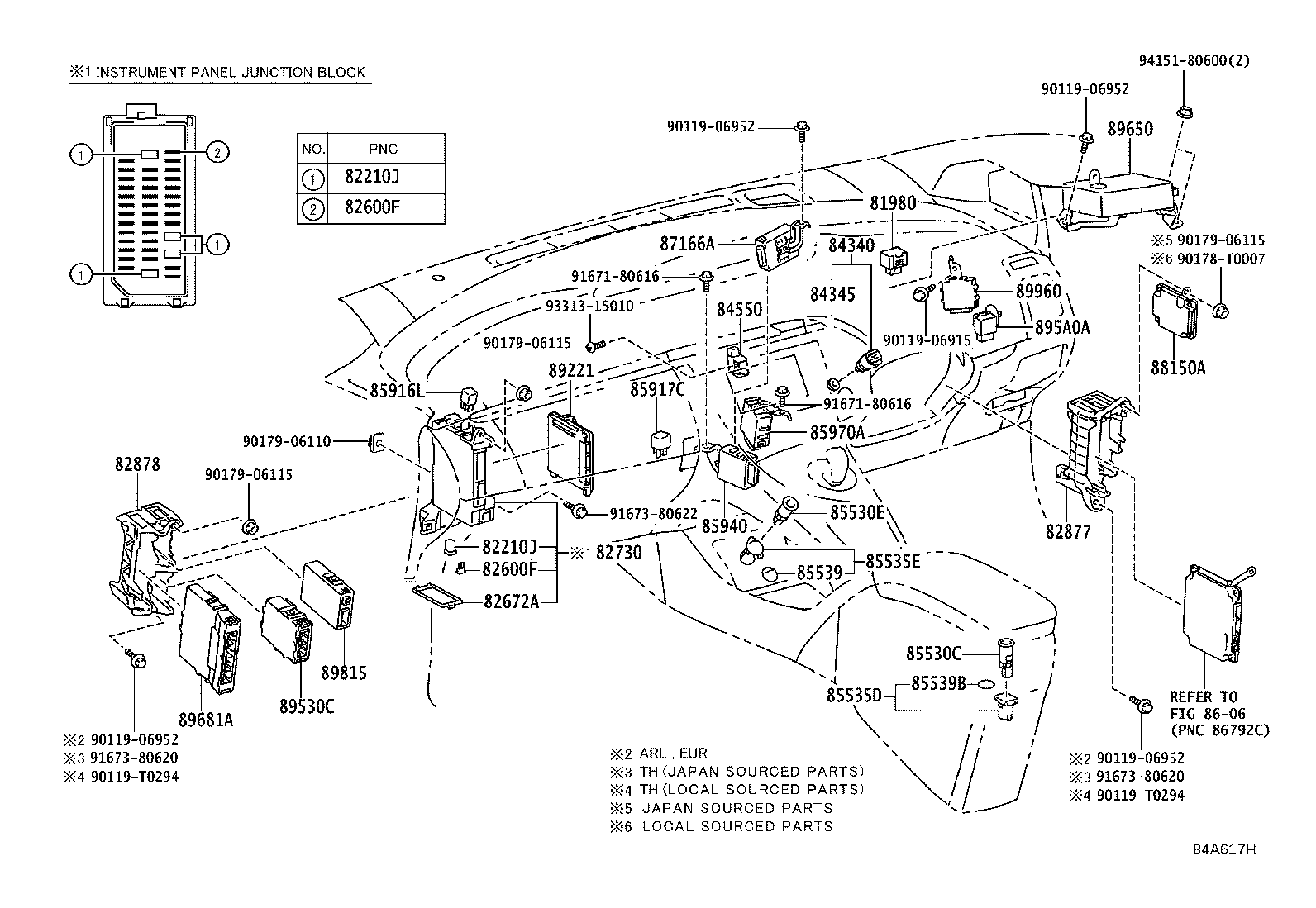

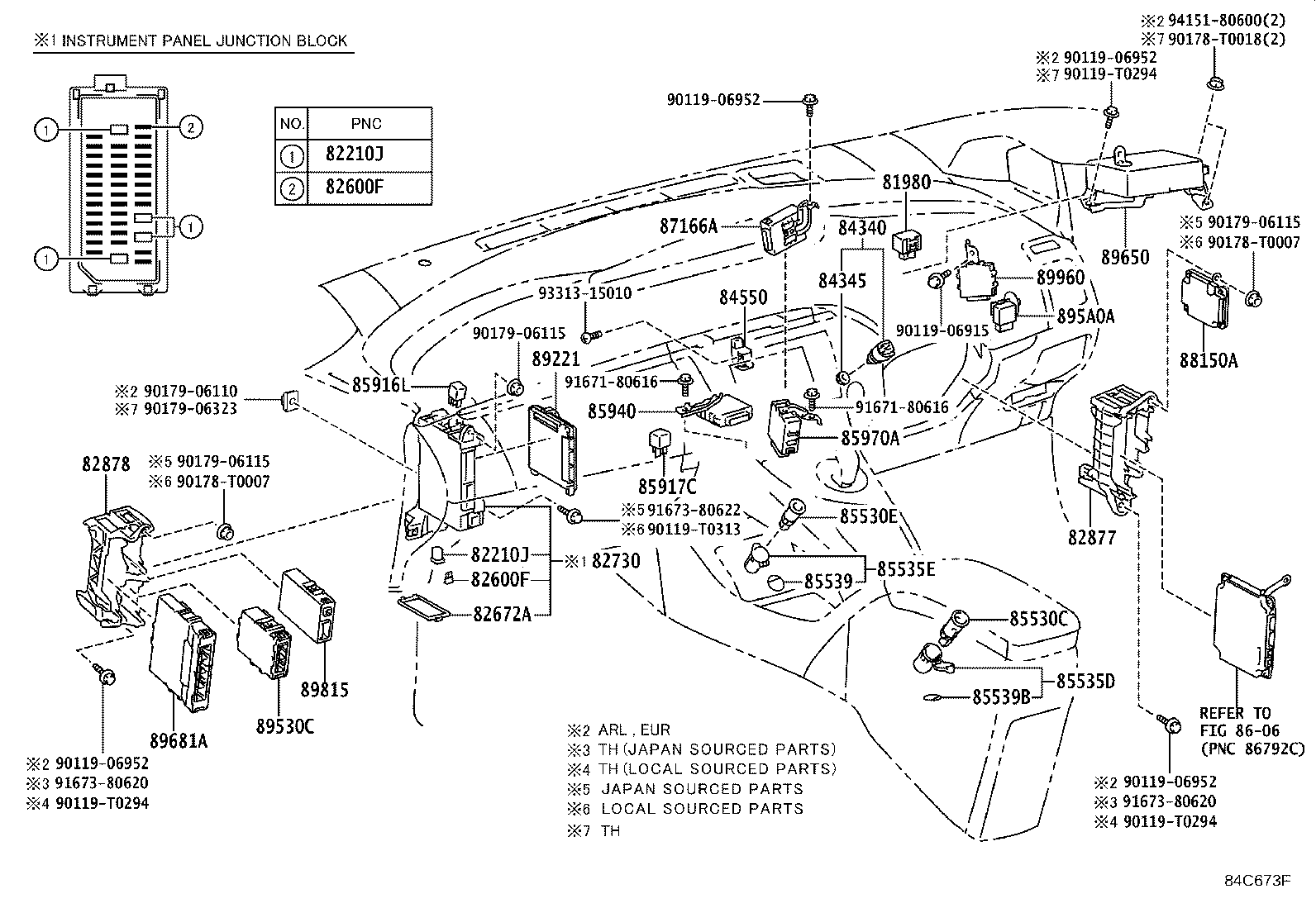

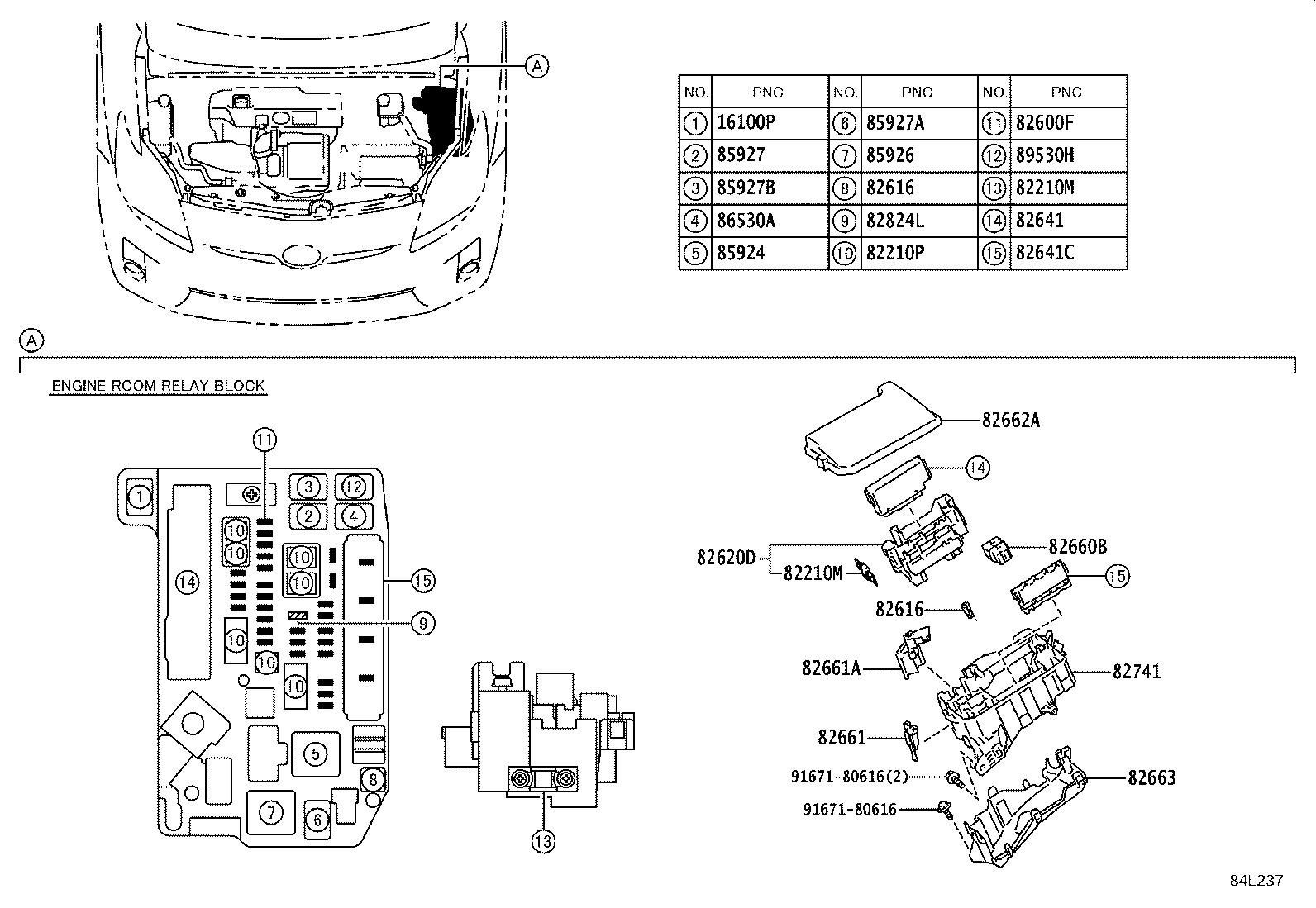

Illustrations

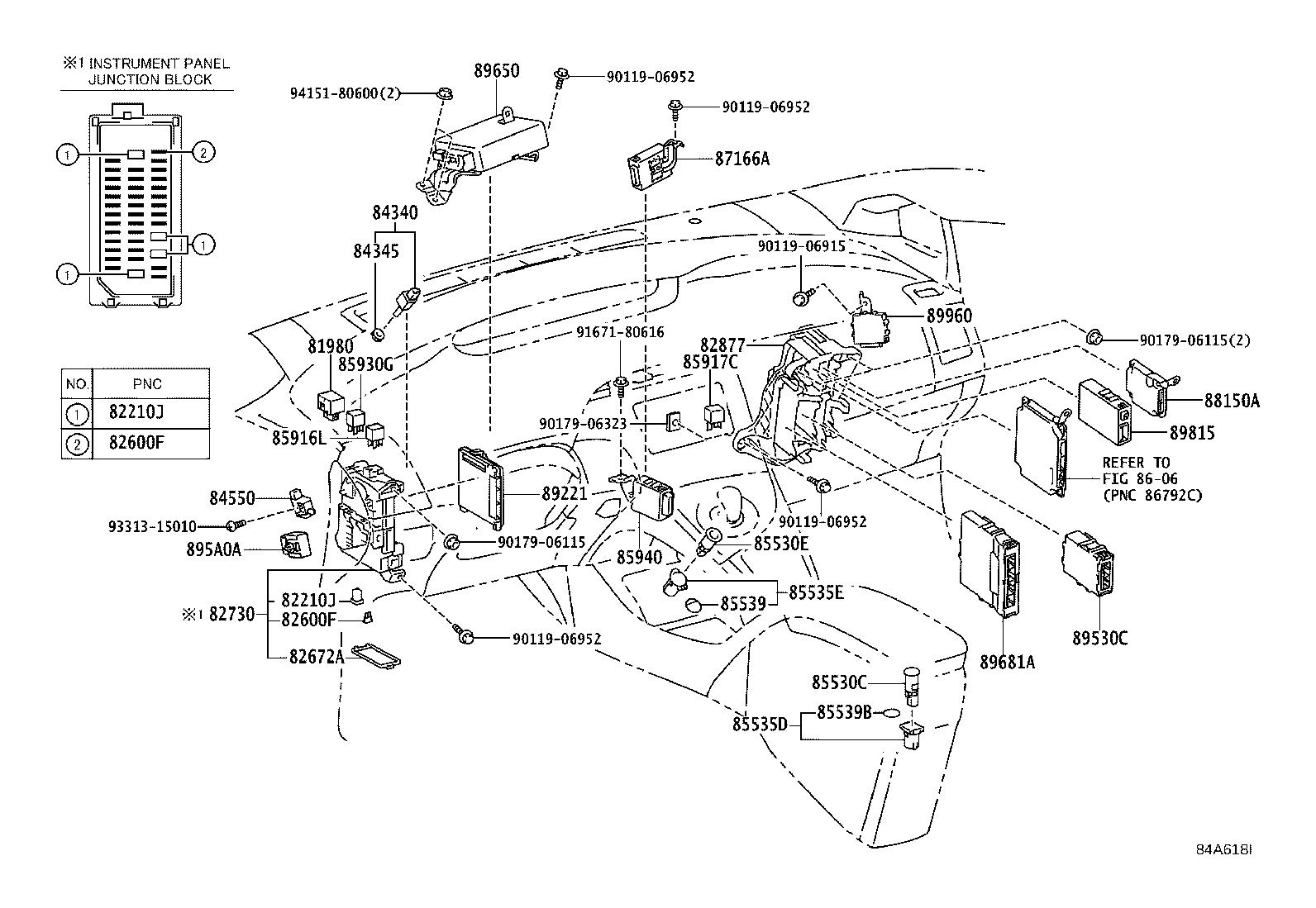

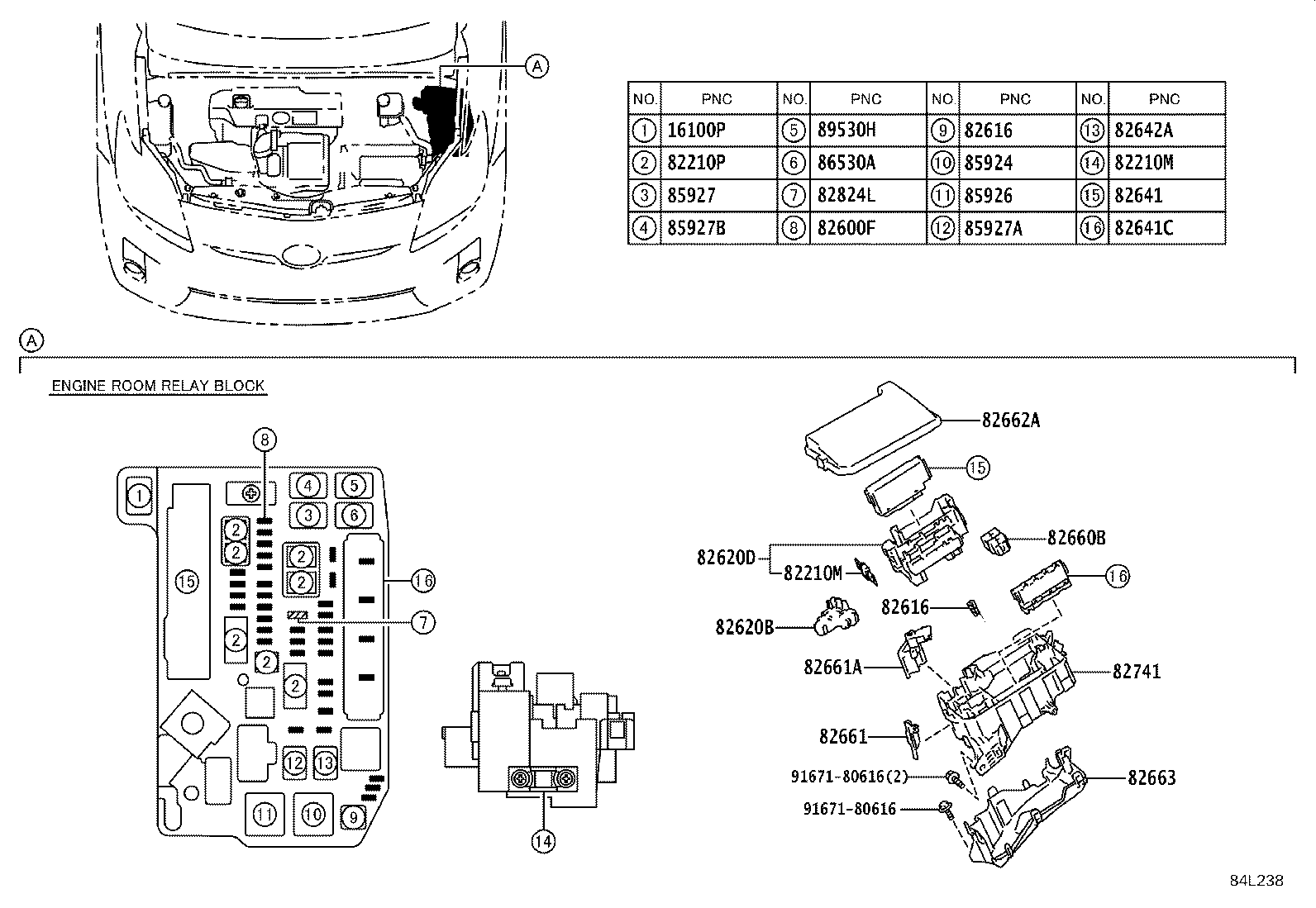

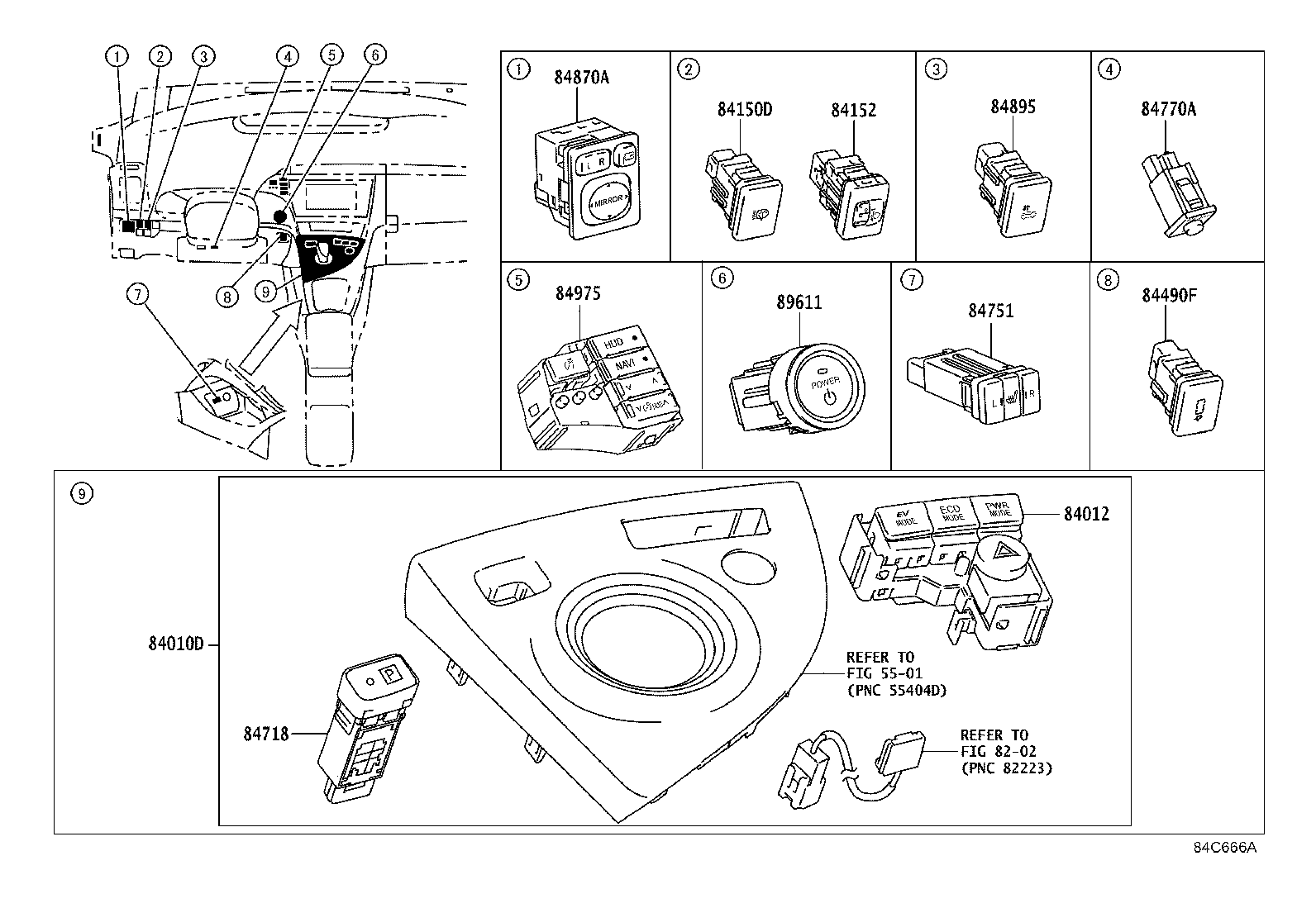

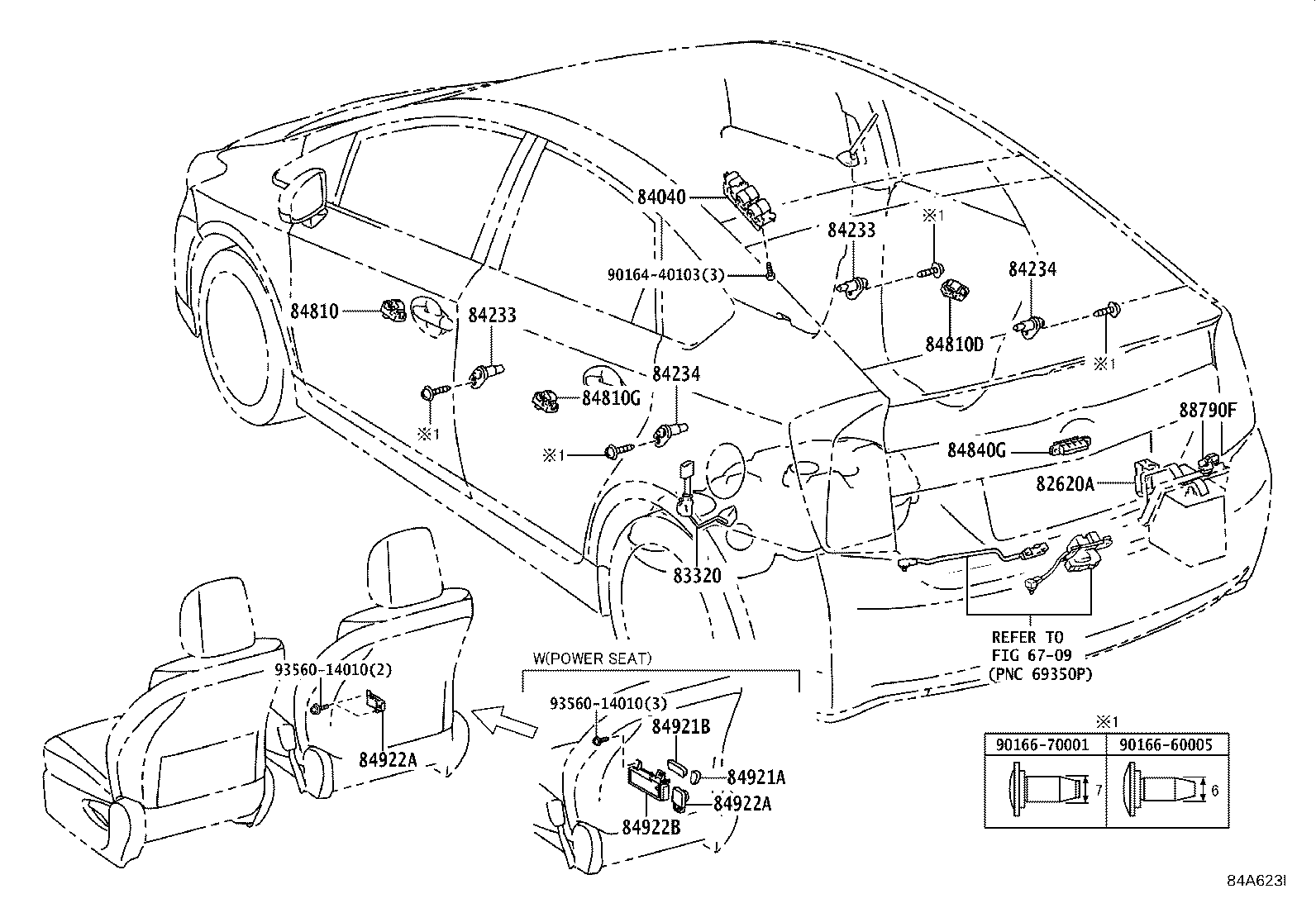

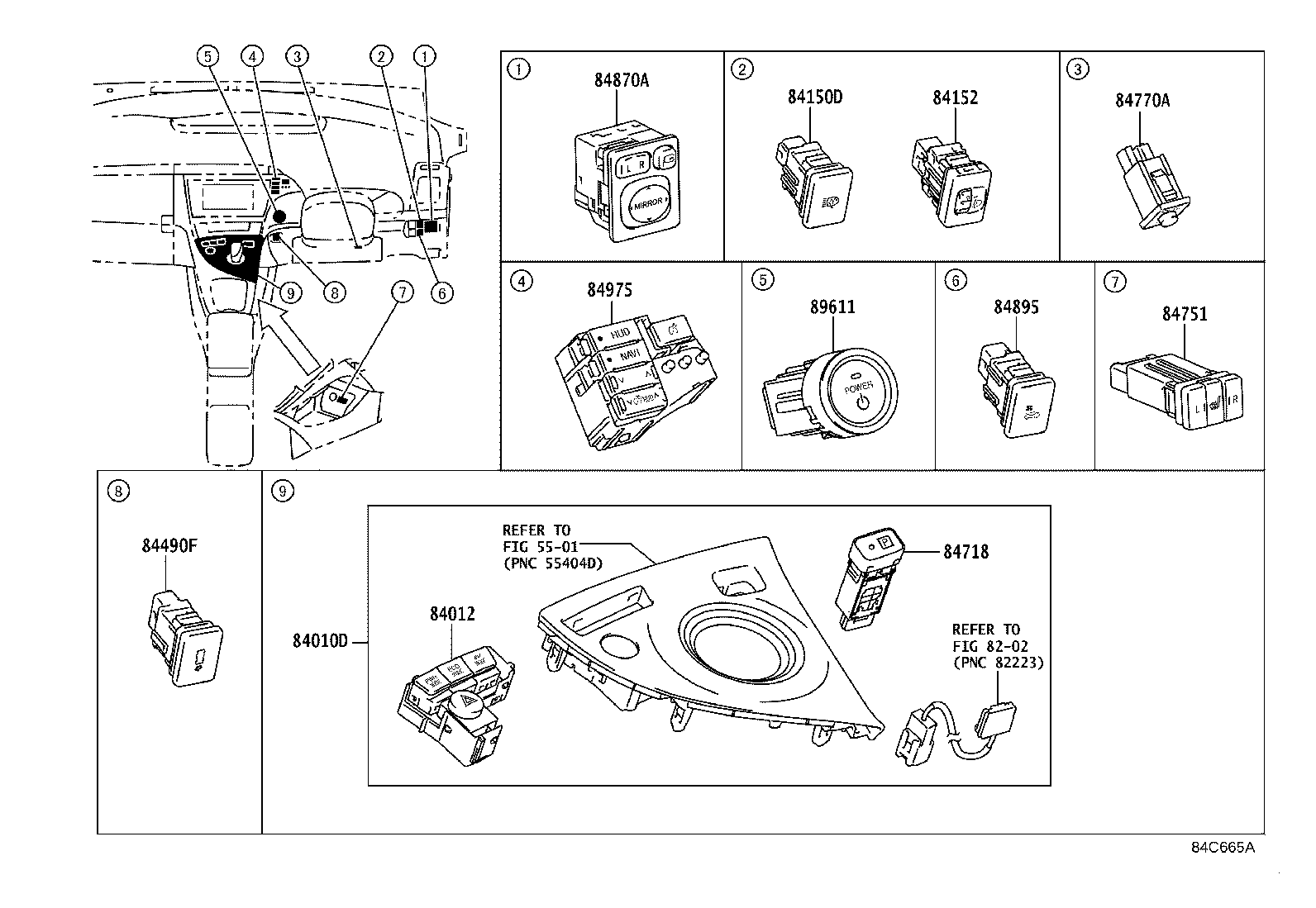

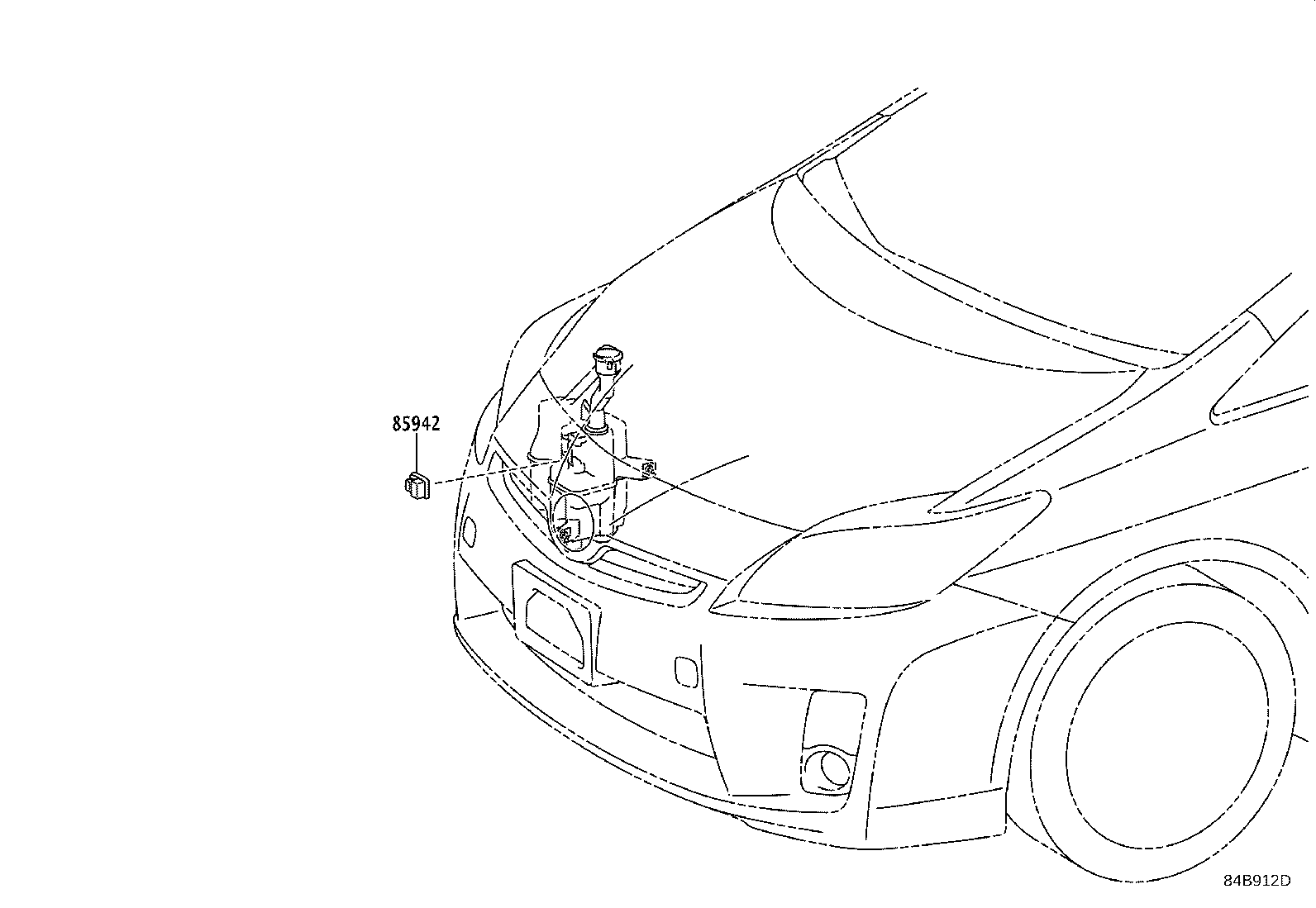

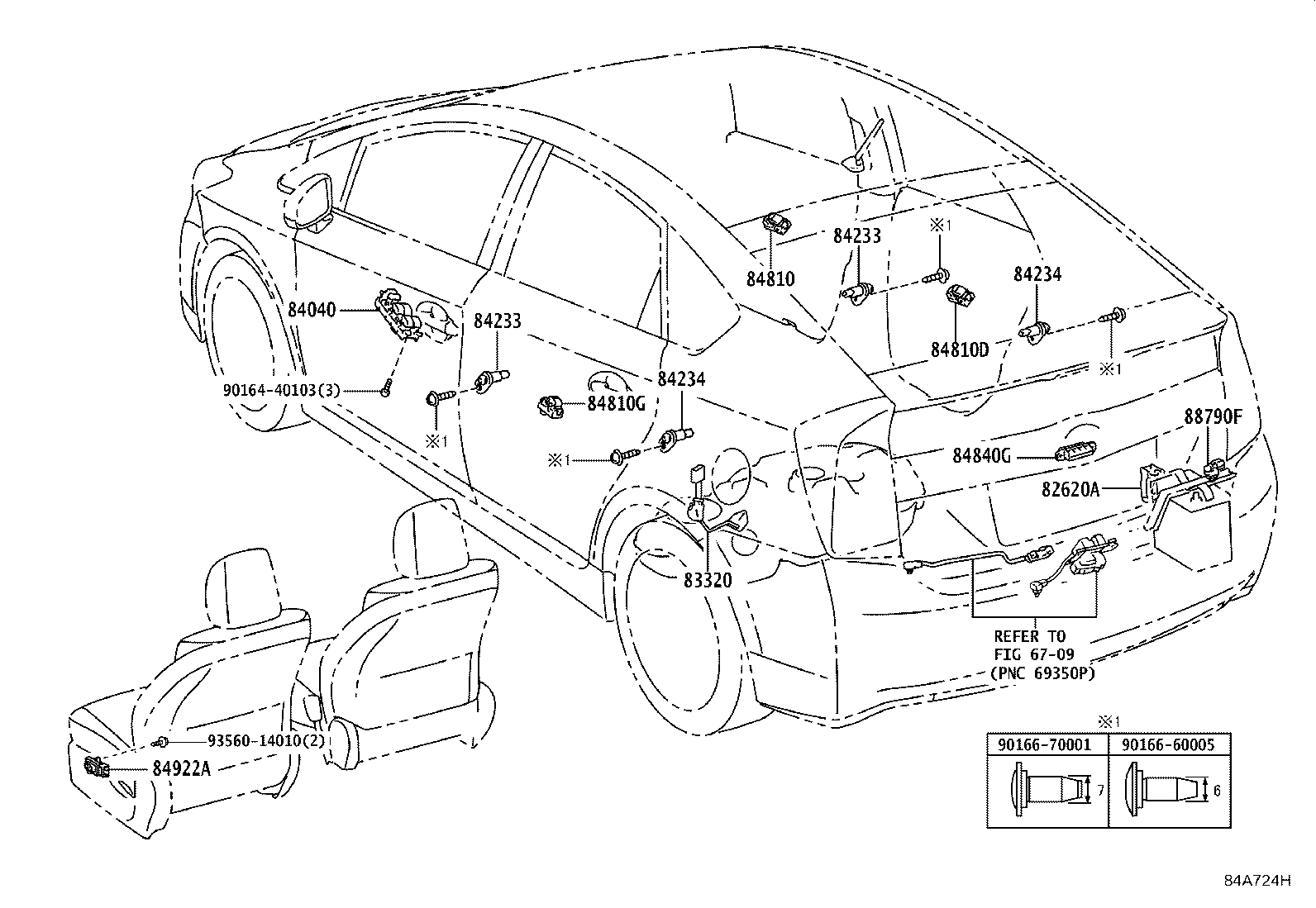

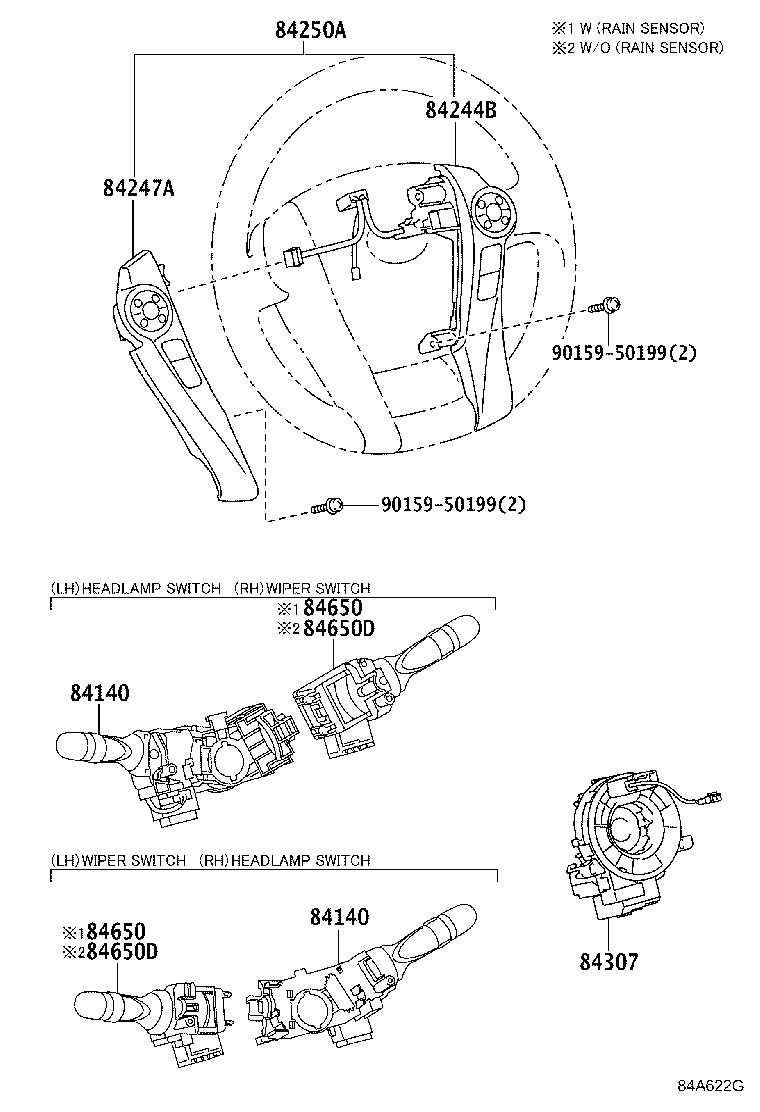

Figure 84B911B 84B911B 2009-04 → — Figure 84B912D 84B912D 2009-04 → 2011-12 Figure 84B912D 84B912D 2010-12 → 2012-04 Figure 84C670C 84C670C 2011-12 → — Figure 84C670C 84C670C 2012-04 → — Figure 84L237 84L237 2009-04 → 2011-12 Figure 84L237 84L237 2010-12 → 2012-04 Figure 84L238 84L238 2011-12 → — Figure 84L238 84L238 2012-04 → — Figure 84A617H 84A617H 2009-04 → 2011-12 Figure 84A617H 84A617H 2010-12 → 2012-04 Figure 84A618I 84A618I 2009-04 → 2011-12 Figure 84C673F 84C673F 2011-12 → — Figure 84C673F 84C673F 2012-04 → — Figure 84C674D 84C674D 2011-12 → — Figure 84A722D 84A722D 2009-04 → 2011-12 Figure 84A722D 84A722D 2010-12 → 2012-04 Figure 84A723C 84A723C 2009-04 → 2011-12 Figure 84C665A 84C665A 2011-12 → — Figure 84C665A 84C665A 2012-04 → — Figure 84C666A 84C666A 2011-12 → — Figure 84A622G 84A622G 2009-04 → — Figure 84A623I 84A623I 2009-04 → — Figure 84A724H 84A724H 2009-04 → —

Part groups

PNCDescription
16100P Relay, Water Pump
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82210M Fusible Link
82210P Engine Room Fusible Link
82600F Fuse, Fuse Block
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82641 Relay, Integration NO.1
82641C Relay, Integration NO.2
82642A Relay, Running Light
82660B Block Assy, Relay
82661 Cover, Relay Block, NO.1
82661A Cover, Relay Block, NO.2
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
82672A Cover, Junction Block
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82824L Pin, Short
82877 Box, Computer Integration, RH
82878 Box, Computer Integration, LH
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84010D Control & Panel Assy, Integration
84012 Control & Panel Sub-assy, Integration
84040 Master Switch Assy,Multiplex Network
84140 Switch Assy, Headlamp Dimmer
84150D Switch Assy, Headlamp Cleaner
84152 Switch, Headlamp Leveling
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84244B Switch, Steering Pad, RH
84247A Switch, Steering Pad, LH
84250A Switch Assy, Steering Pad
84307 Cable Sub-assy, Spiral W/Sensor
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84490F Switch Assy, Parking Assist Pre Support
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84718 Switch, Transmission Shift Main
84751 Switch, Seat Heater
84770A Switch Assy, Pre-collision System Cancel
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84810G Switch Assy, Power Window Regulator, Rear NO.2
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84895 Switch, Ventilator
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922A Switch, Front Power Seat(FOR LUMBAR)
84922B Switch, Front Power Seat, RH
84975 Switch, Trip
85530C Socket Assy, Power Outlet, Center
85530E Socket Assy, Power Outlet, NO.3
85535D Cover, Power Outlet Socket, Center
85535E Cover, Power Outlet Socket, NO.2
85539 Label, Power Outlet Notice
85539B Label, Power Outlet Notice, Center
85916L Relay, Rear Fog Lamp
85917C Relay, Solar
85924 Relay, Ignition Control
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85930G Relay, Acc
85940 Relay Assy, Windshield Wiper
85942 Relay, Headlamp Cleaner Control
85970A Relay Assy, Double Lock Door Control
86530A Relay, Horn
87166A Computer, Solar Battery Airconditioner Blower Vent
88150A Computer Assy, Driving Support
88790F Thermistor Assy
89221 Computer, Multiplex Network Body
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89530C Computer Assy, Transmission Control
89530H Relay, Transaxle Parking Look Control
895A0A Computer Assy, Stop Lamp Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89681A Computer, Power Management Control
89815 Computer, Seat Belt Control
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
