Toyota Prius
2009-04 → 2015-11 · chassis ZVW30 · catalogue 222230 · Europe
Supported model
Data version 2016-05

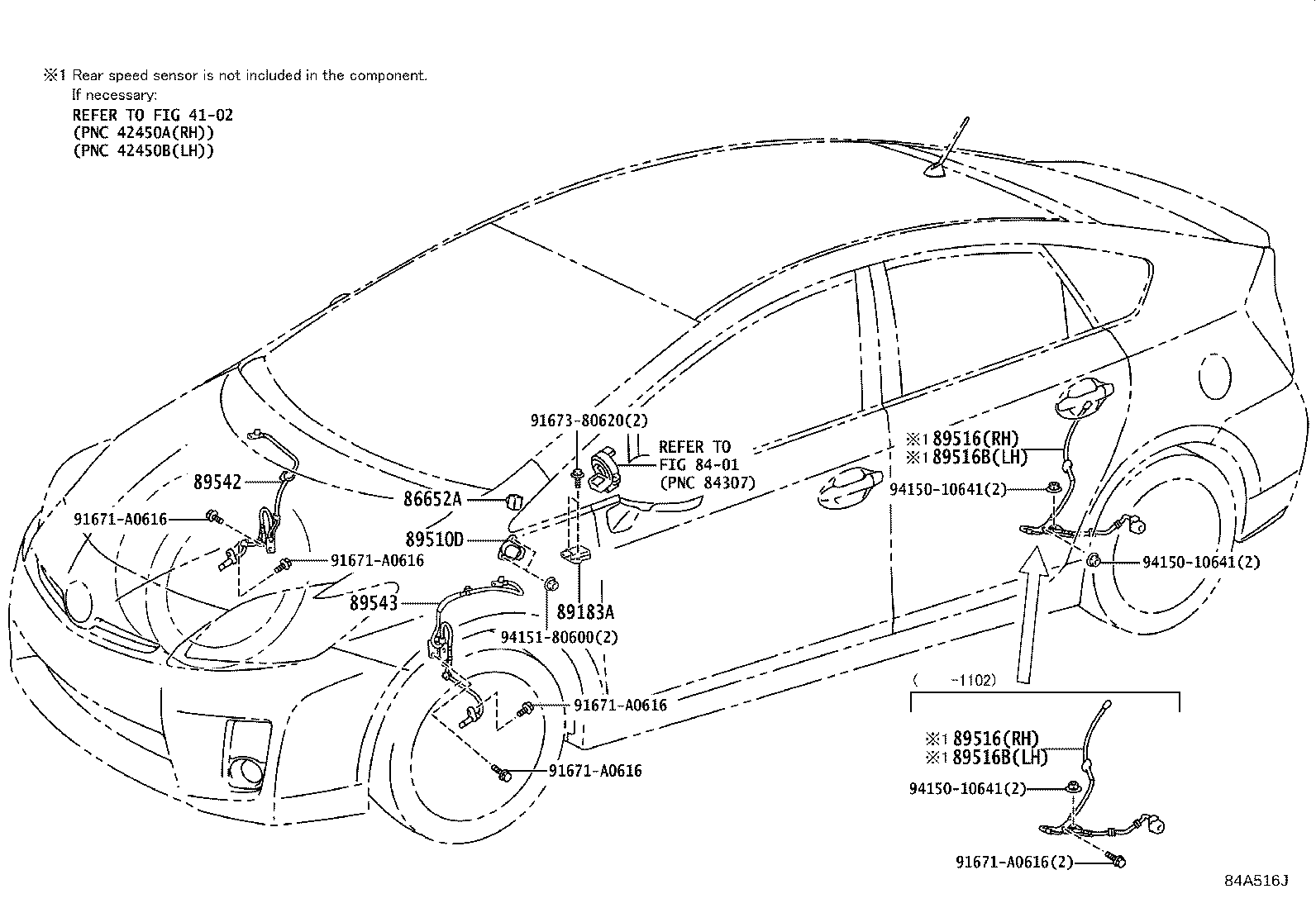

Abs & Vsc
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86652A | Buzzer Assy, Skid Control |
| 89183A | Sensor, Yawrate |
| 89510D | Sensor Assy, Brake Pedal Stroke |
| 89516 | Wire, Skid Control Sensor |
| 89516B | Wire, Skid Control Sensor |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
