Toyota Prius

2009-04 → 2015-11 · chassis ZVW30 · catalogue 222230 · Europe

Supported model Data version 2016-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

22 part groups · 5 illustrations

Illustrations

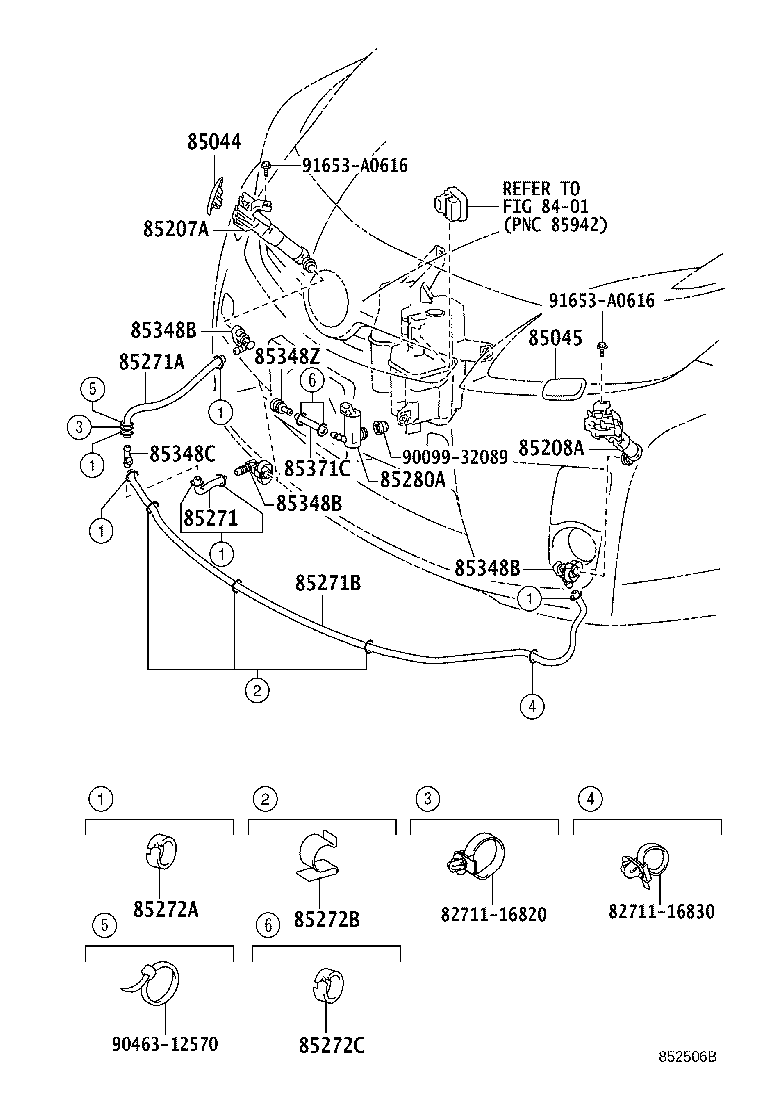

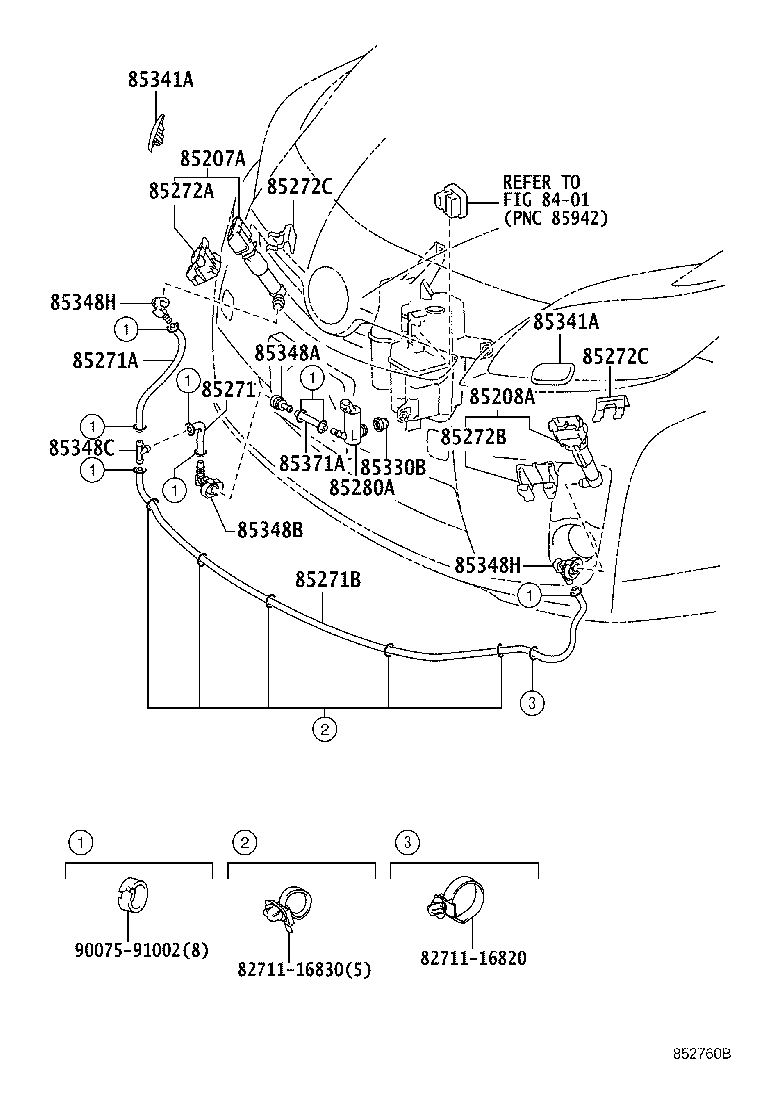

Figure 852326D 852326D 2009-04 → 2010-04 Figure 852506B 852506B 2010-04 → 2011-12 Figure 852506B 852506B 2010-12 → 2012-04 Figure 852760B 852760B 2011-12 → — Figure 852760B 852760B 2012-04 → —

Part groups

PNCDescription
85044 Nozzle Sub-assy, TYPE1 H/Lamp Washer, RH
85045 Nozzle Sub-assy, TYPE1 H/Lamp Washer, LH
85207A Actuator Sub-assy, Headlamp Washer, RH
85208A Actuator Sub-assy, Headlamp Washer, LH
85271 Hose, Headlamp Cleaner, NO.1
85271A Hose, Headlamp Cleaner, NO.2
85271B Hose, Headlamp Cleaner, NO.3
85271C Hose, Headlamp Cleaner, NO.4
85272A Clamp, Headlamp Cleaner, NO.1
85272B Clamp, Headlamp Cleaner, NO.2
85272C Clamp, Headlamp Cleaner, NO.3
85280A Motor And Pump Assy, Headlamp Cleaner
85330B Bush, Headlamp Cleaner Washer Jar
85341A Cover,Headlamp Cleaner Washer Nozzle
85348A Joint, Headlamp Cleaner Hose, NO.1
85348B Joint, Headlamp Cleaner Hose, NO.2
85348C Joint, Headlamp Cleaner Hose, NO.3
85348H Joint, Headlamp Cleaner Hose, NO.4
85348Z Joint, Headlamp Cleaner Hose, NO.5
85371A Hose, Headlamp Cleaner(FROM MOTOR TO JOINT)
85371C Hose, Headlamp Cleaner, NO.1
85376B Protector, Headlamp Cleaner Hose, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
