Toyota Prius

2009-04 → 2015-11 · chassis ZVW30 · catalogue 222230 · Europe

Supported model Data version 2016-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

13 part groups · 5 illustrations

Illustrations

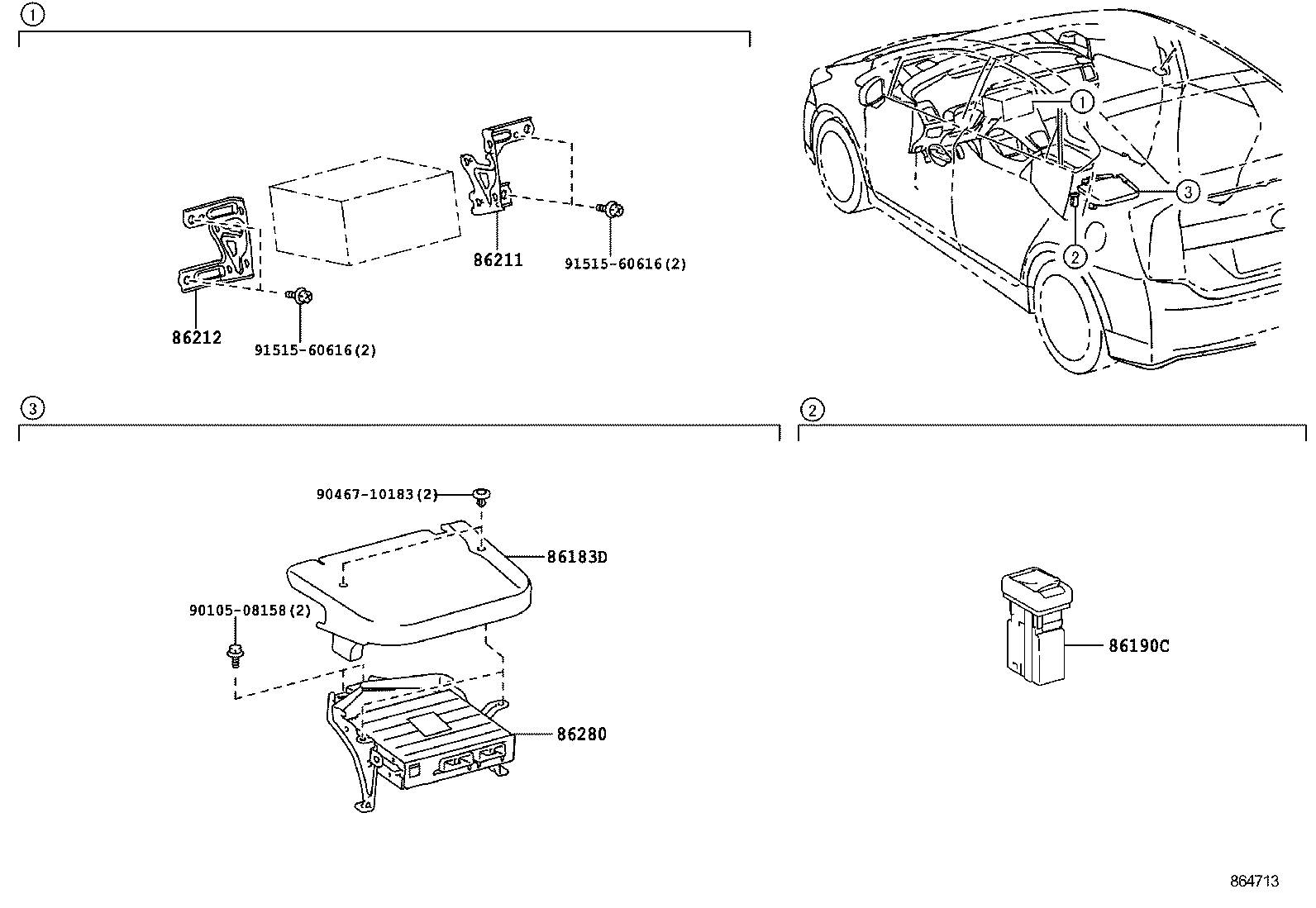

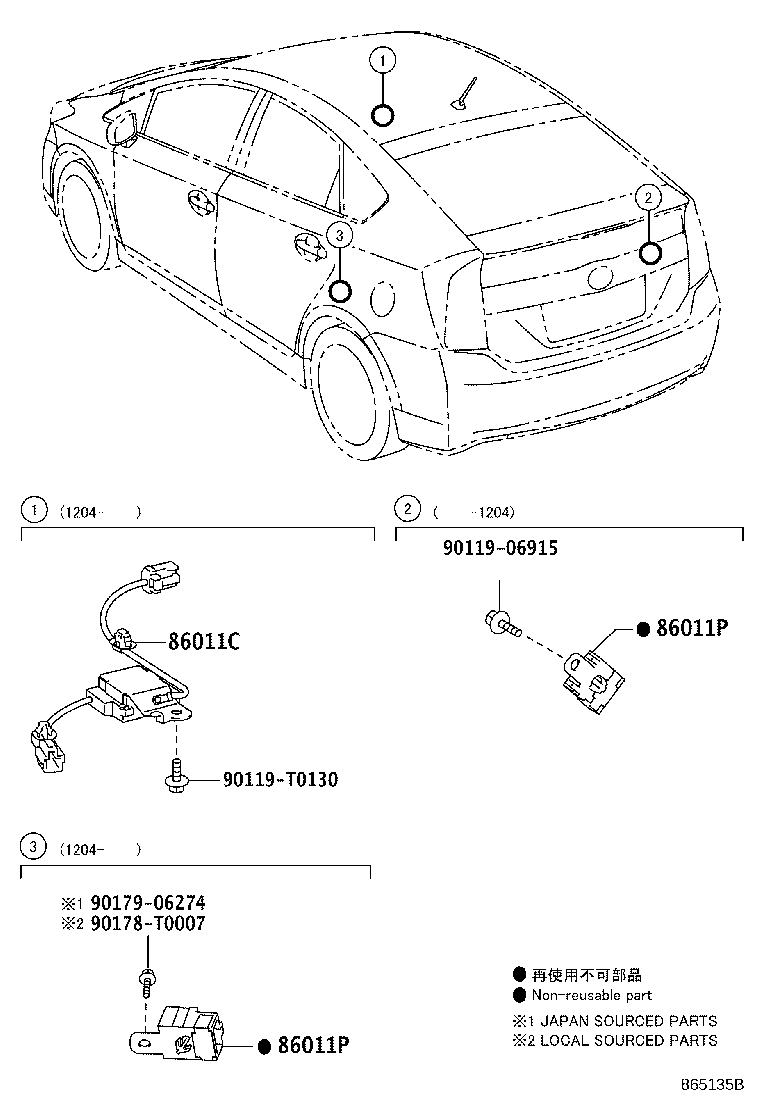

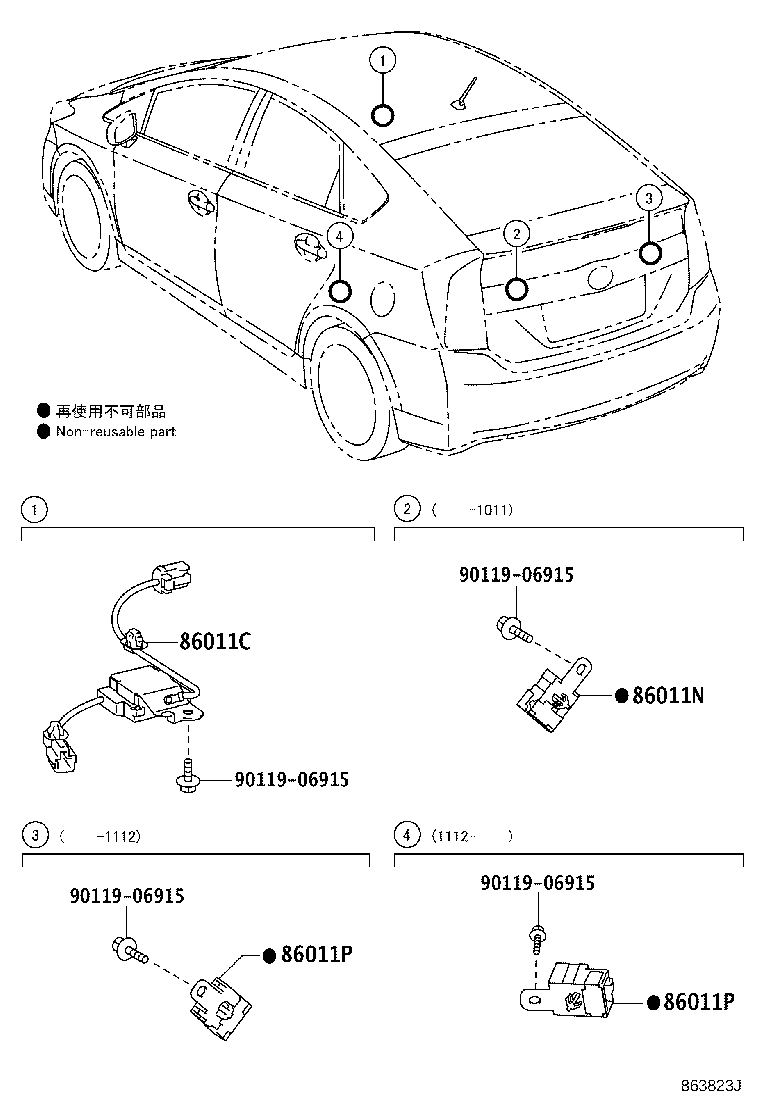

Figure 863861B 863861B 2009-04 → 2011-12 Figure 864713 864713 2011-12 → — Figure 865339A 865339A 2010-12 → — Figure 863823J 863823J 2009-04 → — Figure 865135B 865135B 2010-12 → —

Part groups

PNCDescription
86011C Filter, Noise
86011N Filter, Noise
86011P Filter, Noise
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86183D Cover, Audio Amplifier
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
86286B Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
