Toyota Prius
2009-04 → 2015-11 · chassis ZVW30 · catalogue 222230 · Europe
Supported model
Data version 2016-05
Navigation & Front Monitor Display
9 part groups · 4 illustrations

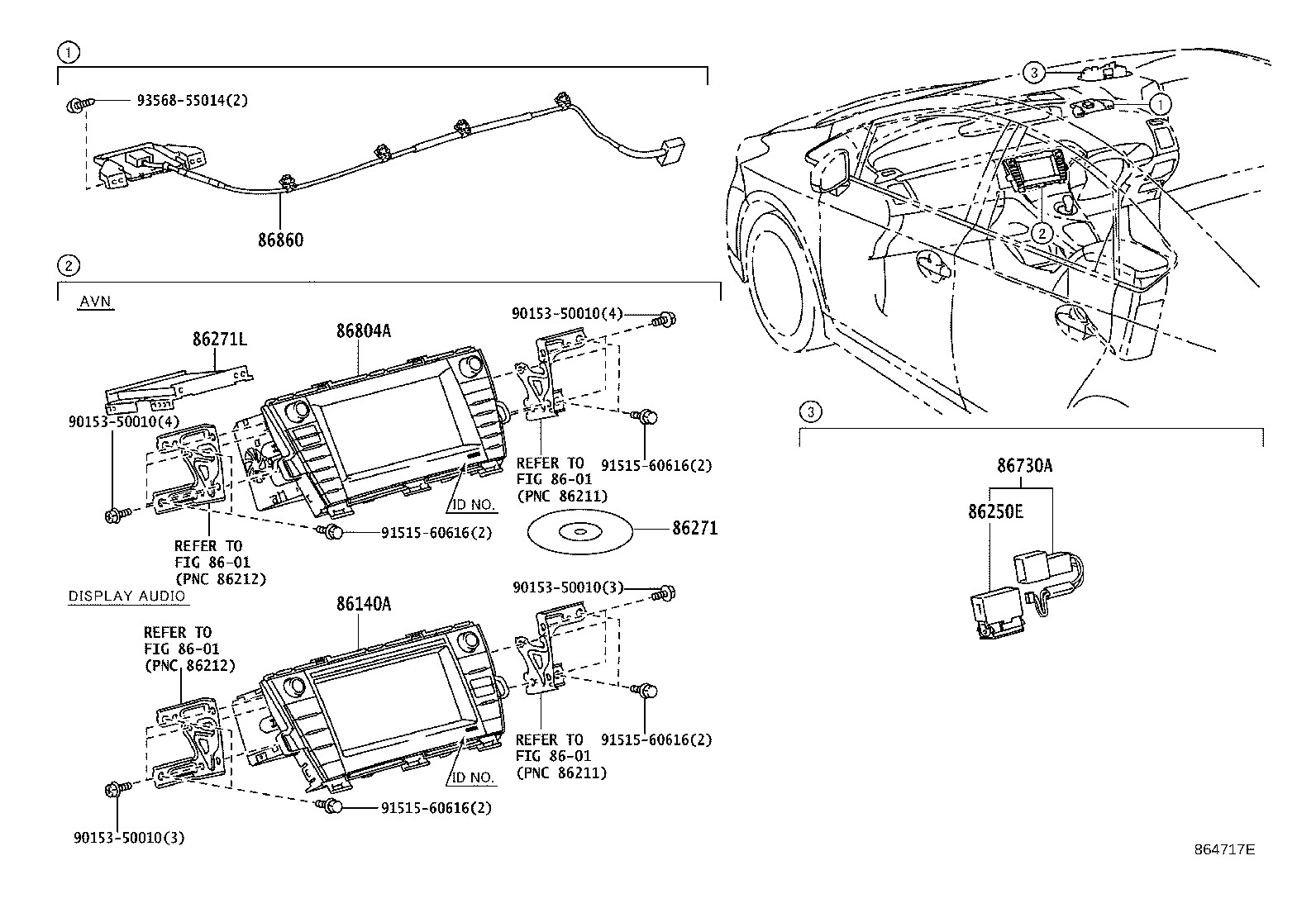

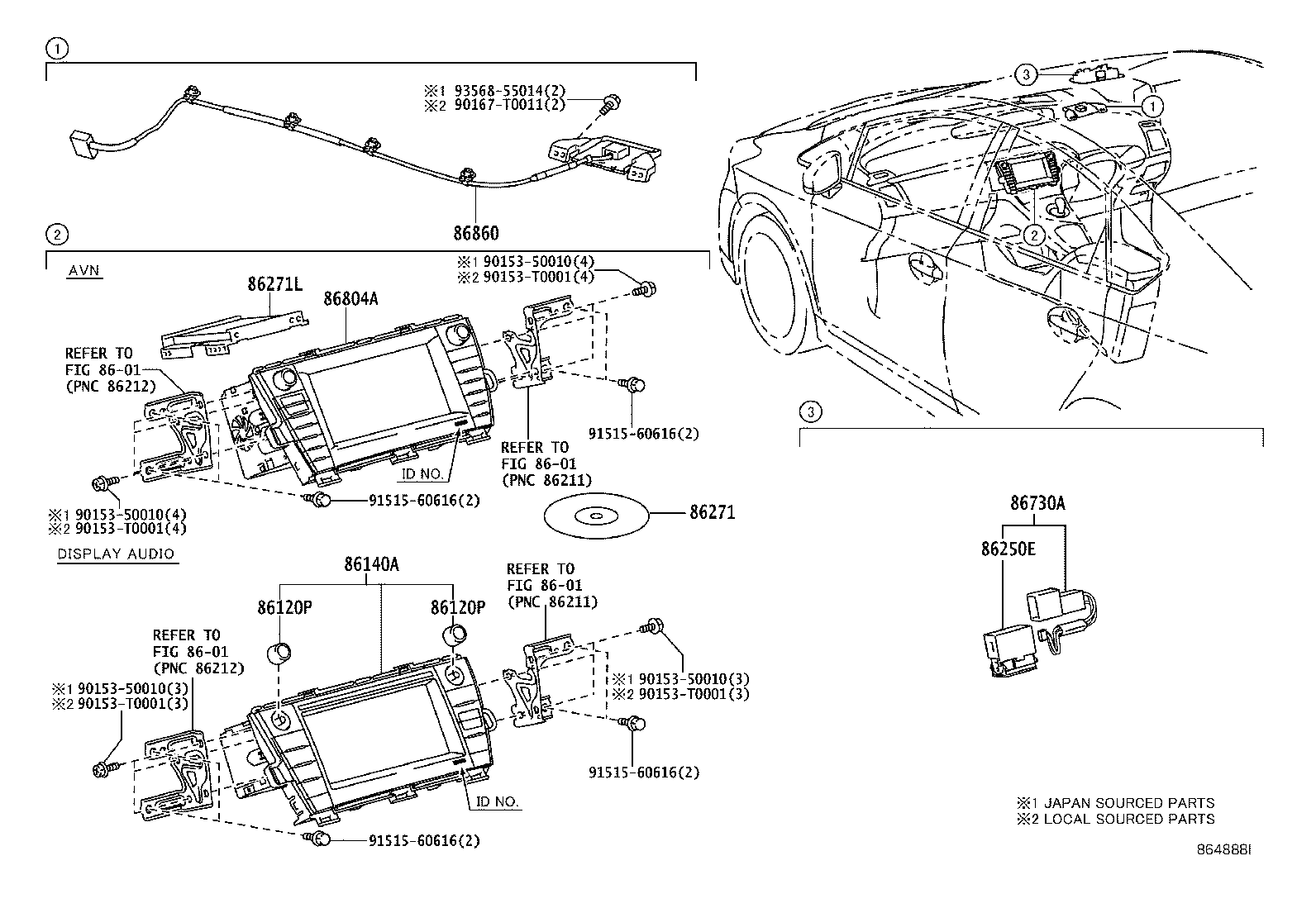

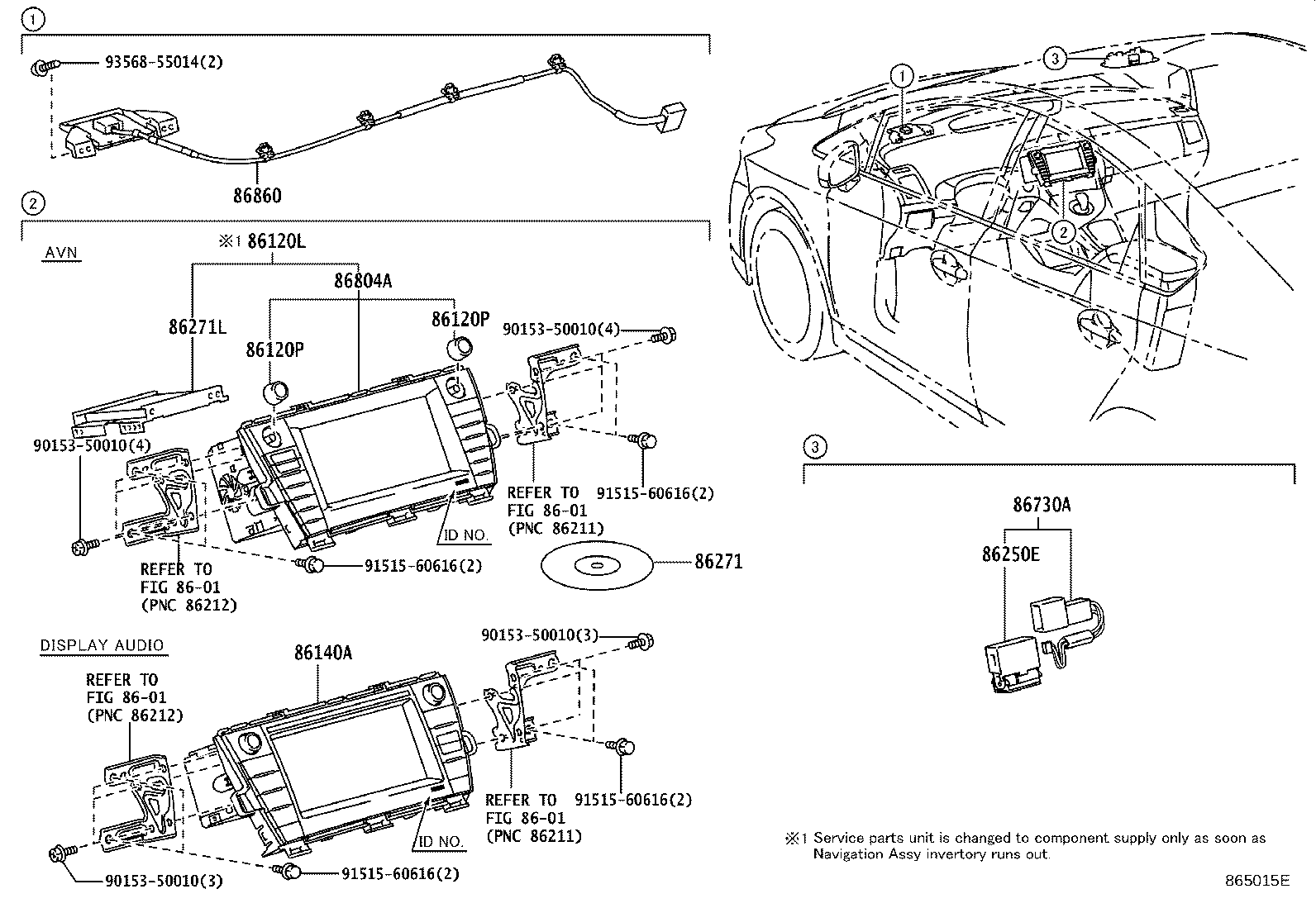

Part groups
| PNC | Description |
|---|---|
| 86120L | Receiver Assy, Navigation |
| 86120P | Knob, Navigation Receiver Switch |
| 86140A | Receiver Assy, Radio & Display |
| 86250E | Microphone Assy, Amplifier |
| 86271 | Disc, Disc Player |
| 86271L | Hard Disc |
| 86730A | Microphone Assy, Telephone |
| 86804A | Sub-assy, Navigation Computer |
| 86860 | Antenna Assy, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
