Toyota Prius

2009-04 → 2015-11 · chassis ZVW30 · catalogue 222230 · Europe

Supported model Data version 2016-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

17 part groups · 6 illustrations

Illustrations

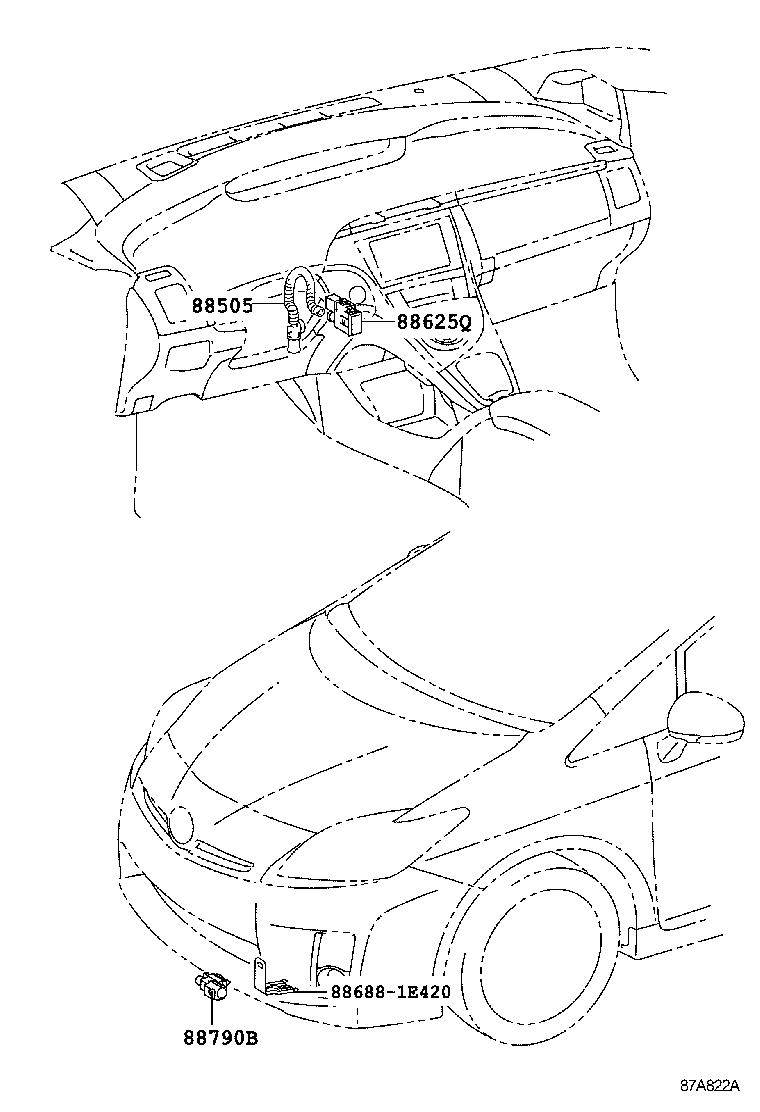

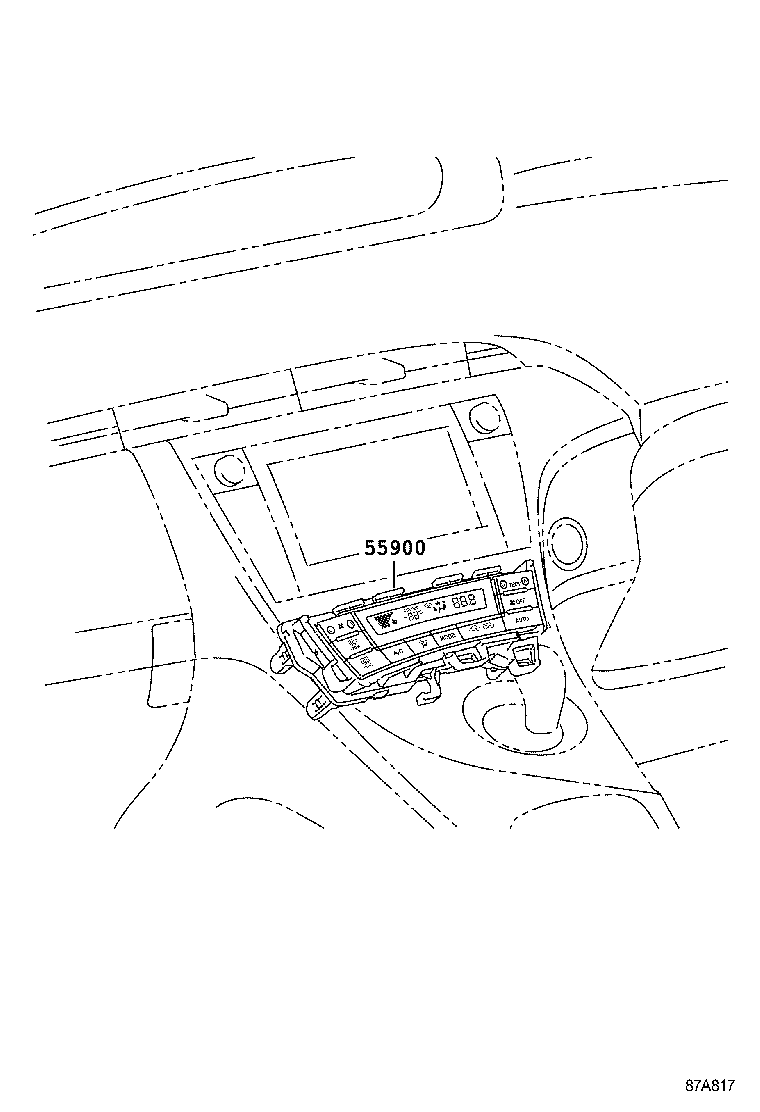

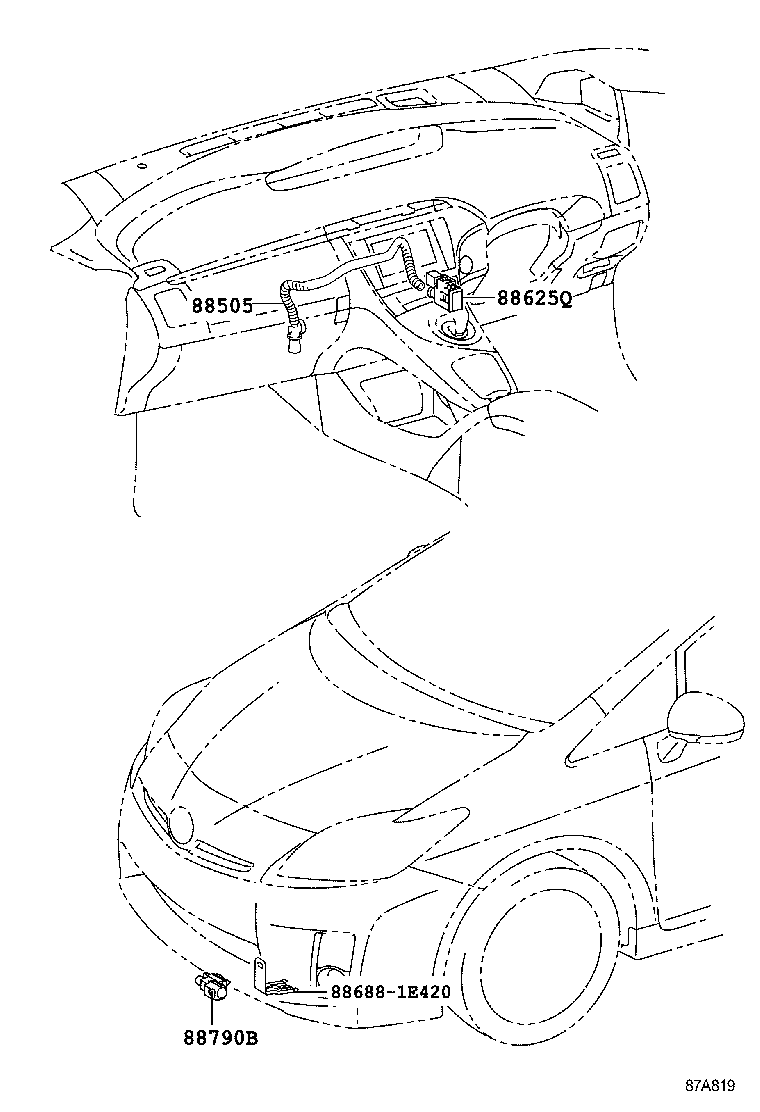

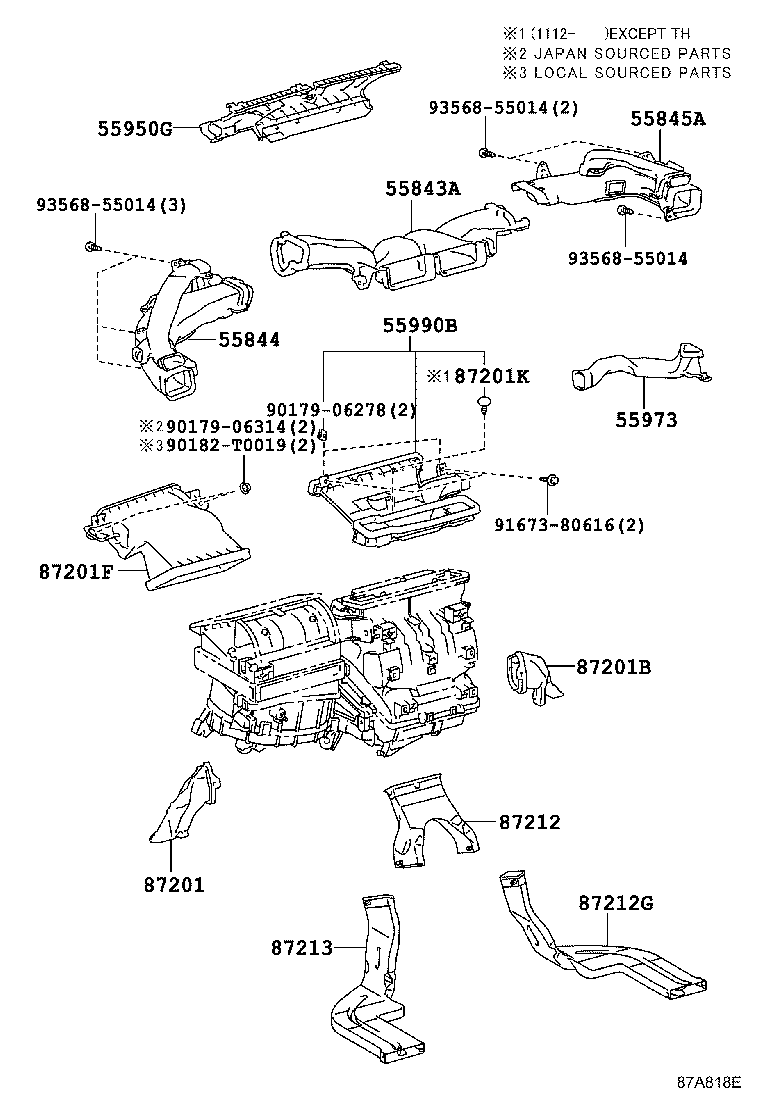

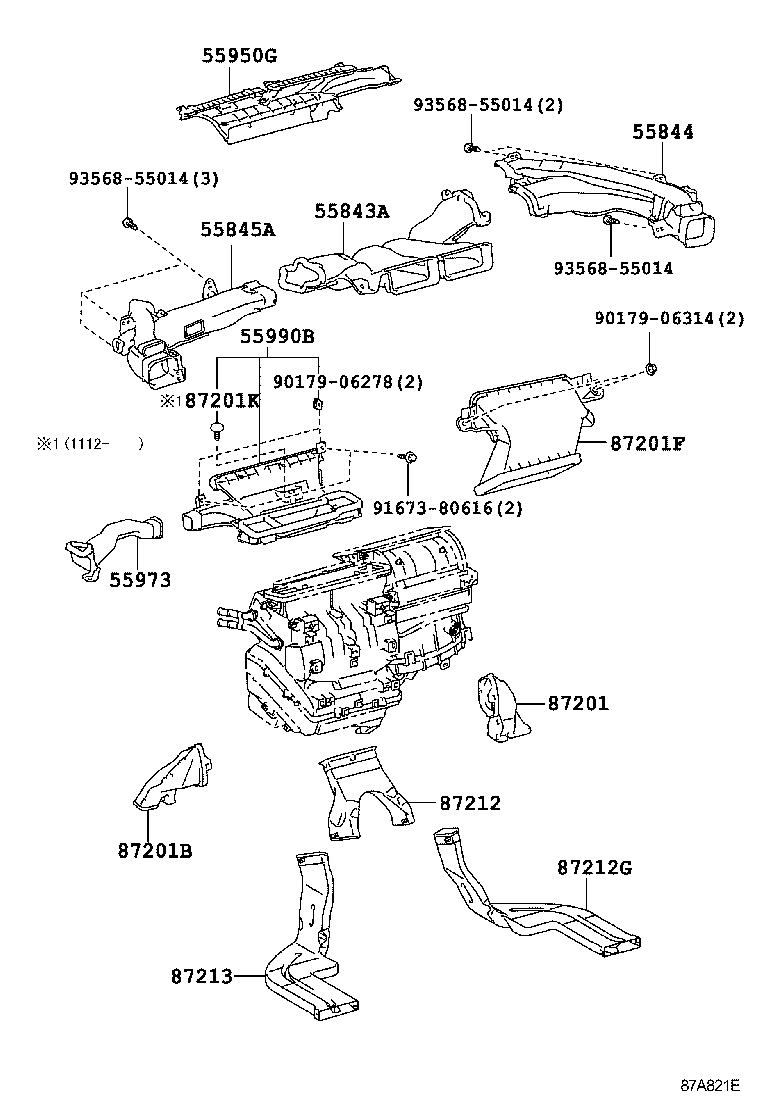

Figure 87A820 87A820 2009-04 → — Figure 87A817 87A817 2009-04 → — Figure 87A821E 87A821E 2009-04 → — Figure 87A818E 87A818E 2009-04 → — Figure 87A822A 87A822A 2009-04 → — Figure 87A819 87A819 2009-04 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55950G Nozzle Assy, Defroster
55973 Duct, Side Defroster Nozzle, NO.3
55990B Nozzle Assy, Defroster, Lower
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87201K Clip (FOR AIR DUCT)
87212 Duct, Air, Rear NO.1
87212G Duct, Air, Rear NO.3
87213 Duct, Air, Rear NO.2
88505 Duct Sub-assy,Air Conditioner
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
