Toyota Prius
2022-12 → present · chassis MXWH61,ZVW60 · catalogue 222250 · Europe
Supported model
Data version 2023-03
Mounting

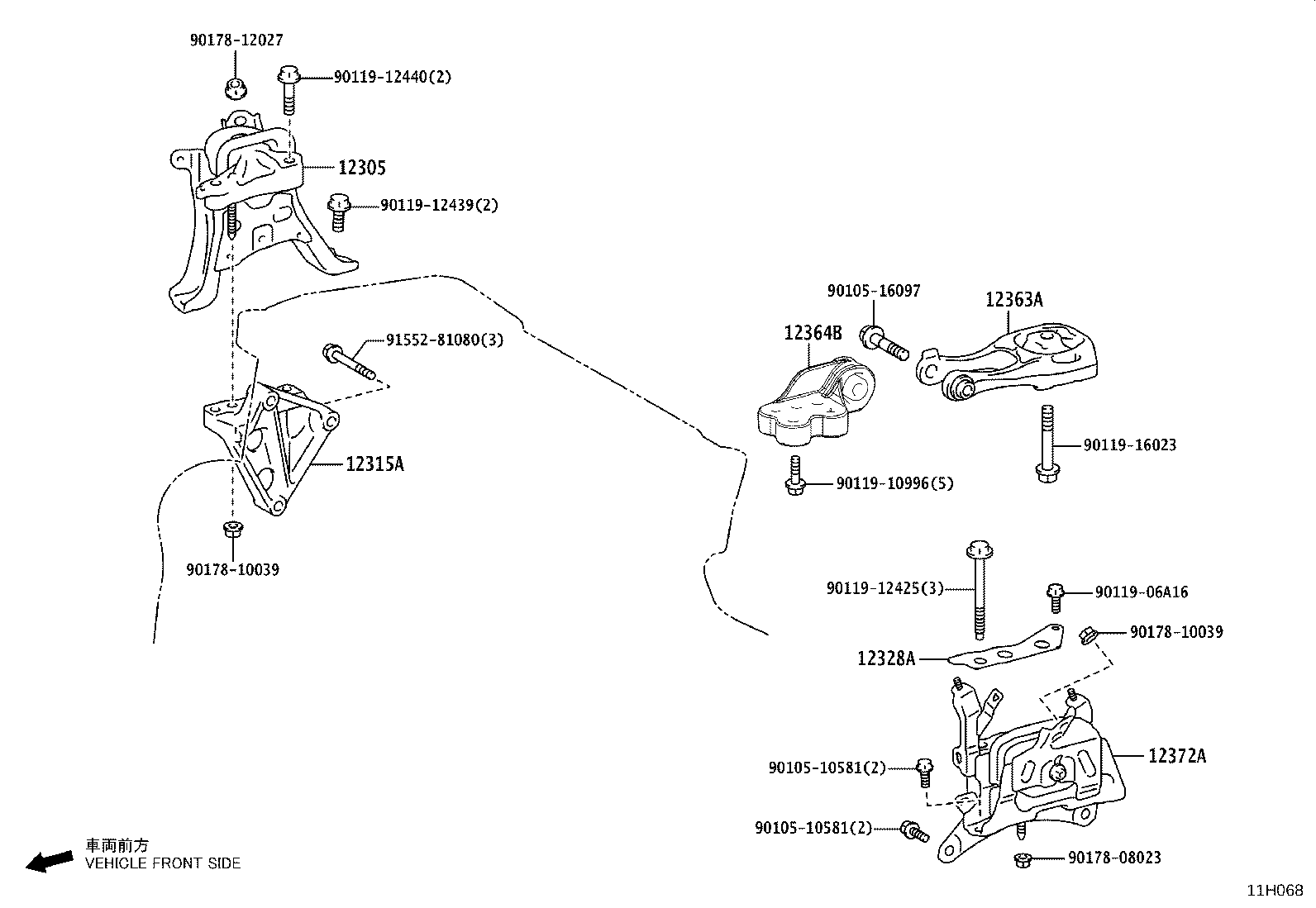

8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12281B | Hanger, Engine, NO.1 |
| 12305 | Insulator Sub-assy, Engine Mounting, RH |
| 12315A | Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE) |
| 12328A | Stay, Engine Mounting, NO.2 LH |
| 12353 | Cap, Engine Mounting Bracket |
| 12363A | Rod, Engine Moving Control |
| 12364B | Rod, Engine Moving Control, NO.2 |
| 12372A | Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
