Toyota Prius
2022-12 → present · chassis MXWH61,ZVW60 · catalogue 222250 · Europe
Supported model
Data version 2023-03

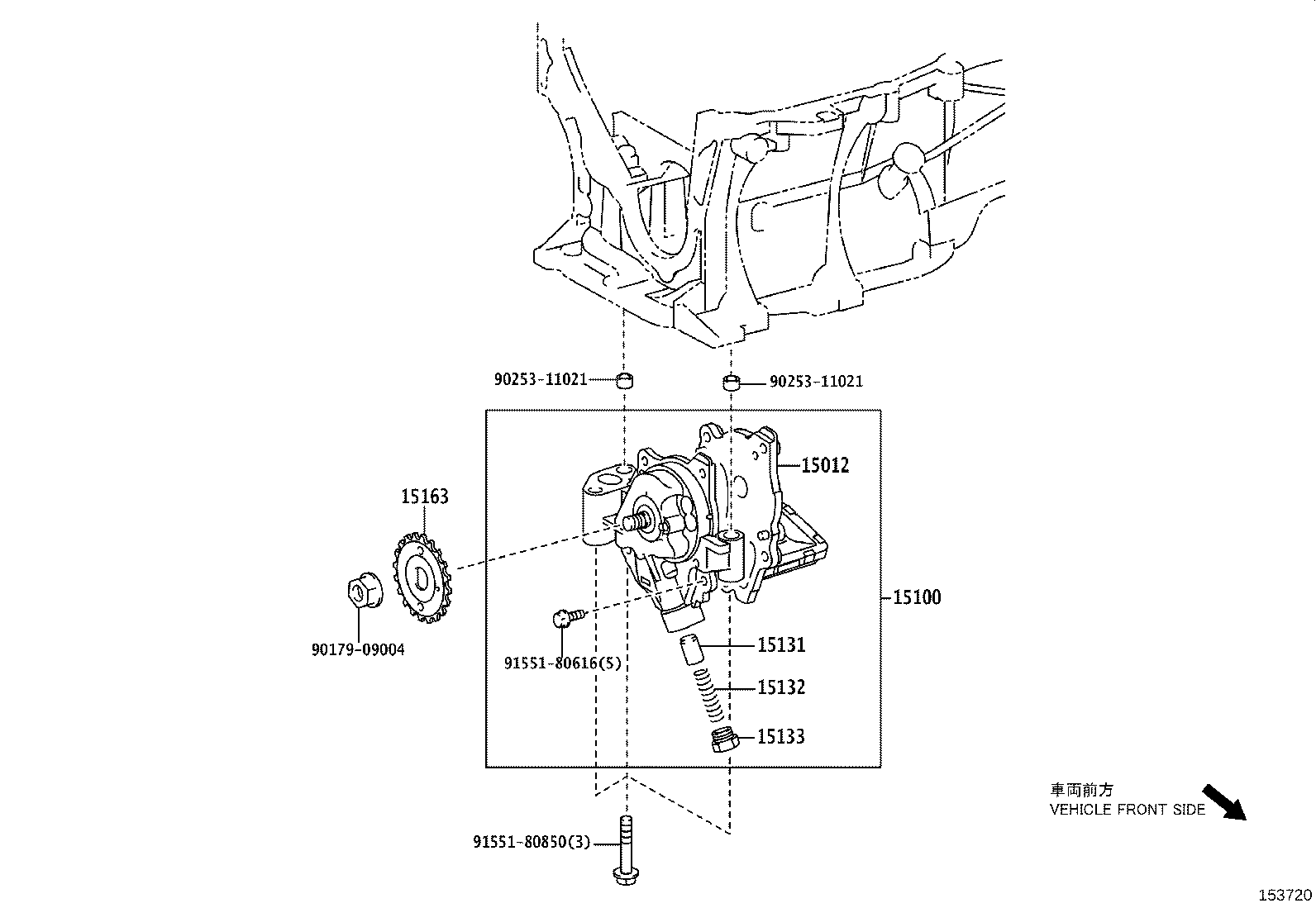

Engine Oil Pump
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 13507A | Chain Sub-assy, Oil Pump Drive |
| 13549A | Plate, Chain Tensioner |
| 13565A | Spring, Chain Damper |
| 15012 | Cover Sub-assy, Oil Pump |
| 15100 | Pump Assy, Oil |
| 15104 | Strainer Sub-assy, Oil |
| 15131 | Valve, Oil Pump Relief |
| 15132 | Spring, Oil Pump Relief Valve |
| 15133 | Plug, Oil Pump Relief Valve |
| 15147 | Gasket, Oil Strainer |
| 15163 | Gear, Oil Pump Drive Shaft |
| 15163C | Sprocket, Oil Pump Drive Shaft |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
