Toyota Prius

2022-12 → present · chassis MXWH61,ZVW60 · catalogue 222250 · Europe

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

11 part groups · 2 illustrations

Illustrations

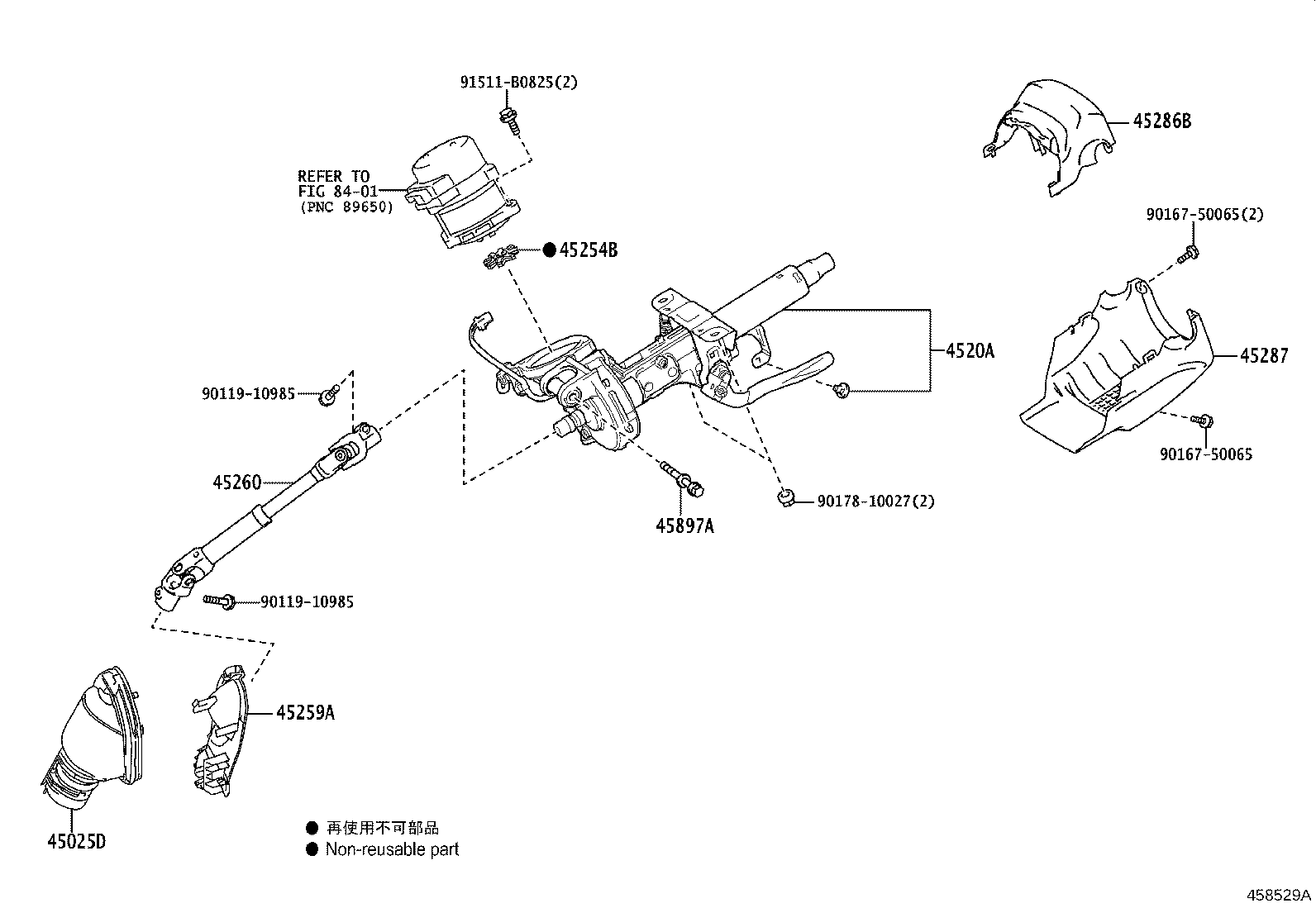

Figure 458530A 458530A 2022-12 → — Figure 458529A 458529A 2022-12 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
4520A Column Sub-assy, Electric Power Steering
45254B Damper, Electric Power Steering Motor Shaft
45259A Sheet, Column Hole Cover Silencer
45260 Shaft Assy, Steering Intermediate, NO.2
45271 Clamp, Steering Column, Upper
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45897 Bolt, Steering Lock Set
45897A Bolt, Tilt Steering Pawl Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
