Toyota Prius

2022-12 → present · chassis MXWH61,ZVW60 · catalogue 222250 · Europe

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

10 part groups · 2 illustrations

Illustrations

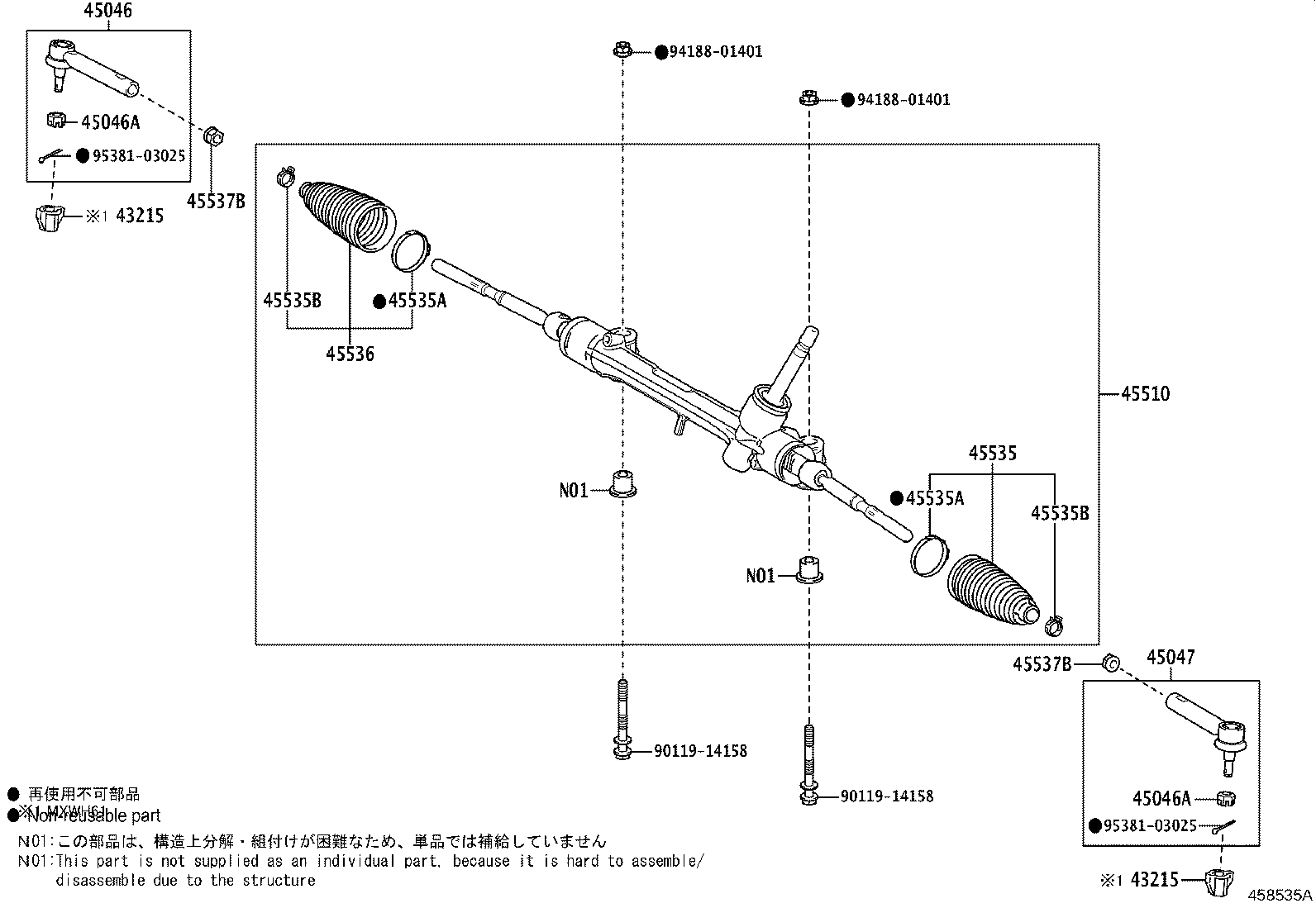

Figure 458533A 458533A 2022-12 → — Figure 458535A 458535A 2022-12 → —

Part groups

PNCDescription
43215 Seal, Steering Knuckle
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45047 End Sub-assy, Tie Rod, LH
45510 Gear Assy, Steering
45535 Boot, Steering Rack, NO.1
45535A Clamp(FOR STEERING RACK BOOT)
45535B Clip(FOR STEERING RACK BOOT)
45536 Boot, Steering Rack, NO.2
45537B Nut, Rack End Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
