Toyota Prius

2022-12 → present · chassis MXWH61,ZVW60 · catalogue 222250 · Europe

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

18 part groups · 2 illustrations

Illustrations

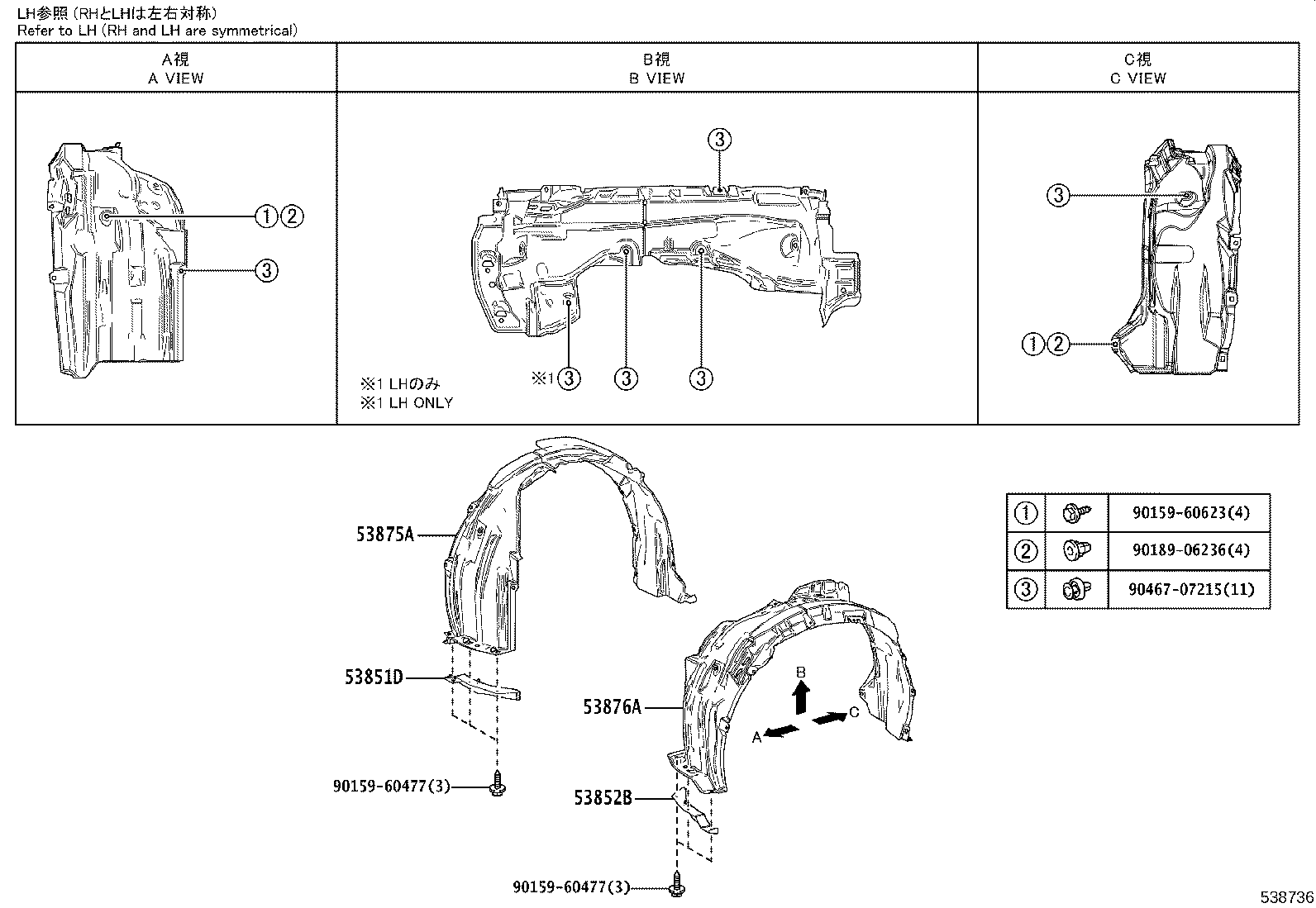

Figure 538735A 538735A 2022-12 → — Figure 538736 538736 2022-12 → —

Part groups

PNCDescription
53153B Guide, Front Side Air
53154E Guide, Front Side Air, NO.2
53301 Hood Sub-assy
53336A Bracket, Hood Stay
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53813D Extension, Front Fender
53827K Protector, Front Fender Side Panel, RH
53828B Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53857 Retainer, Front Wheel Opening Extension, RH
53858 Retainer, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
53882F Seal, Front Fender
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
