Toyota Prius

2022-12 → present · chassis MXWH61,ZVW60 · catalogue 222250 · Europe

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

14 part groups · 2 illustrations

Illustrations

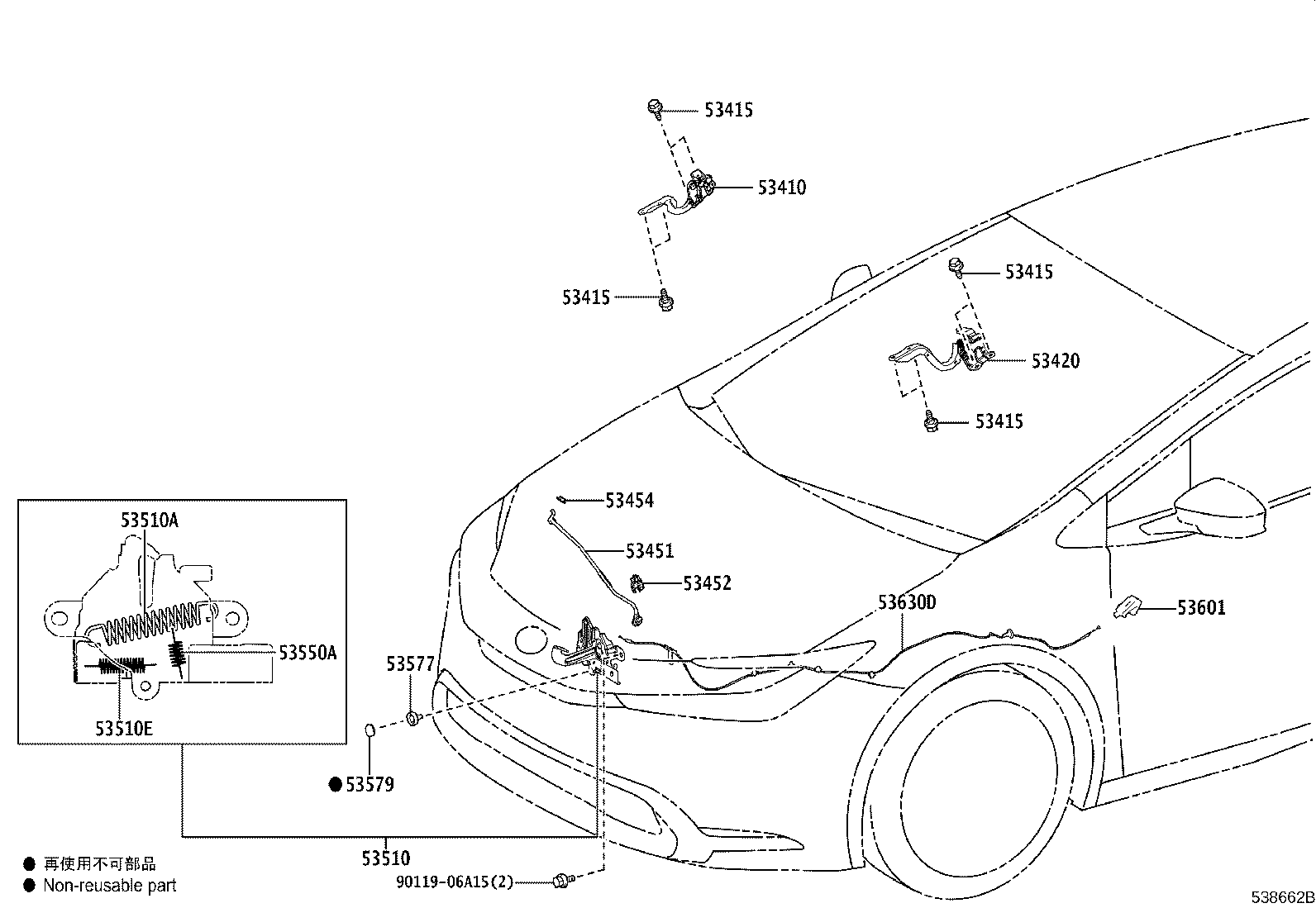

Figure 538661B 538661B 2022-12 → — Figure 538662B 538662B 2022-12 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53415 Bolt, Hood Hinge
53420 Hinge Assy, Hood, LH
53451 Rod, Hood Support
53452 Holder, Hood Stay
53454 Clip, Hood Support Rod
53510 Lock Assy, Hood
53510A Spring, Tension(FOR HOOD LOCK)
53510E Spring, Tension(FOR HOOD LOCK)
53550A Spring, Torsion(FOR HOOD LOCK HOOK)
53577 Bolt, Hood Lock
53579 Cap, Hood Lock Nut
53601 Lever Sub-assy, Hood Lock Control
53630D Set, Cable & Lever, Hoodlock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
