Toyota Prius

2022-12 → present · chassis MXWH61,ZVW60 · catalogue 222250 · Europe

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

6 part groups · 2 illustrations

Illustrations

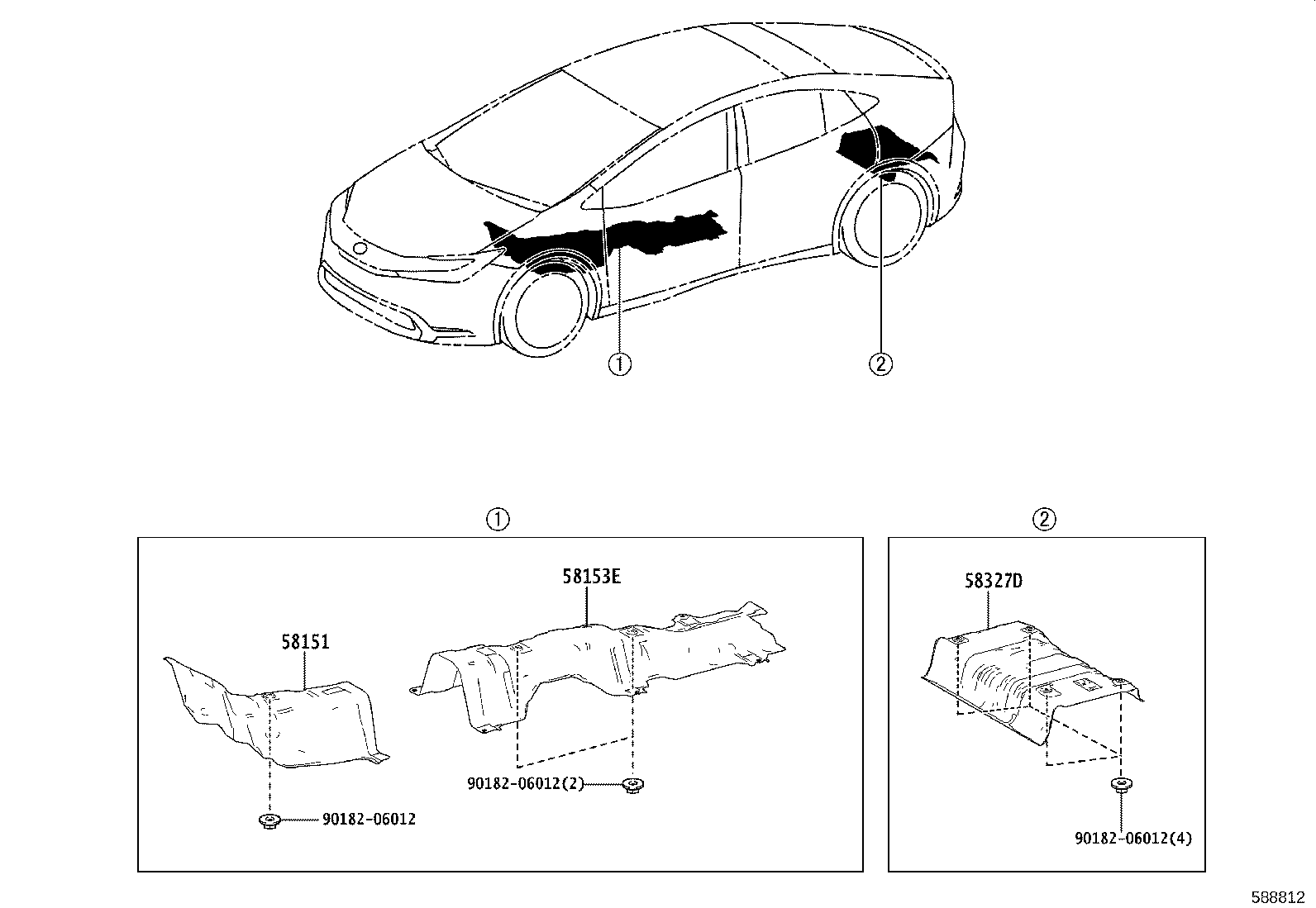

Figure 588811A 588811A 2022-12 → — Figure 588812 588812 2022-12 → —

Part groups

PNCDescription
58043B Insulator Sub-assy, Center Floor Heat, NO.1
58151 Insulator, Front Floor Heat, NO.1
58153E Insulator, Front Floor Heat, NO.2
58327D Insulator, Main Muffler Heat, Upper
58346D Bracket, Rear Floor Heat Insulator, NO.2
58368A Cushion(FOR INSULATOR HEAT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
