Toyota Prius

2022-12 → present · chassis MXWH61,ZVW60 · catalogue 222250 · Europe

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

11 part groups · 4 illustrations

Illustrations

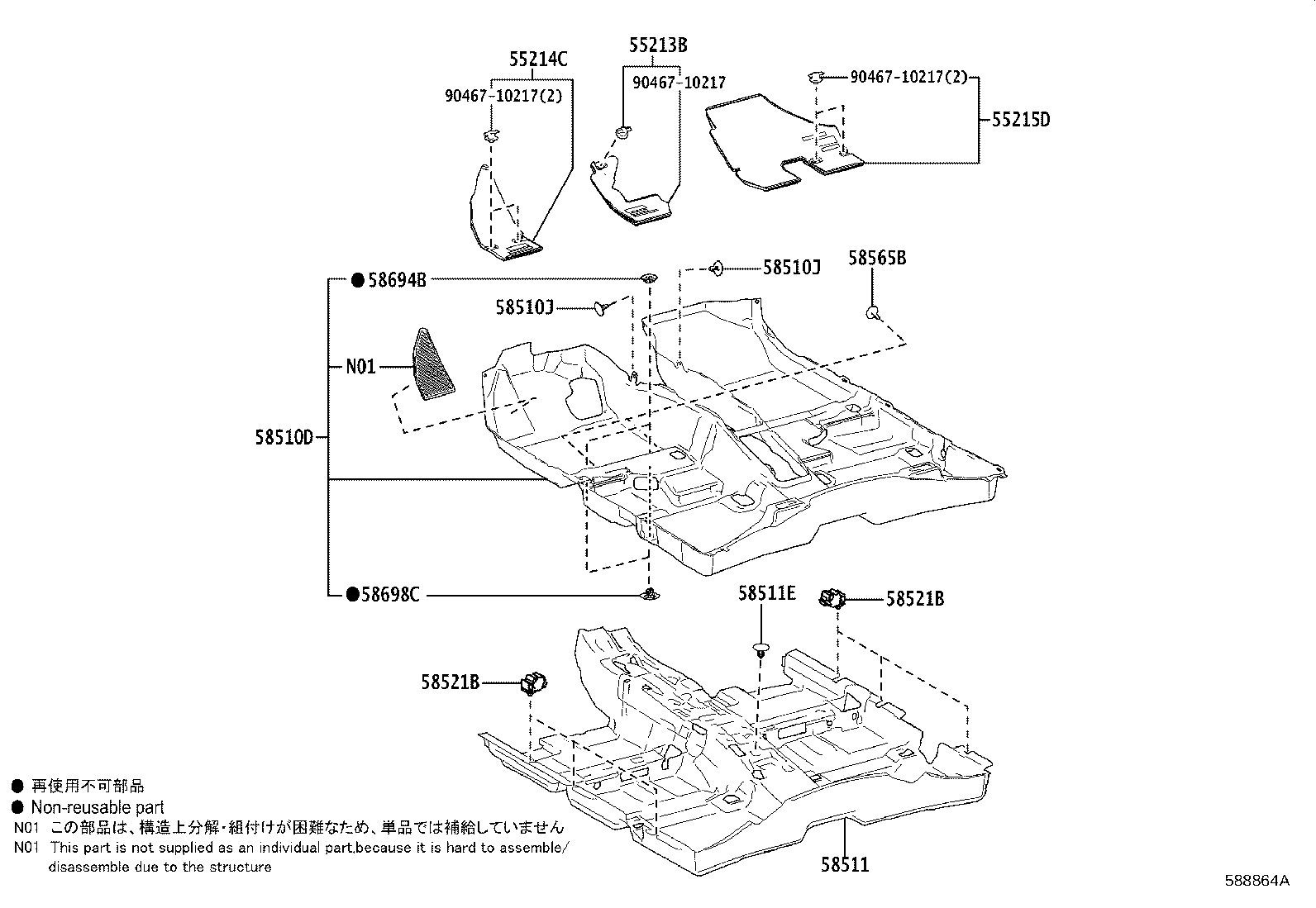

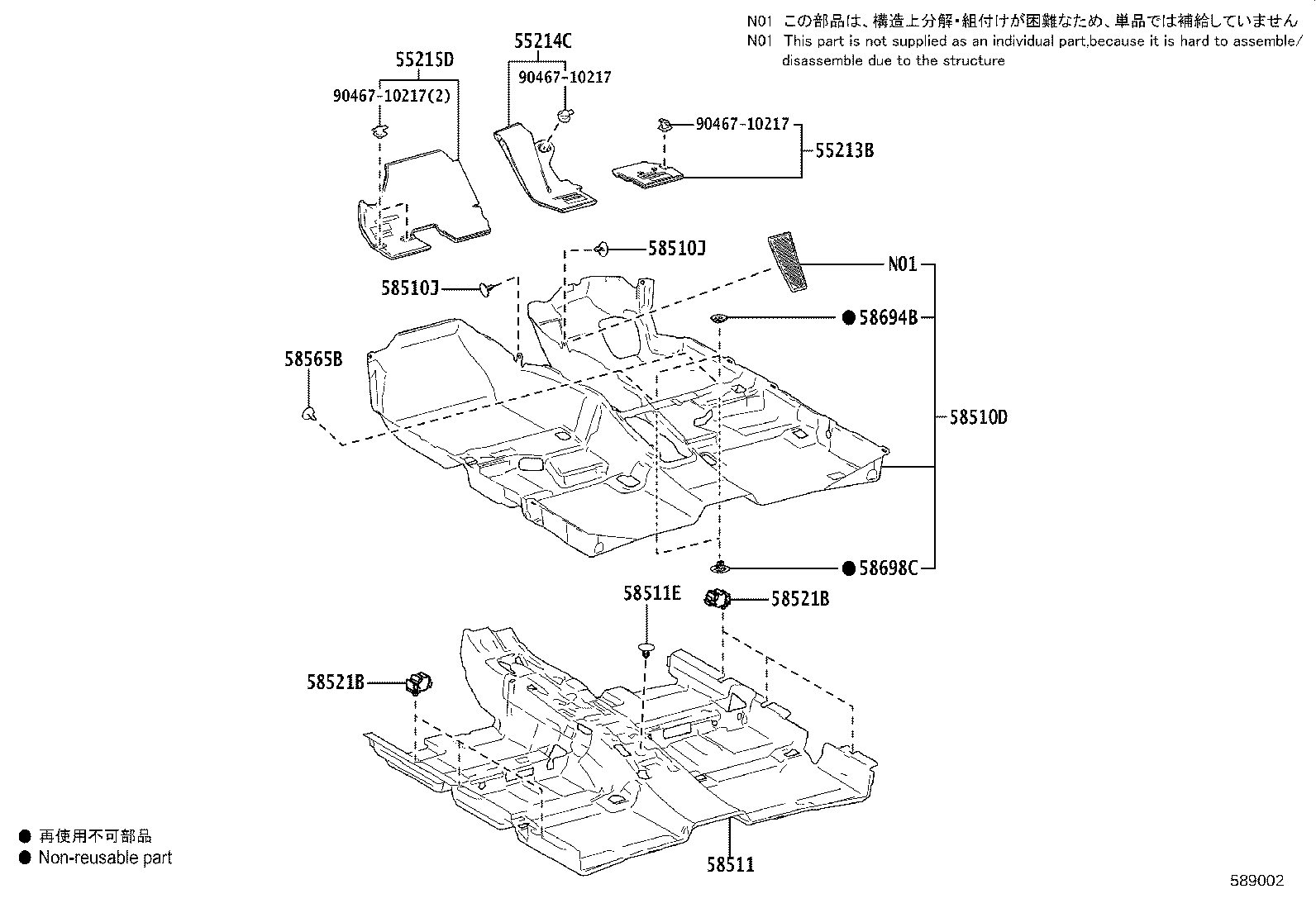

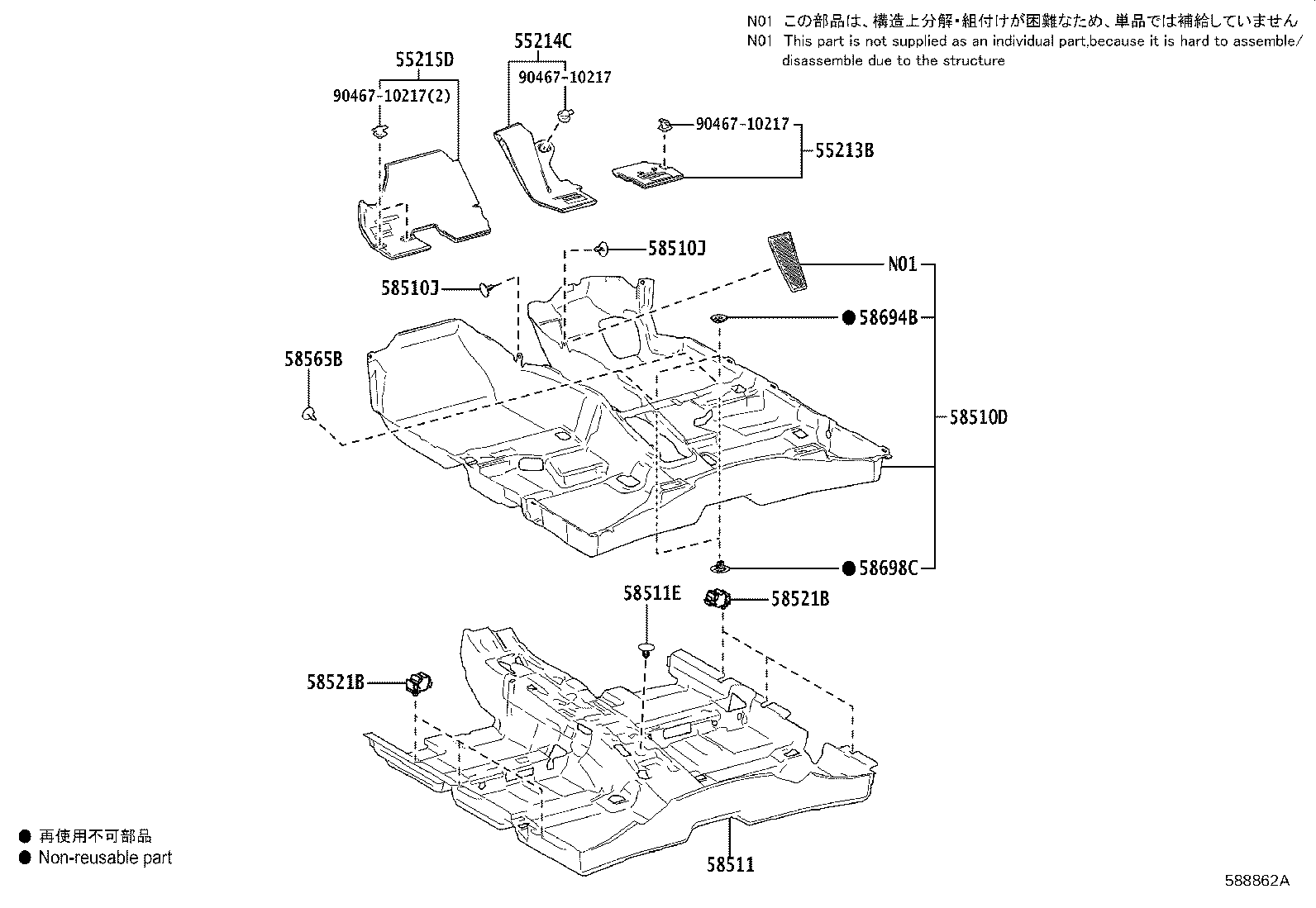

Figure 588863A 588863A 2022-12 → — Figure 589002 589002 2022-12 → — Figure 588864A 588864A 2023-03 → — Figure 588862A 588862A 2023-03 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58510D Carpet Assy, Floor, Front
58510J Clip (FOR FLOOR CARPET)
58511 Mat, Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58521B Hook, Floor Carpet
58565B Clip
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
