Toyota Prius

2022-12 → present · chassis MXWH61,ZVW60 · catalogue 222250 · Europe

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

16 part groups · 4 illustrations

Illustrations

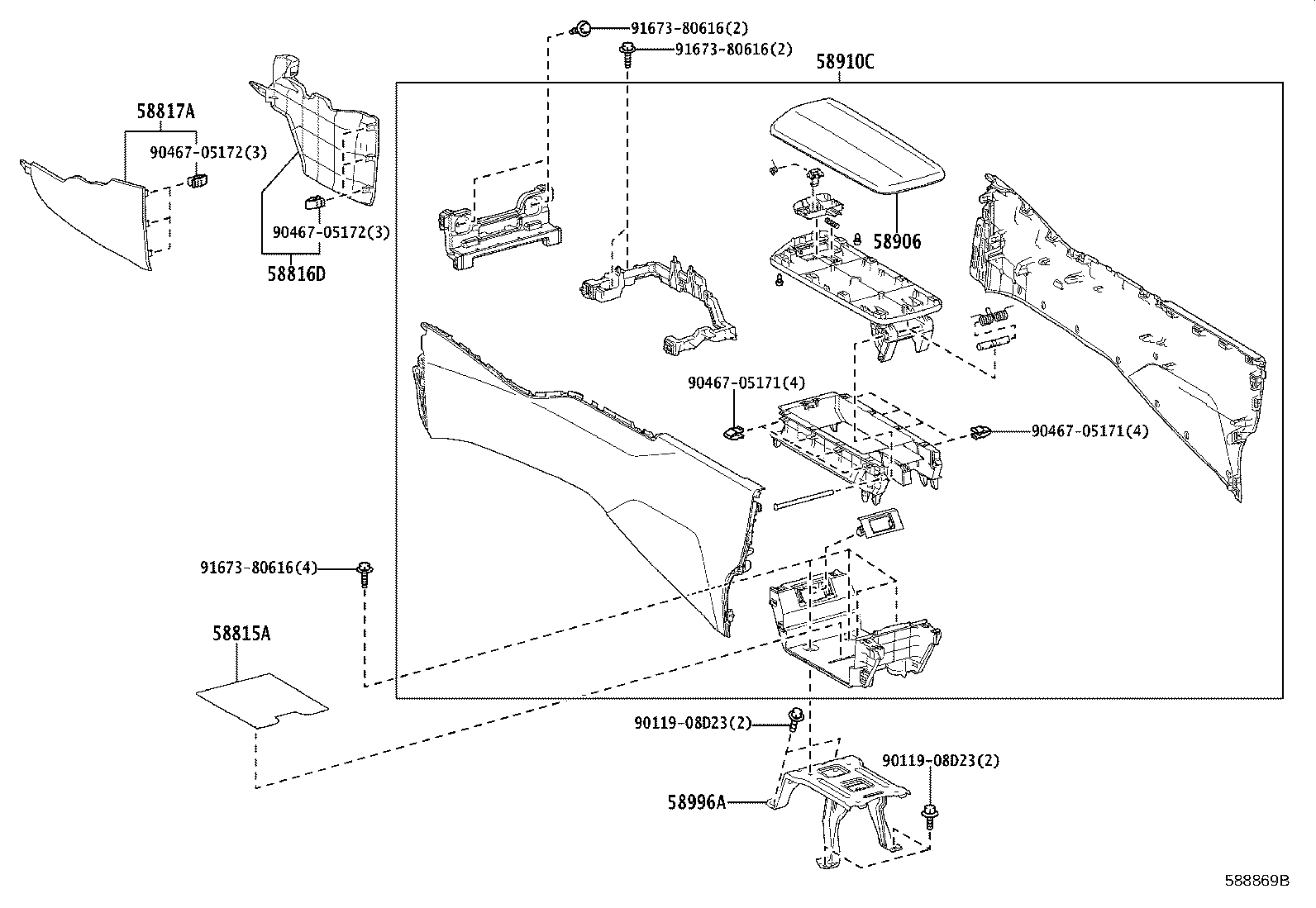

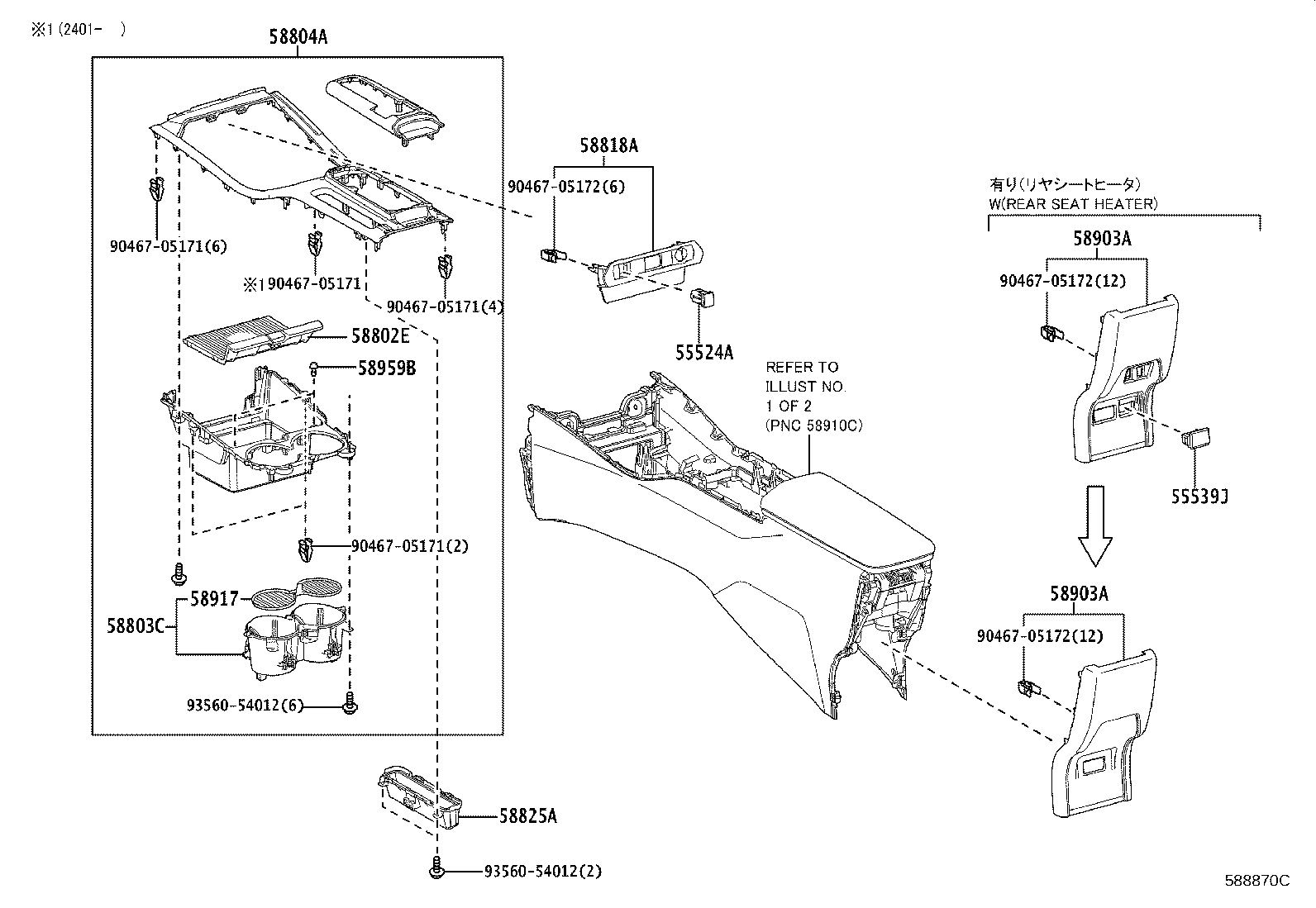

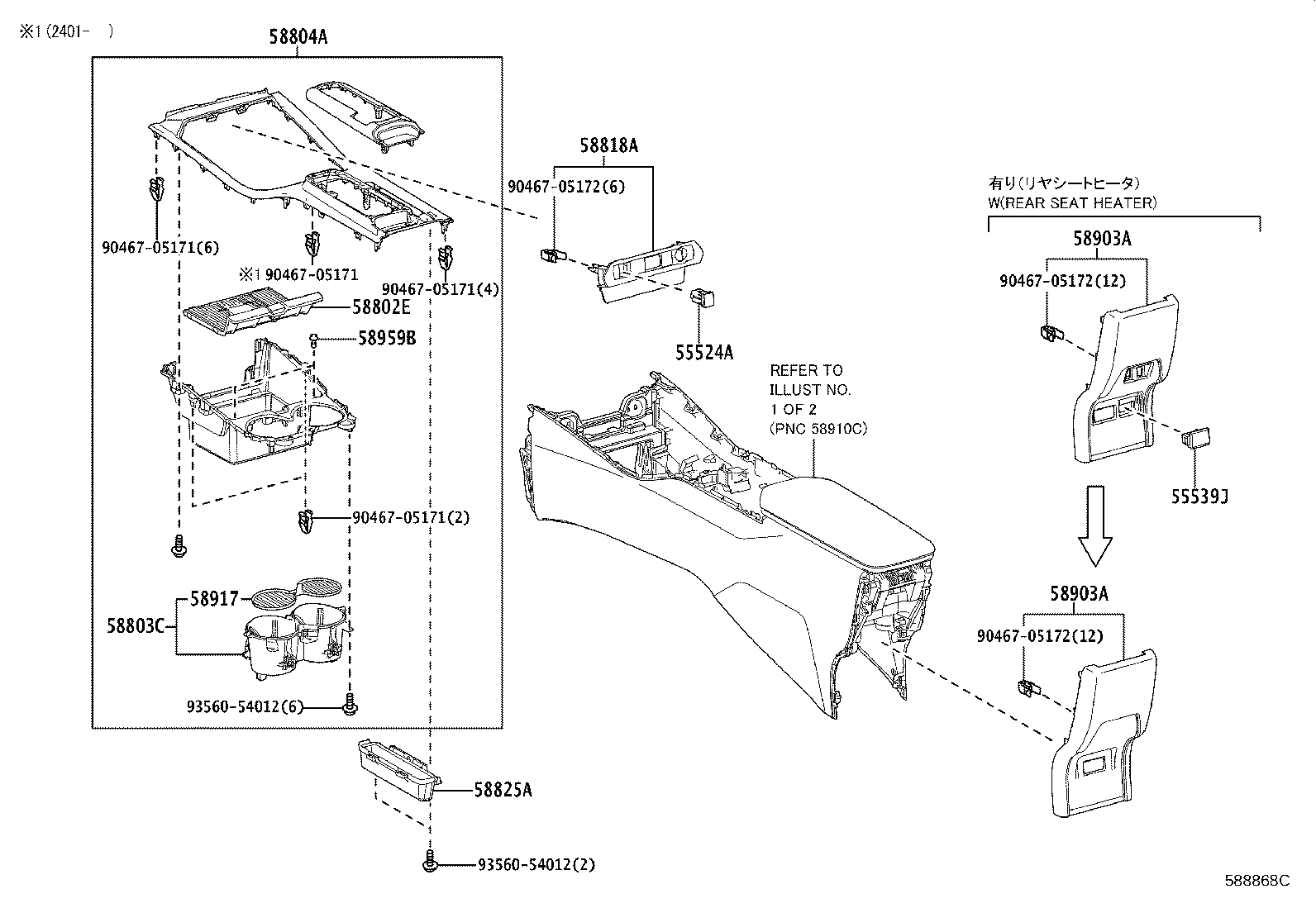

Figure 588867B 588867B 2022-12 → — Figure 588868C 588868C 2022-12 → — Figure 588869B 588869B 2022-12 → — Figure 588870C 588870C 2022-12 → —

Part groups

PNCDescription
55524A Cover, Switch Base Hole
55539J Cover, Spare Switch Hole
58802E Box Sub-assy, Console, Front
58803C Box Sub-assy, Console Cup Holder
58804A Panel Sub-assy, Console, Upper
58815A Carpet, Console Box
58816D Insert, Console Box, Front NO.1
58817A Insert, Console Box, Front NO.2
58818A Cover, Console Box, FR
58825A Pocket, Console Box
58903A Panel Sub-assy, Console Rear End
58906 Door Sub-assy, Upper Console
58910C Box Assy, Console, Rear
58917 Mat, Box Bottom, NO.2
58959B Cushion, Console Compartment Door
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
