Toyota Prius

2022-12 → present · chassis MXWH61,ZVW60 · catalogue 222250 · Europe

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

12 part groups · 2 illustrations

Illustrations

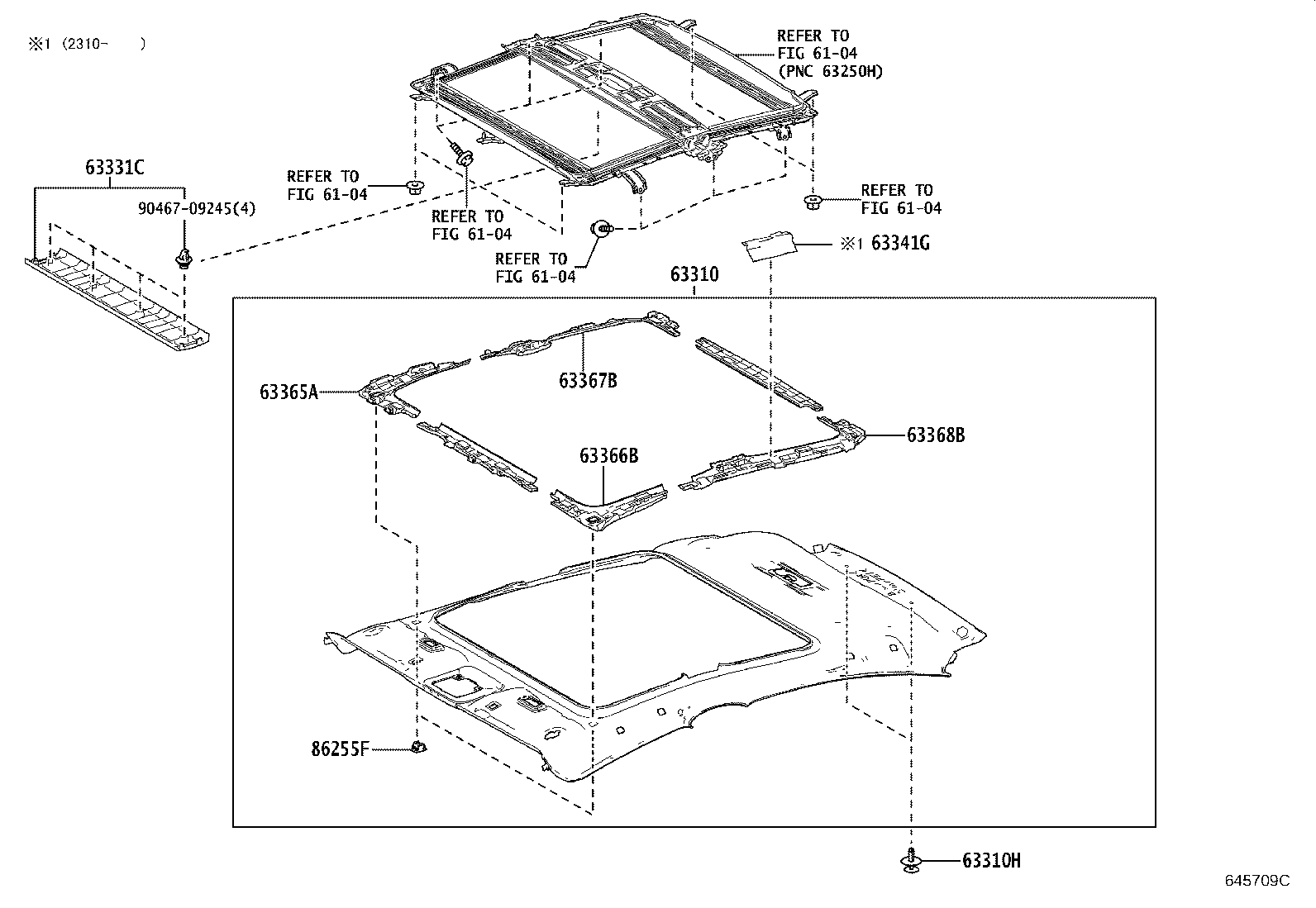

Figure 645708A 645708A 2022-12 → — Figure 645709C 645709C 2022-12 → —

Part groups

PNCDescription
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63331C Protector, Roof Center Reinforcement
63341 Pad, Roof Silencer, NO.1
63341G Pad, Roof Silencer
63342 Pad, Roof Silencer, NO.2
63365A Plate, Roof Headlining Set
63366B Plate, Roof Headlining Set, LH
63367B Plate, Roof Headlining Set, NO.2 RH
63368B Plate, Roof Headlining Set, NO.2 LH
63398 Plate, Roof Headlining Support
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
